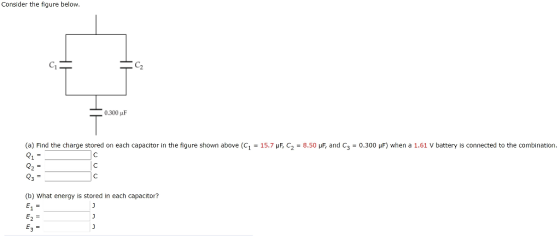

Consider the figure below. C2 0.300F battery is connected to the combination. (a) Find the charge...

Question

Question

Consider the figure below. C2 0.300F battery is connected to the combination. (a) Find the charge stored on each capacitor in

science physics

Answer 1

Answer #1

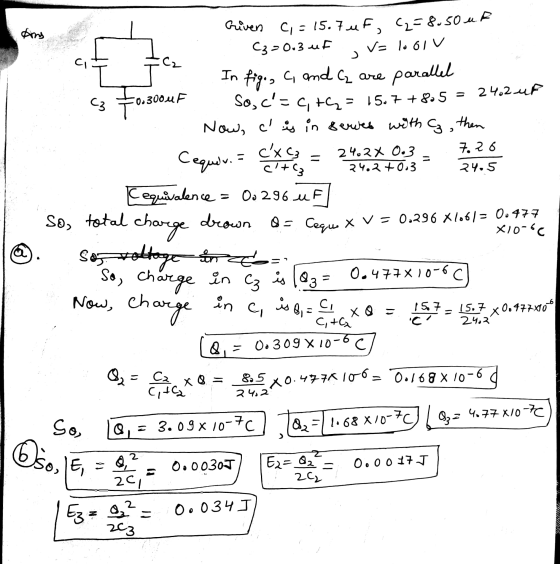

(=8.50 u R oms . 0.3004 C3 Griven C,= 15.7 uf, C3=0.3 uf V= lo 61 v In figo, C, and C are parallel 24.2 uf So, c=C, t = 15.7

Answer 2

Similar Homework Help Questions

Consider the figure below. C2 0.300 uF (a) Find the charge stored on each capacitor in...

Consider the figure below. C2 0.300 uF (a) Find the charge stored on each capacitor in the figure shown above (C1 = 12.5 pF, C2 = 9.78 pF, and C3 = 0.300 pF) when a 1.65 V battery is connected to the combination Q1 = Q2 = Q3 = с C (b) What energy is stored in each capacitor? E1 = E2 = J ]
Consider the figure below. C1 0.300 μF (a) Find the charge stored on each capacitor in...

Consider the figure below. C1 0.300 μF (a) Find the charge stored on each capacitor in the figure shown above (C1 = 18.7 μF, C2 = 8.72 μF, and C3 = 0.300 μF) when a 1.69 V battery is connected to the combination e. (b) What energy is stored in each capacitor? E1 = E2 =
a.) Find the charge stored on each capacitor in thefigure shown above(C1=11.1 uF, C2= 9.62uF)...

a.) Find the charge stored on each capacitor in the figure shown above(C1=11.1 uF, C2= 9.62uF) When a 1.57 V battery is connected to the combination.Q1=Q2=Q3=b.) What energy is stored in each capacitor?E1=E2=E3=

Consider the figure below

Consider the figure below. (a) Find the charge stored on each capacitor in the figure shown above (C1 = 10.6 μF, C2 = 8.98 μF, and C3 = 0.300 μF) when a 1.98 V battery is connected to the combination. (b) What energy is stored in each capacitor?
(a) Find the charge (in C) stored on each capacitor in the figure below (C =...

(a) Find the charge (in C) stored on each capacitor in the figure below (C = 10.0 pF, C2 = 1.50 pF) when a 1.52 V battery is connected to the combination. CH C2 0.30 uF 066e-6 C1 C2 0.300 uF capacitor хс X C 374e-6 44e-6 с 다. (b) What energy (in )) is stored in each capacitor? C1 C2 ] 0.300 uF capacitor ] Three point charges 91, 92, and 43 are situated at three corners of a...
Consider the figure below. (Due to the nature of this problem, do not use rounded intermediate...

Consider the figure below. (Due to the nature of this problem, do not use rounded intermediate values in your calculations—including answers submitted in WebAssign.) C2 0.300 F (a) Find the charge stored on each capacitor in the figure shown above (C = 13.1 pF, C2 = 9.48 pF) when a 1.57 V battery is connected to the combination. Q = с (b) What energy is stored in each capacitor? J ]
