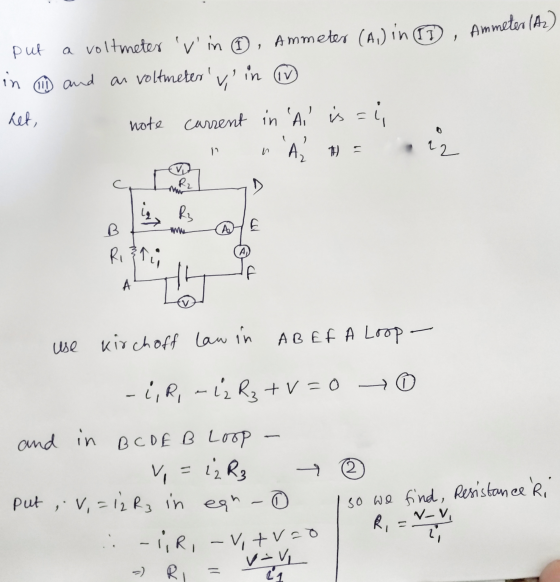

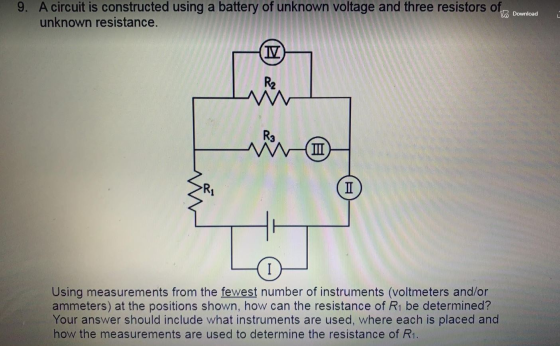

9. A circuit is constructed using a battery of unknown voltage and three resistors of unknown...
A circuit is constructed with five resistors and a battery as shown. The battery voltage is...
A circuit is constructed with five resistors and a battery as shown. The battery voltage is V = 12 V. The values for the resistors are: R1 = 64 Ω, R2 = 110 Ω, R3 = 131 Ω, and R4 = 135 Ω. The value for RX is unknown, but it is known that I4, the current that flows through resistor R4, is zero. 1) What is I1, the magnitude of the current that flows through the resistor R1? A...
A circuit is constructed with five resistors and a battery as shown. The battery voltage is...
A circuit is constructed with five resistors and a battery as shown. The battery voltage is V 12 V. The values for the resistors are: R148 , R2- 128 Ω, R3-127 Ω, and R4-107 Ω. The value for Rx is unknown, but it is known that 14, the current that flows through resistor R4, is zero 1) What is 1, the magnitude of the current that flows through the resistor R1? Submit 2) What is V2, the magnitude of the...
A circuit is constructed with five resistors and a battery as shown. The values for the...
A circuit is constructed with five resistors and a battery as shown. The values for the resistors are: R1 = R5 = 43 A, R2 = 121 , R3 = 64, and R4 = 1300. The battery voltage is V = 12 V. R1 b 4 Ra R5 1) What is Rab, the equivalent resistance between points a and b? 76.92 Submit 2) What is Rac, the equivalent resistance between points a and c? 119.9 Submit 3) What is 15,...
A circuit is constructed with five resistors and one real battery as shown above right. We...
A circuit is constructed with
five resistors and one real battery as shown above right. We model.
The real battery as an ideal emf V = 12 V in series with an
internal resistance r as shown above left. The values for the
resistors are: R1 = R3 = 22 Ω, R4 = R5 = 82 Ω and R2 = 147 Ω. The
measured voltage across the terminals of the batery is Vbattery =
11.6 V.
A circuit is constructed...
A circuit is constructed with five resistors and a battery as shown. The values for the...
A circuit is constructed with five resistors and a battery as shown. The values for the resistors are: R1-R5-580, R2-1310, R3-84?, and R4-89 ?. The battery voltage is V- 12 V Ri b R2 Rs 1) What is Rab, the equivalent resistance between points a and b? Submit You currently have 2 submissions for this question. Only 10 submission are allowed. You can make 8 more submissions for this question. 2) What is Rac, the equivalent resistance between points a...
A circuit is constructed with five resistors and one real battery as shown above right. We...
A circuit is constructed with five resistors and one real battery as shown above right. We model. The real battery as an ideal emf V = 12 V in series with an internal resistance r as shown above left. The values for the resistors are: R = R3 = 40 N, R4 = Rs = 80 and R2 = 142 N. The measured voltage across the terminals of the batery is Vbattery = 11.41 V. I R R R R4...
21.8- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery...
21.8- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 12.0 V and the resistance of the resistors, R1, R2 and R3 are 6.00 Ω, 12.0 Ω and 18.0 Ω respectively, what is the power output of the resistor R1? R1 R2 R3 Submit Answer Tries 0/10 What is the power output of the resistor R2? Submit Answer Tries 0/10 What is the power output of the resistor R3? Submit Answer Tries 0/10
A circuit is constructed with five resistors and one real battery as shown above right. We model. The real battery as an ideal emf V =12 V in series with an internal resistance r as shown above left.
A circuit is constructed with five resistors and one real battery as shown above right. We model. The real battery as an ideal emf V = 12 V in series with an internal resistance r as shown above left. The values for the resistors are: R1 = R3 = 24Ω, R4 = R5 = 112 Ω and R2 = 126 Ω. The measured voltage across the terminals of the batery is Vbattery = 11.73 V.2) What is r, the internal...
A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown....
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1
= R2
= 67 ?, R3
= 96 ? and R4
= 77 ?. The capacitance is C = 48 ?F and the battery voltage is V =
24 V.
Consider the circuit above, with R5
= 67 ? in series with the capacitor. Once again, the switch has
been open for a long time when at...
21.7- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery...
21.7- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 10.0 Ω and 24.0 Ω respectively what is the current through the resistor R? R1 R2 Ri Submit Answer Tries 0/10 What is the current through the resistor R2? Submit Answer Tries o/1o What is the current through the resistor R3? Submit Answer Tries 0/10
A circuit is constructed with five resistors and a battery as shown. The battery voltage is V 12 V. The values for the resistors are: R148 , R2- 128 Ω, R3-127 Ω, and R4-107 Ω. The value for Rx is unknown, but it is known that 14, the current that flows through resistor R4, is zero 1) What is 1, the magnitude of the current that flows through the resistor R1? Submit 2) What is V2, the magnitude of the...
A circuit is constructed with five resistors and a battery as shown. The values for the resistors are: R1 = R5 = 43 A, R2 = 121 , R3 = 64, and R4 = 1300. The battery voltage is V = 12 V. R1 b 4 Ra R5 1) What is Rab, the equivalent resistance between points a and b? 76.92 Submit 2) What is Rac, the equivalent resistance between points a and c? 119.9 Submit 3) What is 15,...
A circuit is constructed with
five resistors and one real battery as shown above right. We model.
The real battery as an ideal emf V = 12 V in series with an
internal resistance r as shown above left. The values for the
resistors are: R1 = R3 = 22 Ω, R4 = R5 = 82 Ω and R2 = 147 Ω. The
measured voltage across the terminals of the batery is Vbattery =
11.6 V.
A circuit is constructed...
A circuit is constructed with five resistors and a battery as shown. The values for the resistors are: R1-R5-580, R2-1310, R3-84?, and R4-89 ?. The battery voltage is V- 12 V Ri b R2 Rs 1) What is Rab, the equivalent resistance between points a and b? Submit You currently have 2 submissions for this question. Only 10 submission are allowed. You can make 8 more submissions for this question. 2) What is Rac, the equivalent resistance between points a...
A circuit is constructed with five resistors and one real battery as shown above right. We model. The real battery as an ideal emf V = 12 V in series with an internal resistance r as shown above left. The values for the resistors are: R = R3 = 40 N, R4 = Rs = 80 and R2 = 142 N. The measured voltage across the terminals of the batery is Vbattery = 11.41 V. I R R R R4...
21.8- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 12.0 V and the resistance of the resistors, R1, R2 and R3 are 6.00 Ω, 12.0 Ω and 18.0 Ω respectively, what is the power output of the resistor R1? R1 R2 R3 Submit Answer Tries 0/10 What is the power output of the resistor R2? Submit Answer Tries 0/10 What is the power output of the resistor R3? Submit Answer Tries 0/10
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1
= R2
= 67 ?, R3
= 96 ? and R4
= 77 ?. The capacitance is C = 48 ?F and the battery voltage is V =
24 V.
Consider the circuit above, with R5
= 67 ? in series with the capacitor. Once again, the switch has
been open for a long time when at...
21.7- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 10.0 Ω and 24.0 Ω respectively what is the current through the resistor R? R1 R2 Ri Submit Answer Tries 0/10 What is the current through the resistor R2? Submit Answer Tries o/1o What is the current through the resistor R3? Submit Answer Tries 0/10
