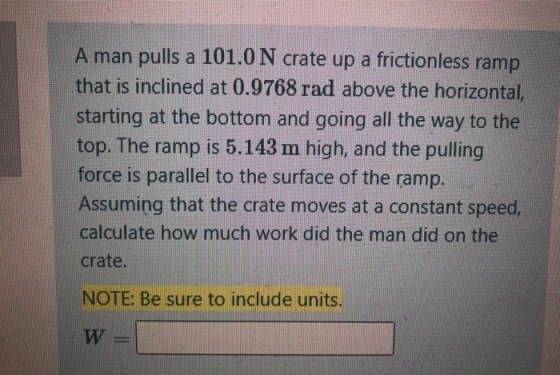

A man pulls a 101.0 N crate up a frictionless ramp that is inclined at 0.9768...

Question

Question

science physics

Answer 1

Answer #1

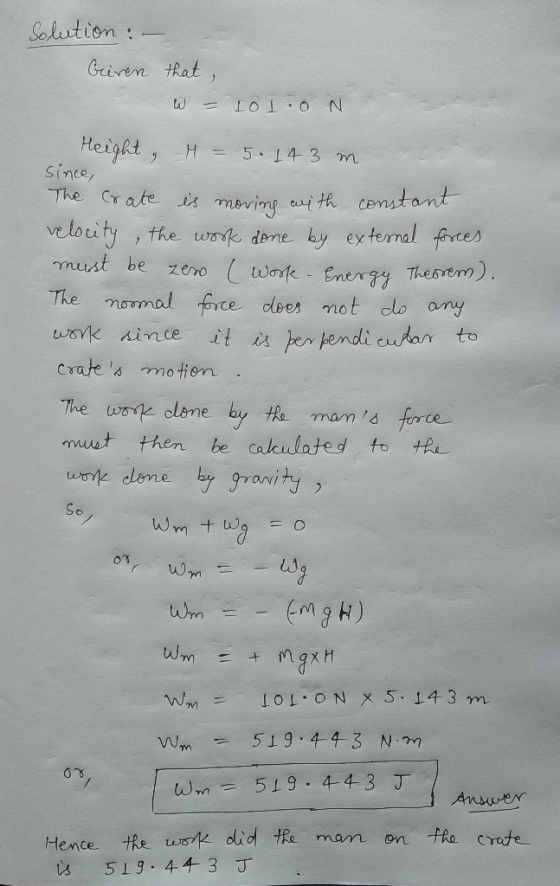

Solution: Given that, W = 101.0 N The Height, H-5.143 m. since, The crate is moving with constant velocity, the work done by

Answer 2
