Question

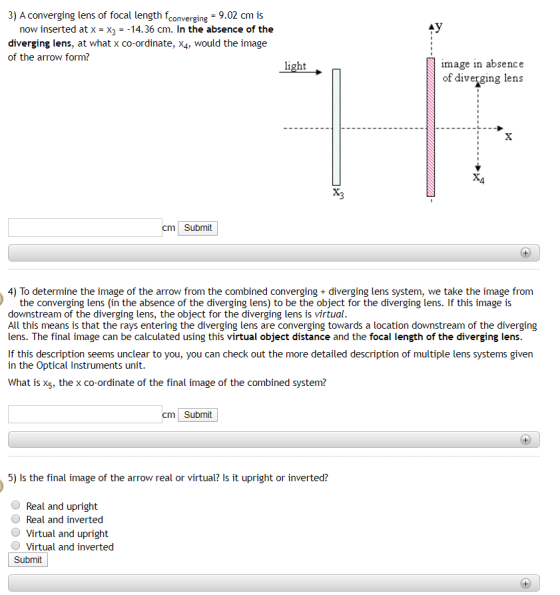

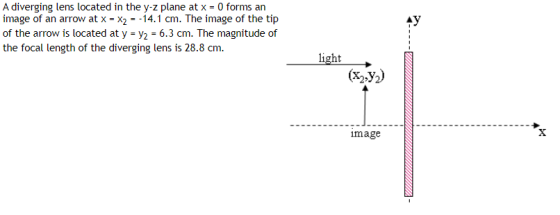

A diverging lens located in the y-z plane at x = 0 forms an image of an arrow at x = x2 = -14.1 cm. The image of the tip of tAy 3) A converging lens of focal length fconverging = 9.02 cm is now inserted at x = x3 = -14.36 cm. In the absence of the di

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

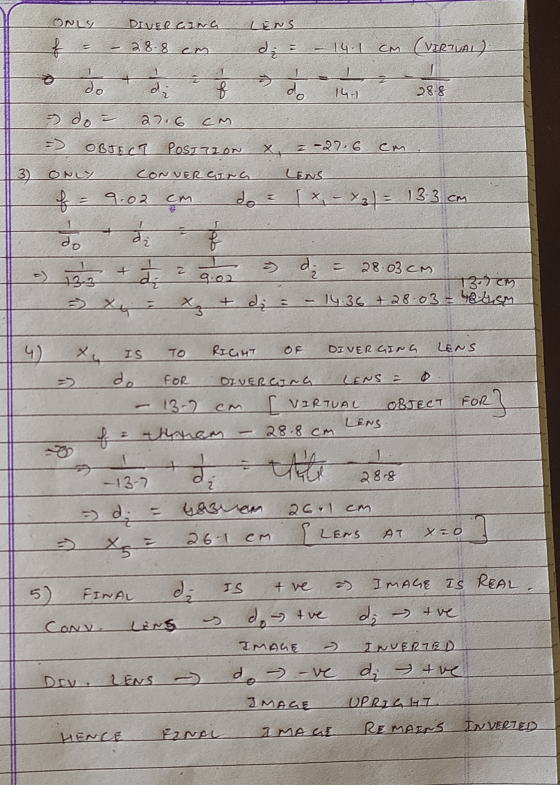

Answer #1

+ve sign of di implies real image and -ve sign implies virtual image.

Same sign of do and di implies inverted image while opposite signs of do and di implies upright image.

0 0
