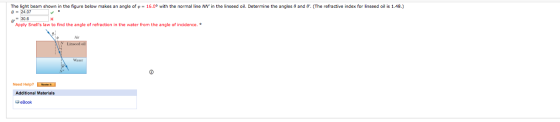

The light beam shown in the figure below makes an angle of = 15.0° with the normal line NN in the linseed oil. Determine the

science physics

Answer 1

Answer #1

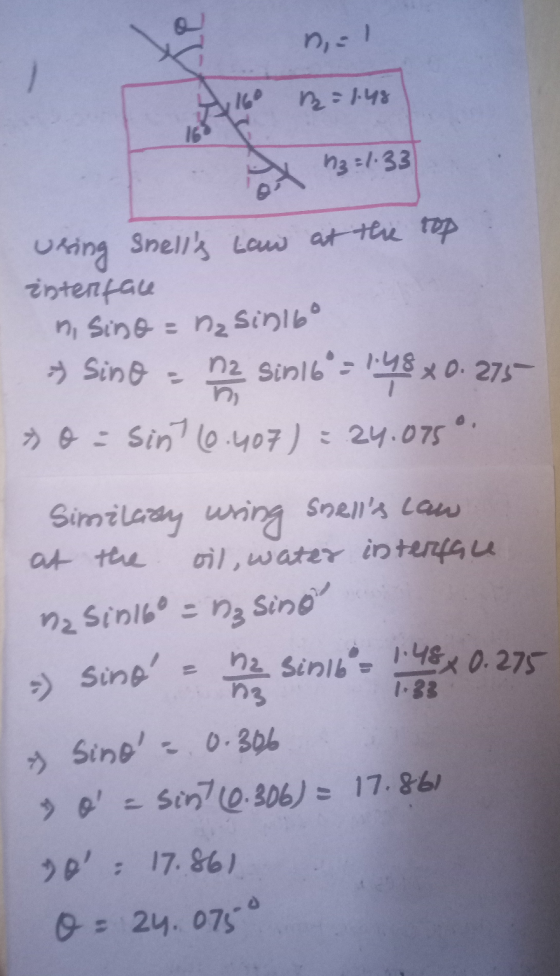

n=1 n = 1.48 n3=1.33 uring shells Law at the top interface ni sino = nz sin16° - Sino = n2 sinloº=1:48 x 0.275 » o = sint 16

Answer 2

Similar Homework Help Questions

The light beam shown in the figure below makes an angle of alpha = 21.5 °...

The light beam shown in the figure below makes an angle of alpha = 21.5 ° with the normal line NN' in the linseed oil. Determine the angle theta. (The refractive index for linseed oil is 1.48.) Determine the angle theta'. Air IN Linseed oil --- ha Water Zoo
The figure shows a refracted light beam in linseed oil making an angle of = 27.4°...

The figure shows a refracted light beam in linseed oil making an angle of = 27.4° with the normal line NN'. The index of refraction of linseed oil is 1.48. Air N Linseed oil Water (a) Determine the angle 0. (b) Determine the angle e'.
The figure shows a refracted light beam in linseed oil making an angle of d =...

The figure shows a refracted light beam in linseed oil making an angle of d = 15.6° with the normal line NN'. The index of refraction of linseed oil is 1.48. Air Linseed oil Ņ Water (a) Determine the angle 0. (b) Determine the angle e'.

The index of refraction for red light in water is 1.331 and that for blue light...

The index of refraction for red light in water is 1.331 and that for blue light is 1.340. If a ray of white light enters the water at an angle of incidence of 61.55o, what are the underwater angles of refraction for the blue and red components of the light? (Enter your answers to at least two decimal places.) (a) blue component (b) red component Need Help? Read It The light beam shown in the figure below makes an angle...
The figure shows a refracted light beam in linseed oil making an angle of ϕ =...

The figure shows a refracted light beam in linseed oil making an angle of ϕ = 30.2° with the normal line NN'. The index of refraction of linseed oil is 1.48. (a) Determine the angle θ. (b) Determine the angle θ'.
please answer as soon as possible Air N Linseed oil 10. Write down two conditions for...

please answer as soon as possible Air N Linseed oil 10. Write down two conditions for total internal reflection. The figure shows a refracted light beam in linseed oil making an angle of $ = 30.6° with the normal line NN'. The index of refraction of linseed oil is 1.48. (Refractive index of water -1.33, Refractive index of air=1). Calculate following. (2+2+2+2). (a) Determine the angle 0. Water - > (b) Determine the angle '. (c) Calculate critical angle o....

The figure below shows a refracted light beam in oil making an angle of a =...

The figure below shows a refracted light beam in oil making an angle of a = 21.0° with the normal line NN'. The index of refraction of the oil is 1.47. Air Water (a) Determine the angle 0. (b) Determine the angle O'.
#2 2. -/2 points SerPSE10 34.4.OP.006.MI. Ask Your My Notes 27.6* with the normal line NN"....

#2 2. -/2 points SerPSE10 34.4.OP.006.MI. Ask Your My Notes 27.6* with the normal line NN". The index of refraction of linseed oil is 1.48. The figure shows a refracted light beam in linseed oil making an angle of Air Linseed oil Water (a) Determine the angle 0. (b) Determine the angle 0 Need Help?
From the figure, we realize that the upper and lower surfaces of the linseed oil layer...

From the figure, we realize that the upper and lower surfaces of the linseed oil layer are parallel to each other. Therefore, the two dashed normal lines shown in the figure are parallel to each other, and the angle of refraction at the air-linseed oil boundary is phi. Now we apply Snell's law to the refraction at the air-linseed oil boundary. Where n_air is the index of refraction of air and n_oil the index of refraction of the linseed oil,...
