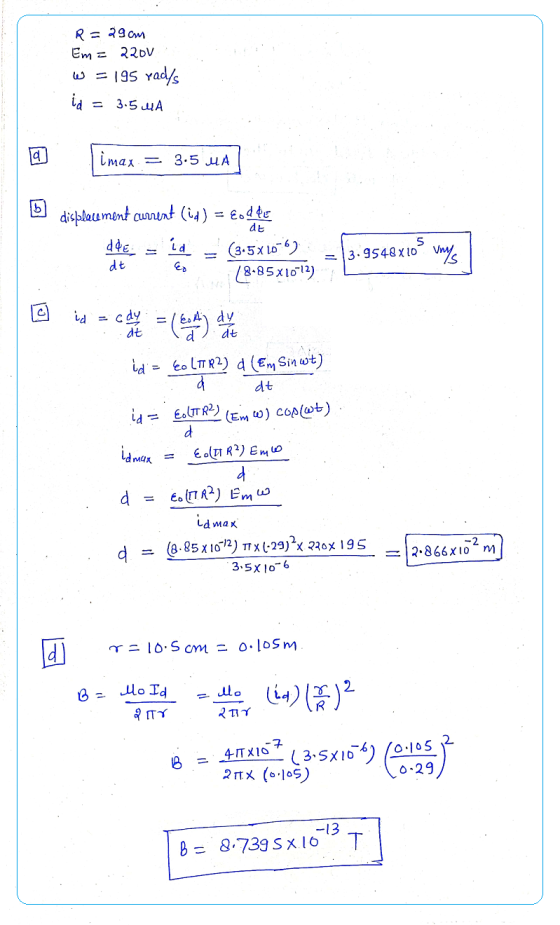

if any mistake in this answer please comment i will clarify your doubt . thank you
Add Answer to:
In the figure, a capacitor with circular plates of radius R - 29.0 cm is connected...
In the figure below, the capacitor with circular plates of radius R = 20.0 cm is...
In the figure below, the capacitor with circular plates of radius R = 20.0 cm is connected to a source of emf ee= em sin at, where rm-240 V and ω 120 rad/s. The maximum value of the displacement current is id = 7.50 μA. Neglect fringing of the electric field at the edges of the plates sin ot (a) What is the maximum value of the current i in the circuit? (b) what is the maximum value of ddedt,...
6. (II) Suppose an air-gap capacitor has circular plates of radius R 2.5 cm and separation...
6. (II) Suppose an air-gap capacitor has circular plates of radius R 2.5 cm and separation d 1.6 mm. A 76.0-Hz emf, E= E cos wt, is applied to the capacitor. The maximum displacement current is 35 uA. Determine (a) the maximum conduction current I, (b) the value of , (c) the maximum value of dE/dt between the plates. Neglect fringing. 7. (II Suppose that a circular parallel-plate capacitor has
Problem 5: If the capacitor plates in the figure have radius R and the electric field...
Problem 5: If the capacitor plates in the figure have radius R and the electric field is increasing at a rate dE/dt = exp(wt). a) Find an expression for the induced magnetic field for r < R. Do the same for r > R. d) What is the current in the wire? As charge flows onto plates, ... ...E field between plates increases. Field lines of induced B field are circles.
Two large, parallel, conducting plates are 16 cm apart and have charges of equal magnitude and...
Two large, parallel, conducting plates are 16 cm apart and have
charges of equal magnitude and opposite sign on their facing
surfaces. An electrostatic force of 4.9 × 10-15 N acts
on an electron placed anywhere between the two plates. (Neglect
fringing.) (a) Find the electric field at the
position of the electron. (b) What is the
potential difference in volts between the plates?
Two large, parallel conducting ates are 16 cm apart and have charges o equal magnitude and...
Prelab Problem: You have a parallel plate capacitor with circular plates of radius r = 10.0...
Prelab Problem: You have a parallel plate capacitor with circular plates of radius r = 10.0 cm separated d = 2.00 mm. a) What is the capacitance of your capacitor? b) You need a capacitor with capacitance C = 840 pF, so you wish to modify your capacitor to get the desired capacitance. You are not able to change the distance between the plates or the size of the plates, but you could insert an insulating material between the plates....
A parallel plate capacitor with circular plates of radius R = 16.0 cm and plate separation...
A parallel plate capacitor with circular plates of radius R = 16.0 cm and plate separation d = 9.00 mm is being charged at the rate of 8.00 C/s. What is the displacement current through a circular loop of radius r = 21.00 cm centered on the axis of the capacitor? 8.00 You are correct. What is the displacement current through a circular loop of radius r = 3.00 cm centered on the axis of the capacitor? What is the...
In the figure (Figure 1) the capacitor plates have area 31.00 cm2 and are separated by...
In the figure (Figure 1) the capacitor plates have area 31.00
cm2 and are separated by a distance of 2.00 mm (the figure is not
drawn to scale). The plates are in vacuum. A sinusoidal potential
difference with a maximum value of 740 V and a frequency of 60 Hz
is applied across the plates; that isV(t)=( 740 V
)sin[2?(60Hz)t]. The
current iC(t) which charges or
discharges the capacitor is also sinusoidal. In the figure, the
current is shown at...
A parallel-plate, air-filled capacitor is being charged as in (Figure 1). The circular plates have radius...
A parallel-plate, air-filled capacitor is being charged as in (Figure 1). The circular plates have radius 3.00 cm, and at a particular instant, the conduction current in the wires is 0.570 A Part A What is the displacement current density in in the air space between the plates? Express your answer with the appropriate units. jo = 202 Submit Previous Answers Answer Requested Part B What is the rate at which the electric field between the plates is changing? Express...
D04 and D05. An air-filled parallel plate capacitor has circular parallel plates each of radius R...
D04 and D05. An air-filled parallel plate capacitor has circular parallel plates each of radius R = 100 cm. They are separated by a distance d = 0.100 cm. The capacitor is part of an RC circuit as shown in the circuit diagram below. The EMF of the battery is 50 V. R = 100 ΜΩ (1ΜΩ = 10 Ω). The switch is initially open and the capacitor is uncharged. 100 MS2 EMF so V SWIT CH DO4. (i) What...
A 0.160–A current is charging a capacitor that has circular plates 11.8 cm in radius. The...
A 0.160–A current is charging a capacitor that has circular plates 11.8 cm in radius. The plate separation is 4.00 mm. (a) What is the time rate of increase of electric field between the plates? V/(m·s) (b) What is the magnetic field between the plates 5.00 cm from the center? T
In the figure below, the capacitor with circular plates of radius R = 20.0 cm is connected to a source of emf ee= em sin at, where rm-240 V and ω 120 rad/s. The maximum value of the displacement current is id = 7.50 μA. Neglect fringing of the electric field at the edges of the plates sin ot (a) What is the maximum value of the current i in the circuit? (b) what is the maximum value of ddedt,...
6. (II) Suppose an air-gap capacitor has circular plates of radius R 2.5 cm and separation d 1.6 mm. A 76.0-Hz emf, E= E cos wt, is applied to the capacitor. The maximum displacement current is 35 uA. Determine (a) the maximum conduction current I, (b) the value of , (c) the maximum value of dE/dt between the plates. Neglect fringing. 7. (II Suppose that a circular parallel-plate capacitor has
Problem 5: If the capacitor plates in the figure have radius R and the electric field is increasing at a rate dE/dt = exp(wt). a) Find an expression for the induced magnetic field for r < R. Do the same for r > R. d) What is the current in the wire? As charge flows onto plates, ... ...E field between plates increases. Field lines of induced B field are circles.
Two large, parallel, conducting plates are 16 cm apart and have
charges of equal magnitude and opposite sign on their facing
surfaces. An electrostatic force of 4.9 × 10-15 N acts
on an electron placed anywhere between the two plates. (Neglect
fringing.) (a) Find the electric field at the
position of the electron. (b) What is the
potential difference in volts between the plates?
Two large, parallel conducting ates are 16 cm apart and have charges o equal magnitude and...
In the figure (Figure 1) the capacitor plates have area 31.00
cm2 and are separated by a distance of 2.00 mm (the figure is not
drawn to scale). The plates are in vacuum. A sinusoidal potential
difference with a maximum value of 740 V and a frequency of 60 Hz
is applied across the plates; that isV(t)=( 740 V
)sin[2?(60Hz)t]. The
current iC(t) which charges or
discharges the capacitor is also sinusoidal. In the figure, the
current is shown at...
A parallel-plate, air-filled capacitor is being charged as in (Figure 1). The circular plates have radius 3.00 cm, and at a particular instant, the conduction current in the wires is 0.570 A Part A What is the displacement current density in in the air space between the plates? Express your answer with the appropriate units. jo = 202 Submit Previous Answers Answer Requested Part B What is the rate at which the electric field between the plates is changing? Express...
D04 and D05. An air-filled parallel plate capacitor has circular parallel plates each of radius R = 100 cm. They are separated by a distance d = 0.100 cm. The capacitor is part of an RC circuit as shown in the circuit diagram below. The EMF of the battery is 50 V. R = 100 ΜΩ (1ΜΩ = 10 Ω). The switch is initially open and the capacitor is uncharged. 100 MS2 EMF so V SWIT CH DO4. (i) What...
