A wire with a constant current of 14.5 A is placed along the x-axis. The current...

Question

Question

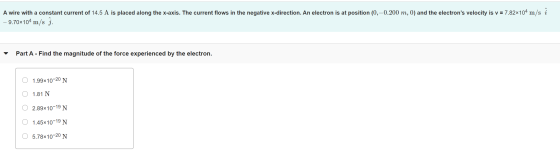

A wire with a constant current of 14.5 A is placed along the x-axis. The current flows in the negative x-direction. An electr

science physics

Answer 1

Answer #1

Answer 2
