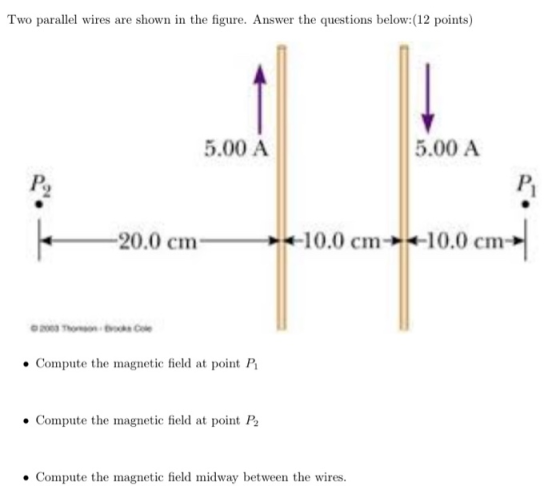

Two parallel wires are shown in the figure. Answer the questions below:(12 points) 5.00 A 5.00...
2. Two parallel wires are shown in the figure. Answer the questions below 5.00 A 5.00...
2. Two parallel wires are shown in the figure. Answer the questions below 5.00 A 5.00 A P2 F -20.0 cm +10.0 cm-+-10.0 cm • Compute the magnetic field at point P Compute the magnetic field at point P2 Compute the magnetic field midway between the wires.
As shown in the figure below, two long parallel wires (1 and 2) carry currents of...
As shown in the figure below, two long parallel wires (1 and 2)
carry currents of I1 = 3.10 A and
I2 = 5.10 A in the direction indicated.
(a) Determine the magnitude and direction of the magnetic field
at a point midway between the wires (d = 10.0 cm).
(b) Determine the magnitude and direction of the magnetic field
at point P, located d = 10.0 cm above wire 1.
As shown in the figure below, two long parallel wires (1 and 2) carry currents of...
As shown in the figure below, two long parallel wires (1 and 2) carry currents of 11 = 2.70 A and I2 = 5.50 A in the direction indicated. (a) Determine the magnitude and direction of the magnetic field at a point midway between the wires (d = 10.0 cm). magnitude μT direction º counterclockwise from the +x-axis (b) Determine the magnitude and direction of the magnetic field at point P, located d = 10.0 cm above wire 1. magnitude...
The two wires shown in Figure on the right are separated by d = 10.0 cm...
The two wires shown in Figure on the right are separated by d = 10.0 cm and carry currents of I = 5.00 A in opposite directions. Find the magnitude and direction of the net magnetic field (a) at a point midway between the wires; (b) at point P_1, 10.0 cm to the right of the wire on the right; and (c) at point P_2, 2d = 20.0 cm to the left of the wire on the left
electrostatic charging quiz As shown in the figure below, two lono parallel wires (1 and 2)...
electrostatic charging quiz
As shown in the figure below, two lono parallel wires (1 and 2) carry currents of I, -2.90 A and 12 - 4.95 A in the direction indicated. (a) Determine the magnitude and direction of the magnetic field at a point midway between the wires (d magnitude 82PT direction 90 10.0 cm). o counterclockwise from the tx-axis (b) Determine the magnitude and direction of the magnetic field at point P, located d 10.0 cm above wire 1...
Two long, straight parallel wires are 10.0 cm apart and carry 3.20 A currents in the...
Two long, straight parallel wires
are 10.0 cm apart and carry 3.20 A currents in the same direction
(see the figure).
Find the direction of the magnetic field at point P1, midway
between the wires.
Find the magnitude of the magnetic field at point P1, midway
between the wires.
Find the direction of the magnetic field at point P2, 25.0 cm to
the right of P1.
Find the magnitude of the magnetic field at point P2, 25.0 cm to
the...
D Question 19 2 pts As shown in the figure below, two long parallel wires (1...
D Question 19 2 pts As shown in the figure below, two long parallel wires (1 and 2) carry currents of 11 - 16 A and 12 - 76 A in the direction indicated. What is the magnitude of the magnetic field on That a point midway between the wires (d = 23 cm
10. -/6 points SerCP10 19.P.048. The two wires shown in the figure below are separated by...
10. -/6 points SerCP10 19.P.048. The two wires shown in the figure below are separated by d = 10.2 cm and carry currents of I = 5.15 A in opposite directions. (a) Find the magnitude and direction of the net magnetic field at a point midway between the wires. magnitude direction Select AT (b) Find the magnitude and direction of the net magnetic field at point P, 10.2 cm to the right of the wire on the right. magnitude direction...
Two long, straight, parallel wires are 10.0 cm apart and carry 5.00 A currents in the...
Two long, straight, parallel wires are 10.0 cm apart and carry 5.00 A currents in the same direction (see Figure 1)). Find the direction of the magnetic field at point P.midway between the wires. The field is zero. Previous Answers Correct Part B Find the magnitude of the magnetic field at point P.midway between the wires. Express your answer in telsas to three significant figures. AED OR? B, Submit Request Answer Part C Find the direction of the magnetic field...
The two wires shown in the figure below are separated by d = 12.1 cm and...
The two wires shown in the figure below are separated by
d = 12.1 cm and carry currents of I = 5.50 A in
opposite directions.
1: 2d (a) Find the magnitude and direction of the net magnetic field at a point midway between the wires magnitude direction-Select μπ (b) Find the magnitude and direction of the net magnetic field at point P, 12.1 cm to the right of the wire on the right magnitude direction-Select (c) Find the magnitude...
2. Two parallel wires are shown in the figure. Answer the questions below 5.00 A 5.00 A P2 F -20.0 cm +10.0 cm-+-10.0 cm • Compute the magnetic field at point P Compute the magnetic field at point P2 Compute the magnetic field midway between the wires.
As shown in the figure below, two long parallel wires (1 and 2)
carry currents of I1 = 3.10 A and
I2 = 5.10 A in the direction indicated.
(a) Determine the magnitude and direction of the magnetic field
at a point midway between the wires (d = 10.0 cm).
(b) Determine the magnitude and direction of the magnetic field
at point P, located d = 10.0 cm above wire 1.
As shown in the figure below, two long parallel wires (1 and 2) carry currents of 11 = 2.70 A and I2 = 5.50 A in the direction indicated. (a) Determine the magnitude and direction of the magnetic field at a point midway between the wires (d = 10.0 cm). magnitude μT direction º counterclockwise from the +x-axis (b) Determine the magnitude and direction of the magnetic field at point P, located d = 10.0 cm above wire 1. magnitude...
The two wires shown in Figure on the right are separated by d = 10.0 cm and carry currents of I = 5.00 A in opposite directions. Find the magnitude and direction of the net magnetic field (a) at a point midway between the wires; (b) at point P_1, 10.0 cm to the right of the wire on the right; and (c) at point P_2, 2d = 20.0 cm to the left of the wire on the left
electrostatic charging quiz
As shown in the figure below, two lono parallel wires (1 and 2) carry currents of I, -2.90 A and 12 - 4.95 A in the direction indicated. (a) Determine the magnitude and direction of the magnetic field at a point midway between the wires (d magnitude 82PT direction 90 10.0 cm). o counterclockwise from the tx-axis (b) Determine the magnitude and direction of the magnetic field at point P, located d 10.0 cm above wire 1...
Two long, straight parallel wires
are 10.0 cm apart and carry 3.20 A currents in the same direction
(see the figure).
Find the direction of the magnetic field at point P1, midway
between the wires.
Find the magnitude of the magnetic field at point P1, midway
between the wires.
Find the direction of the magnetic field at point P2, 25.0 cm to
the right of P1.
Find the magnitude of the magnetic field at point P2, 25.0 cm to
the...
D Question 19 2 pts As shown in the figure below, two long parallel wires (1 and 2) carry currents of 11 - 16 A and 12 - 76 A in the direction indicated. What is the magnitude of the magnetic field on That a point midway between the wires (d = 23 cm
10. -/6 points SerCP10 19.P.048. The two wires shown in the figure below are separated by d = 10.2 cm and carry currents of I = 5.15 A in opposite directions. (a) Find the magnitude and direction of the net magnetic field at a point midway between the wires. magnitude direction Select AT (b) Find the magnitude and direction of the net magnetic field at point P, 10.2 cm to the right of the wire on the right. magnitude direction...
Two long, straight, parallel wires are 10.0 cm apart and carry 5.00 A currents in the same direction (see Figure 1)). Find the direction of the magnetic field at point P.midway between the wires. The field is zero. Previous Answers Correct Part B Find the magnitude of the magnetic field at point P.midway between the wires. Express your answer in telsas to three significant figures. AED OR? B, Submit Request Answer Part C Find the direction of the magnetic field...
The two wires shown in the figure below are separated by
d = 12.1 cm and carry currents of I = 5.50 A in
opposite directions.
1: 2d (a) Find the magnitude and direction of the net magnetic field at a point midway between the wires magnitude direction-Select μπ (b) Find the magnitude and direction of the net magnetic field at point P, 12.1 cm to the right of the wire on the right magnitude direction-Select (c) Find the magnitude...
