An RL circuit is assembled with a 24.0 V ideal battery connected by a switch to...
An RL circuit is assembled with a 24.0 V ideal battery connected by a switch to a 37.5 mH inductor and 50.0 Ω resistor.
a) How long, in ms, after the switch is closed does the current in the resistor reach 63.2% of its final value? BLANK-1
b) What is the maximum current, in Amperes, coming out of the voltage source after a very long time? BLANK-2
c) What is the current, in Amperes, through the resistor, 0.95 ms after the switch is closed? BLANK-3
d) When the switch is disconnected from the battery and the inductor is allowed to discharge through the resistor. What is the current, in Amperes, flowing 0.500 ms after the switch is disconnected? BLANK-4

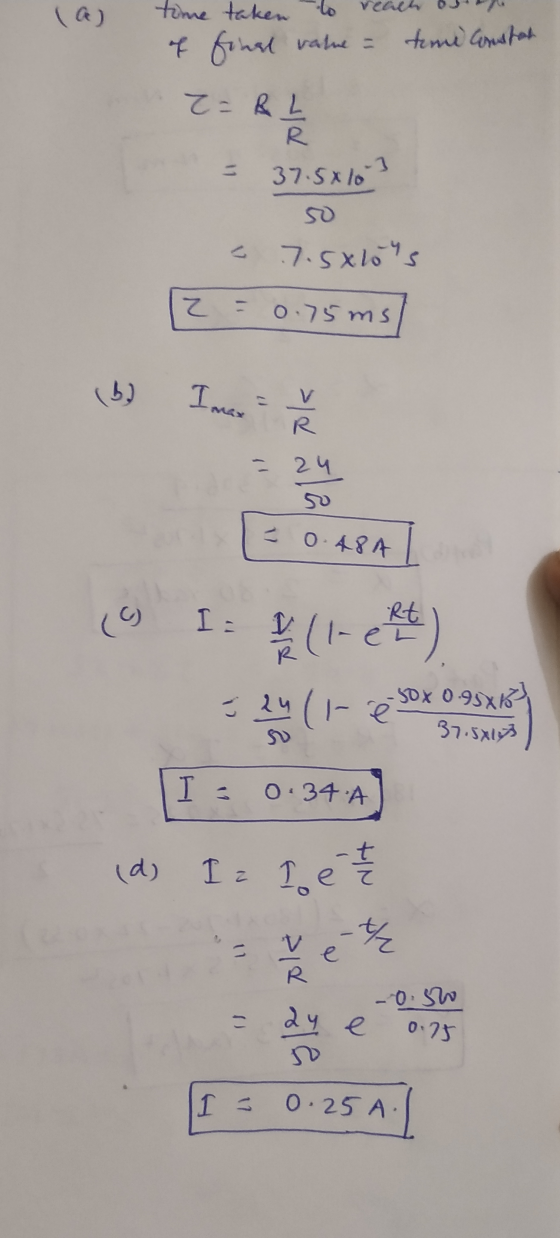

Homework Answers
Add Answer to:
An RL circuit is
assembled with a 24.0 V ideal battery connected by a switch to...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-76 Ω, R3-105 Ω and R4-810. The inductance is L-478 mH and the battery voltage is V-24 V 1) The switch has been open for a long time when at time t - o, the switch is closed. What is 11(0), the magnitude of the current through the resistor R1 just after the switch is closed? A uIii...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 48 Ω, R3 = 100 Ω and R4 = 130 Ω.
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 48 Ω, R3 = 100 Ω and R4 = 130 Ω. The inductance is L = 330 mH and the battery voltage is V = 12 V. The positive terminal of the battery is indicated with a + sign.1)The switch has been open for a long time when at time t = 0, the...
A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an...
A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an open switch.A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an open switch. Part A What is the current in the circuit 0.110 ms after the switch is closed? unit (mA) Part B How much energy is stored in the inductor at this time? unit(micro J)
Two Loop RL Circuit1 A circuit is constructed with four resistors, one inductor, one battery and...
Two Loop RL Circuit1 A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 R2-412, R3 70 and R4 64 . The inductance is L-422 mH and the battery voltage is V 24 V. 1) The switch has been open for a long time when at time t 0, the switch is closed. What is 10), the magnitude of the current through the resistor R1 just after...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 49 Q, R = 105 Q and Ra = 142 . The inductance is L = 354 mH and the battery voltage is V = 12 V. The positive terminal of the battery is indicated with a + sign. "TII Luni 1) The switch has been open for a long time when at time...
answer all A circuit is constructed with four resistors, one inductor, one battery and a switch...
answer all
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-56 Ω, R3-45 Ω and R4-91. The inductance is L-245 mH and the battery voltage is V- 24V 1) The switch has been open for a long time when at timet 0, the switch is closed. What is I1(0), the magnitude of the current through the resistor R1 just after the switch is closed? 2) What...
A 8.2-V battery is connected in series with a 35-mH inductor, a 150-Ω resistor, and an...
A 8.2-V battery is connected in series with a 35-mH inductor, a 150-Ω resistor, and an open switch. Part A What is the current in the circuit 0.130 ms after the switch is closed? (in mA) Part B How much energy is stored in the inductor at this time? (in uJ)
A 35.0-V battery with negligible internal resistance, a 50.0-Ω resistor, and a 1.25-mH inductor with negligible resistance are all...
A 35.0-V battery with negligible internal resistance, a 50.0-Ω resistor, and a 1.25-mH inductor with negligible resistance are all connected in series with an open switch. The switch is suddenly closed. How long after closing the switch will the current through the inductor reach one-half of its maximum value? How long after closing the switch will the energy stored in the inductor reach one-half of its maximum value?
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R = R2 = 622, R3 = 91 and R - 74 . The inductance is L-205 mH and the battery voltage is V - 24V. v + Lun lai 1) The switch has been open for a long time when at time t = 0, the switch is closed. What is 1(O), the magnitude of the current...
Item 2.9 A 9.9-V battery is connected in series with a 36-mH inductor, a 180-Ω resistor,...
Item 2.9 A 9.9-V battery is connected in series with a 36-mH inductor, a 180-Ω resistor, and an open switch. Part A: What is the current in the circuit 0.120 ms after the switch is closed? Part B: How much energy is stored in the inductor at this time?
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-76 Ω, R3-105 Ω and R4-810. The inductance is L-478 mH and the battery voltage is V-24 V 1) The switch has been open for a long time when at time t - o, the switch is closed. What is 11(0), the magnitude of the current through the resistor R1 just after the switch is closed? A uIii...
Two Loop RL Circuit1 A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 R2-412, R3 70 and R4 64 . The inductance is L-422 mH and the battery voltage is V 24 V. 1) The switch has been open for a long time when at time t 0, the switch is closed. What is 10), the magnitude of the current through the resistor R1 just after...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 49 Q, R = 105 Q and Ra = 142 . The inductance is L = 354 mH and the battery voltage is V = 12 V. The positive terminal of the battery is indicated with a + sign. "TII Luni 1) The switch has been open for a long time when at time...
answer all
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-56 Ω, R3-45 Ω and R4-91. The inductance is L-245 mH and the battery voltage is V- 24V 1) The switch has been open for a long time when at timet 0, the switch is closed. What is I1(0), the magnitude of the current through the resistor R1 just after the switch is closed? 2) What...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R = R2 = 622, R3 = 91 and R - 74 . The inductance is L-205 mH and the battery voltage is V - 24V. v + Lun lai 1) The switch has been open for a long time when at time t = 0, the switch is closed. What is 1(O), the magnitude of the current...
