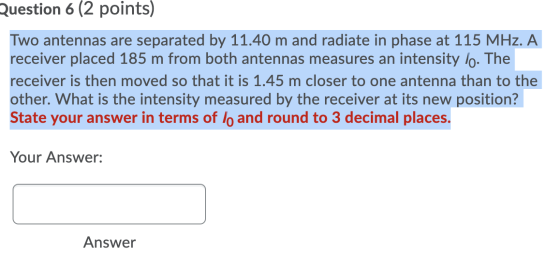

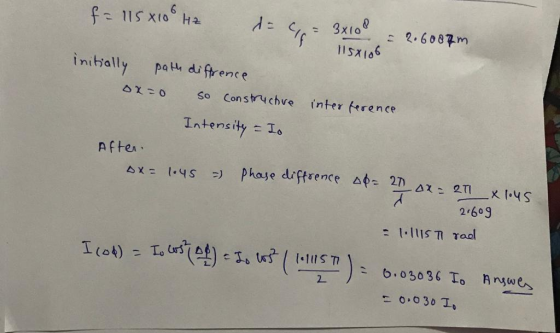

Two antennas are separated by 11.40 m and radiate in phase at 115 MHz. A receiver placed 185 m from both antennas measures an intensity I0. The receiver is then moved so that it is 1.45 m closer to one antenna than to the other. What is the intensity measured by the receiver at its new position? State your answer in terms of I0 and round to 3 decimal places.
Homework Answers
Add Answer to:
Two antennas are separated by 11.40 m and radiate in phase at
115 MHz. A receiver...
Two antennas are separated by 8.60 m and radiate in phase at 130 MHz. A receiver...
Two antennas are separated by 8.60 m and radiate in phase at 130 MHz. A receiver placed 170 m from both antennas measures an intensity lo. The receiver is then moved so that it is 1.55 m closer to one antenna than to the other. What is the intensity measured by the receiver at its new position? State your answer in terms of lo and round to 3 decimal places. Your Answer: Answer
Two radio antennas A and B radiate in phase at a frequency of 15 MHz. Antenna...
Two radio antennas A and B radiate in phase at a frequency of 15 MHz. Antenna B is 115 m to the right of antenna A. Consider point Q along the line connecting the antennas, a horizontal distance x to the right of antenna A. Part A What is the smallest nonzero value of x for which there will be constructive interference at pointQ? Part B What is the smallest nonzero value of x for which there will be destructive...
A radio transmitting station operating at a frequency of 115 MHz has two identical antennas that...
A radio transmitting station operating at a frequency of 115 MHz has two identical antennas that radiate in phase. Antenna B is 9.00 m to the right of antenna A. Consider point P between the antennas and along the line connecting them, a horizontal distance x to the right of antenna A. For what values of x will constructive interference occur at point P? Enter your answers in ascending order separated by a comma. x = ________ m
A radio transmitting station operating at a frequency of 115 MHz has two identical antennas that...
A radio transmitting station operating at a frequency of 115 MHz has two identical antennas that radate in phase Antenna B is 9 00 m to the right of antenna A Consider point P between the antennas and along the line connecting them, a horizontal distance z to the right of antenna A Part A For what values of r will constructive interference occur at point P? Enter your answers in ascending order separated by a comma ΑΣφ Submit Request...
A radio transmitting station operating at a frequency of 120 MHz has two identical antennas that...
A radio transmitting station operating at a frequency of 120 MHz has two identical antennas that radiate in phase. Antenna B is 9.05 m to the right of antenna A. Consider point P between the antennas and along the line connecting them, a horizontal distance z to the right of antenna A. Part A For what values of will constructive interference occur at point P? Enter your answers in ascending order separated by a comma. ??? ? Submit Previous Answers...
A radio transmitting station operating at a frequency of 120 MHz has two identical antennas that...
A radio transmitting station operating at a frequency of 120 MHz has two identical antennas that radiate in phase. Antenna B is 9.05 m to the right of antenna A. Consider point P between the antennas and along the line connecting them, a horizontal distance x to the right of antenna A. For what values of x will constructive interference occur at point P? Enter your answers in ascending order separated by a comma.
A radio transmitting station operating at a frequency of 120 MHz has two identical antennas that...
A radio transmitting station operating at a frequency of 120 MHz has two identical antennas that radiate in phase. Antenna B is 9.05 m to the right of antenna A. Consider point P between the antennas and along the line connecting them, a horizontal distance x to the right of antenna A. Answer is not 0.775,2.025,3.275,5.775,7.025,8.275. This is the second time I am asking this question to Chegg, hope someone helps me get the correct answer. An explanation would help....
Constants Two radio antennas A and B radiate in phase Antenna B is a distance of...
Constants Two radio antennas A and B radiate in phase Antenna B is a distance of 110 m to the right of antenna A. Consider point Q along the extension of the line connecting the antennas, a horizontal distance of 30.0 m to the right of antenna B. The frequency, and hence the wavelength, of the emitted waves can be varied What is the longest wavelength for which there will be destructive interference at point Q? Express your answer using...
Exercise 35.4 Part A Constants Two radio antennas A and B radiate in phase. Antenna B...
Exercise 35.4 Part A Constants Two radio antennas A and B radiate in phase. Antenna B is a distance of 120 m to the right of antenna A. Consider point Q along the extension of the line connecting the antennas, a horizontal distance of 40.0 m to the right of antenna B. The frequency, and hence the wavelength, of the emitted waves can be varied. What is the longest wavelength for which there will be destructive interference at point Q?...
An astronomical radio telescope consists of two antennas separated by a distance of 206 m. Both...
An astronomical radio telescope consists of two antennas
separated by a distance of 206 m. Both antennas are tuned to the
frequency of 24 MHz. The signals from each antenna are fed into a
common amplifier, but one signal first passes through a phase
selector that delays its phase by a chosen amount so that the
telescope can "look" in different directions. When the phase delay
is zero, plane radio waves that are incident vertically on the
antennas produce signals...
Two antennas are separated by 8.60 m and radiate in phase at 130 MHz. A receiver placed 170 m from both antennas measures an intensity lo. The receiver is then moved so that it is 1.55 m closer to one antenna than to the other. What is the intensity measured by the receiver at its new position? State your answer in terms of lo and round to 3 decimal places. Your Answer: Answer
A radio transmitting station operating at a frequency of 115 MHz has two identical antennas that radate in phase Antenna B is 9 00 m to the right of antenna A Consider point P between the antennas and along the line connecting them, a horizontal distance z to the right of antenna A Part A For what values of r will constructive interference occur at point P? Enter your answers in ascending order separated by a comma ΑΣφ Submit Request...
A radio transmitting station operating at a frequency of 120 MHz has two identical antennas that radiate in phase. Antenna B is 9.05 m to the right of antenna A. Consider point P between the antennas and along the line connecting them, a horizontal distance z to the right of antenna A. Part A For what values of will constructive interference occur at point P? Enter your answers in ascending order separated by a comma. ??? ? Submit Previous Answers...
Constants Two radio antennas A and B radiate in phase Antenna B is a distance of 110 m to the right of antenna A. Consider point Q along the extension of the line connecting the antennas, a horizontal distance of 30.0 m to the right of antenna B. The frequency, and hence the wavelength, of the emitted waves can be varied What is the longest wavelength for which there will be destructive interference at point Q? Express your answer using...
Exercise 35.4 Part A Constants Two radio antennas A and B radiate in phase. Antenna B is a distance of 120 m to the right of antenna A. Consider point Q along the extension of the line connecting the antennas, a horizontal distance of 40.0 m to the right of antenna B. The frequency, and hence the wavelength, of the emitted waves can be varied. What is the longest wavelength for which there will be destructive interference at point Q?...
An astronomical radio telescope consists of two antennas
separated by a distance of 206 m. Both antennas are tuned to the
frequency of 24 MHz. The signals from each antenna are fed into a
common amplifier, but one signal first passes through a phase
selector that delays its phase by a chosen amount so that the
telescope can "look" in different directions. When the phase delay
is zero, plane radio waves that are incident vertically on the
antennas produce signals...
