Homework Answers

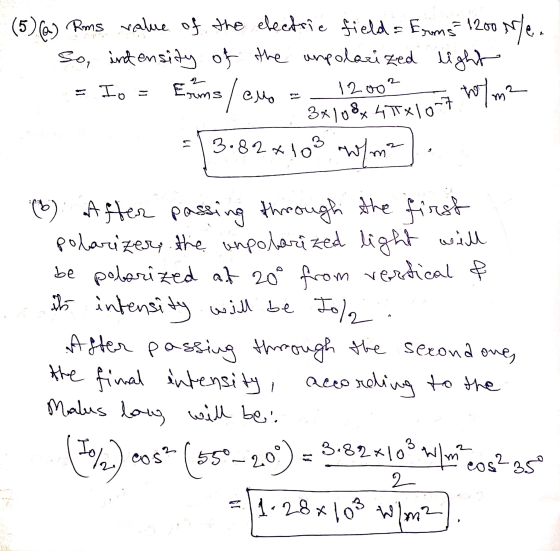

Solution :
Add Answer to:

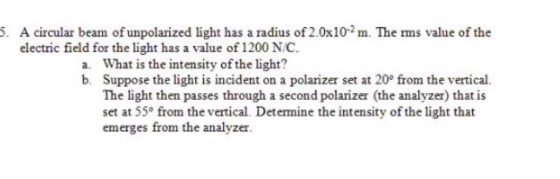

5. A circular beam of unpolarized light has a radius of 2.0x10-2 m. The mms value...
Unpolarized light of intensity equal to 15.2 W/m2 is incident upon a polarizer oriented at 30°...
Unpolarized light of intensity equal to 15.2 W/m2 is incident upon a polarizer oriented at 30° to vertical and a second polarizer (the analyzer) is oriented at 45° to vertical. Find the intensity of light that emerges from the analyzer. 2.
Unpolarized light is passed through an optical filter that is oriented in the vertical direction.A beam...
Unpolarized light is passed through an optical filter that is oriented in the vertical direction.A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle between the axes of the first and second polarizers, labeled ?12ϕ12 , is 20.9∘20.9∘ and the angle between the axes of the second and third polarizers, labeled ?23ϕ23 , is 57.9∘57.9∘ . What is the ratio of the intensity of light emerging from the third polarizer, ?3I3 , to the...
5. (4 pts.) A collimated beam (parallel rays, non-spreading and non-focusing) of unpolarized ("natural") light from...
5. (4 pts.) A collimated beam (parallel rays, non-spreading and non-focusing) of unpolarized ("natural") light from a flashlight has initial intensity lo. The beam then passes through three successive plane-polarizers: . a vertical polarizer, then . a polarizer oriented at 20.0 to the vertical, then . a polarizer oriented at 50.0° to the vertical. Find the final intensity of the beam of light that emerges from the third polarizer, in terms of lo Express your final answer as a decimal...
A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle...
A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle between the axes of the and second polarizers, labeled P12, is 22.1° and the angle between the axes of the second and third polarizers, labeled 023, 53.3°. What is the ratio of the intensity of light emerging from the third polarizer, 13 , to the intensity of light incident on the first polarizer, I ? A beam of unpolarized light shines on a stack...
A beam of partially polarized light (a mixture of vertically polarized and unpolarized light) of intensity...
A beam of partially polarized light (a mixture of vertically polarized and unpolarized light) of intensity 500 Wimm' is incident on a polarizing sheet. In order to determine the relative intensities of the polarized and unpolarized portions of the beam, the light is sent through a vertical polarizer, and the intensity is noted to drop to 300 Wm Mathematical Analysis a. Determine the intensities of the polarized and unpolarized portions of the beam b. What is the transmitted intensity if...
GOAL Understand how polarizing materials affect light intensity. Unpolarized light is incident upon three polarizers. The...
GOAL Understand how polarizing materials affect light intensity. Unpolarized light is incident upon three polarizers. The first polarizer has a vertical transmission axis, the second has a transmission axis rotated 30.0 degree with respect to the first, and the third has a transmission axis rotated 75.0 degree relative to the first. If the initial light intensity of the beam is I_b, calculate the light intensity after the beam passes through the second polarizer and the third polarizer. After the beam...
Unpolarized light of average intensity 50 w/m^2 is passed through a vertical polarizer. It then passes...
Unpolarized light of average intensity 50 w/m^2 is passed through a vertical polarizer. It then passes through an analyzer, emerging with an average intensity of 22 w/m^2. what is the angle of the analyzer with the vertical?
A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle...
A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle between the axes of the first and second polarizers is 21.7 degree, and the angle between the axes of the second and third polarizers is 52.9 degree. What is the ratio of the intensity of light emerging from the third polarizer, I_3, to the intensity of light incident on the first polarizer, I_0? I_3/I_0 =
A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle...
A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle between the axes of the first and second polarizers, labeled ?12 , is 21.9∘ and the angle between the axes of the second and third polarizers, labeled ?23 , is 57.5∘ . What is the ratio of the intensity of light emerging from the third polarizer, ?3 , to the intensity of light incident on the first polarizer, ?0 ?
A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle...
A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle between the axes of the first and second polarizers, labeled ?12 , is 15.9∘ and the angle between the axes of the second and third polarizers, labeled ?23 , is 50.1∘ . What is the ratio of the intensity of light emerging from the third polarizer, ?3 , to the intensity of light incident on the first polarizer, ?0 ?
Unpolarized light of intensity equal to 15.2 W/m2 is incident upon a polarizer oriented at 30° to vertical and a second polarizer (the analyzer) is oriented at 45° to vertical. Find the intensity of light that emerges from the analyzer. 2.
5. (4 pts.) A collimated beam (parallel rays, non-spreading and non-focusing) of unpolarized ("natural") light from a flashlight has initial intensity lo. The beam then passes through three successive plane-polarizers: . a vertical polarizer, then . a polarizer oriented at 20.0 to the vertical, then . a polarizer oriented at 50.0° to the vertical. Find the final intensity of the beam of light that emerges from the third polarizer, in terms of lo Express your final answer as a decimal...
A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle between the axes of the and second polarizers, labeled P12, is 22.1° and the angle between the axes of the second and third polarizers, labeled 023, 53.3°. What is the ratio of the intensity of light emerging from the third polarizer, 13 , to the intensity of light incident on the first polarizer, I ? A beam of unpolarized light shines on a stack...
A beam of partially polarized light (a mixture of vertically polarized and unpolarized light) of intensity 500 Wimm' is incident on a polarizing sheet. In order to determine the relative intensities of the polarized and unpolarized portions of the beam, the light is sent through a vertical polarizer, and the intensity is noted to drop to 300 Wm Mathematical Analysis a. Determine the intensities of the polarized and unpolarized portions of the beam b. What is the transmitted intensity if...
GOAL Understand how polarizing materials affect light intensity. Unpolarized light is incident upon three polarizers. The first polarizer has a vertical transmission axis, the second has a transmission axis rotated 30.0 degree with respect to the first, and the third has a transmission axis rotated 75.0 degree relative to the first. If the initial light intensity of the beam is I_b, calculate the light intensity after the beam passes through the second polarizer and the third polarizer. After the beam...
Unpolarized light of average intensity 50 w/m^2 is passed through a vertical polarizer. It then passes through an analyzer, emerging with an average intensity of 22 w/m^2. what is the angle of the analyzer with the vertical?
A beam of initially unpolarized light passes through a sequence of three ideal polarizers. The angle between the axes of the first and second polarizers is 21.7 degree, and the angle between the axes of the second and third polarizers is 52.9 degree. What is the ratio of the intensity of light emerging from the third polarizer, I_3, to the intensity of light incident on the first polarizer, I_0? I_3/I_0 =
