Homework Answers

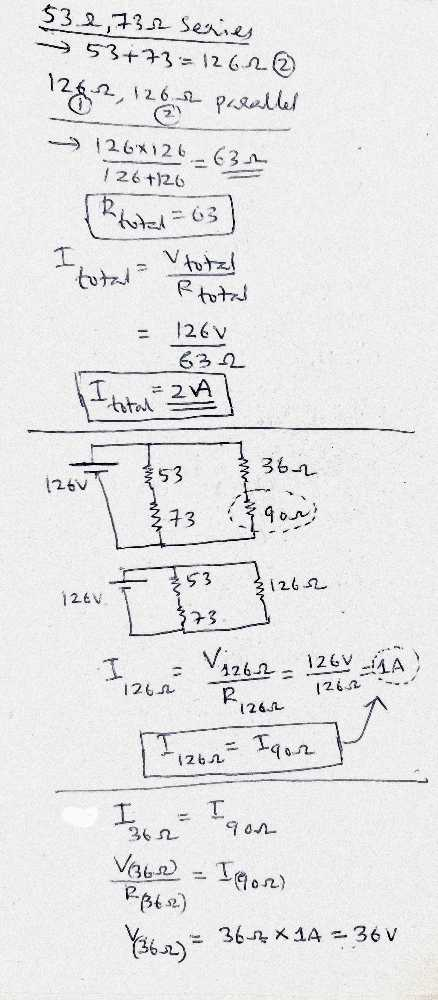

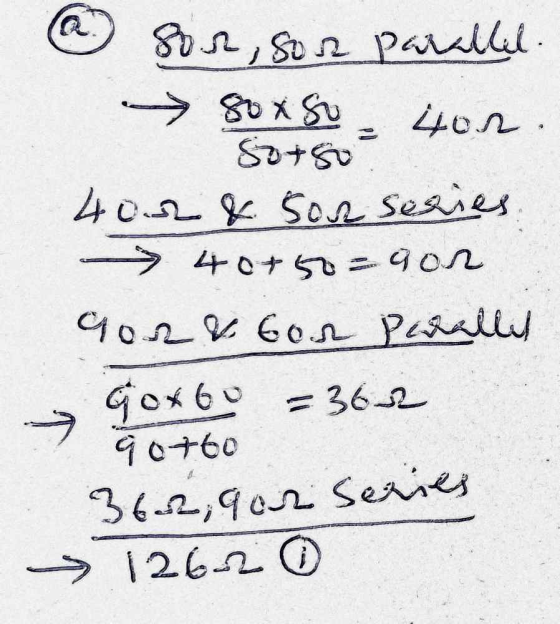

what all we should know is
that in parallel circuit potential difference is same but current
divided, where as in series circuit current will be same but
potential difference divided
Add Answer to:

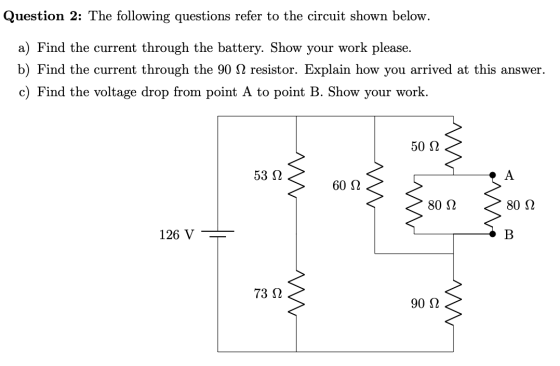

Question 2: The following questions refer to the circuit shown below. a) Find the current through...
Given the following circuit: a) Find the current I through the 2.00 Ω resistor and the...
Given the following circuit:
a) Find the current I through the 2.00 Ω resistor and the
voltage V of the battery to the left of this resistor
b) Calculate the power delivered to all elements in the circuit
and show energy is conserved.
4.00 0 8.00 12 W- 3.00 A 24.0V 6.00 12. M- # + 2.00 2..
For the circuit shown below, determine the effective resistance of the entire circuit. Find the c...
For the circuit shown below, determine the effective resistance
of the entire circuit. Find the current flowing through and voltage
drop across each resistor and draw the power box. If a compass was
placed at points A, B and C, where would it point? Explain. SHOW
ALL YOUR WORK PLEASE THANK YOU :)
PLEASE EXPLAIN AND SHOW YOUR WORK PLEASE :)!!! THANK YOU SO
MUCH
12Ω 12Ω 15Ω 12Ω 12Ω 5.0 Ω
12Ω 12Ω 15Ω 12Ω 12Ω 5.0 Ω
. In the following circuit, find: SHOW ALL WORK (a) the power provided by the battery...
. In the following circuit, find: SHOW ALL WORK (a) the power provided by the battery (b) the current through the 35Ω resistor. (c) the voltage drop across the 250Ω resistor. 150 Ohms ΜΗ 12 V 250 Ohms 75 Ohms 35 Ohms
explain the answer a little please 1. Given the circuit below, determine the current through each...
explain the answer a little please
1. Given the circuit below, determine the current through each of the resistors and the power used by resistor 3. (20 points) R,-50Ω Battery Voltage is 120 V R2-20 Ω R, 30 2 R, 40 Ω R7-70 Ω R8-80 Ω 9:52v LTE Done Attachment . Given the circuit below, determine the current through each of the resistors and the power used by resistor 3. (20 points) Rs = 50 Ω Battery Voltage is 120...
(a) What is the current flowing through each resistor in a circuit consisting of a 48.0-V...
(a) What is the current flowing through each resistor in a circuit consisting of a 48.0-V battery and a 24.0 Ω resistor connected in series with a 96.0 Ω resistor? (b) What is the voltage drop across each resistor? (c) What is the power dissipated in each resistor? (d) If the two resistors were connected in parallel rather than series, what would be the current flow through each resistor? (e) What would be the voltage drop across each resistor for...
In the circuit below, (A) find the total current supplied by the battery A. (B) Determine...
In the circuit below, (A) find the total current supplied by the battery A. (B) Determine the voltage drop across the 14-11 resistor. V. (C) Determine the voltage drop across the s-12 res stor. 2400 80V
QUESTION 6 It's time to work through a full circuit problem. We're going to find the...
QUESTION 6 It's time to work through a full circuit problem. We're going to find the voltage and current through the 5 ohm resistor. Keep at least 3 significant figures as you work through this. a. First, what is the equivalent resistance of this circuit? 10.0 Ω 4.0052 2.00 Ω 3.00 Ω QUESTION 7 b. For the following questions, let V -8 volts. What current is in the 2 resistor? QUESTION 8 c, what is the voltage across the 3...
Find the magnitude and direction of the current through resistor R in the circuit shown if...
Find the magnitude and direction of the current through resistor
R in the circuit shown if R=57 ΩΩ and V=13 V.
What is the direction of the current through resistor R?
Find the magnitude and direction of the current through resistor R in the circuit shown if R=57 Ω and V-13 V 85 Ω 15 V 151 Ω Answer: Choose... What is the direction of the current through resistor R? Select one: O down O up O can't tell
3. For the circuit shown in Fig. 3, find Vx so that the current through the...
3. For the circuit shown in Fig. 3, find Vx so that the current through the 400 D resistor is oA. (Hint: if the current goes through the 400 resistor is OA, then V V) (In the lab, we will use the DC sweep function of LTspice to find the voltage value Vx by sweeping Vx.) 200 Ω 0.0004 V 400 Ω 600 1 3 mA Figure 3.
1 Circuit Analysis For the circuit shown in Figure 1, find the current through and the...
1 Circuit Analysis For the circuit shown in Figure 1, find the current through and the potential difference across each resistor. Place your results in a table for ease of reading. Please follow the context-Rich solution format. For sense-making, please try to reason why the amount of current through each resistor makes sense. Figure 1: 3 Ω 16 Ω 4822 12 V 412
Given the following circuit:
a) Find the current I through the 2.00 Ω resistor and the
voltage V of the battery to the left of this resistor
b) Calculate the power delivered to all elements in the circuit
and show energy is conserved.
4.00 0 8.00 12 W- 3.00 A 24.0V 6.00 12. M- # + 2.00 2..
For the circuit shown below, determine the effective resistance
of the entire circuit. Find the current flowing through and voltage
drop across each resistor and draw the power box. If a compass was
placed at points A, B and C, where would it point? Explain. SHOW
ALL YOUR WORK PLEASE THANK YOU :)
PLEASE EXPLAIN AND SHOW YOUR WORK PLEASE :)!!! THANK YOU SO
MUCH
12Ω 12Ω 15Ω 12Ω 12Ω 5.0 Ω
12Ω 12Ω 15Ω 12Ω 12Ω 5.0 Ω
. In the following circuit, find: SHOW ALL WORK (a) the power provided by the battery (b) the current through the 35Ω resistor. (c) the voltage drop across the 250Ω resistor. 150 Ohms ΜΗ 12 V 250 Ohms 75 Ohms 35 Ohms
explain the answer a little please
1. Given the circuit below, determine the current through each of the resistors and the power used by resistor 3. (20 points) R,-50Ω Battery Voltage is 120 V R2-20 Ω R, 30 2 R, 40 Ω R7-70 Ω R8-80 Ω 9:52v LTE Done Attachment . Given the circuit below, determine the current through each of the resistors and the power used by resistor 3. (20 points) Rs = 50 Ω Battery Voltage is 120...
In the circuit below, (A) find the total current supplied by the battery A. (B) Determine the voltage drop across the 14-11 resistor. V. (C) Determine the voltage drop across the s-12 res stor. 2400 80V
QUESTION 6 It's time to work through a full circuit problem. We're going to find the voltage and current through the 5 ohm resistor. Keep at least 3 significant figures as you work through this. a. First, what is the equivalent resistance of this circuit? 10.0 Ω 4.0052 2.00 Ω 3.00 Ω QUESTION 7 b. For the following questions, let V -8 volts. What current is in the 2 resistor? QUESTION 8 c, what is the voltage across the 3...
Find the magnitude and direction of the current through resistor
R in the circuit shown if R=57 ΩΩ and V=13 V.
What is the direction of the current through resistor R?
Find the magnitude and direction of the current through resistor R in the circuit shown if R=57 Ω and V-13 V 85 Ω 15 V 151 Ω Answer: Choose... What is the direction of the current through resistor R? Select one: O down O up O can't tell
3. For the circuit shown in Fig. 3, find Vx so that the current through the 400 D resistor is oA. (Hint: if the current goes through the 400 resistor is OA, then V V) (In the lab, we will use the DC sweep function of LTspice to find the voltage value Vx by sweeping Vx.) 200 Ω 0.0004 V 400 Ω 600 1 3 mA Figure 3.
1 Circuit Analysis For the circuit shown in Figure 1, find the current through and the potential difference across each resistor. Place your results in a table for ease of reading. Please follow the context-Rich solution format. For sense-making, please try to reason why the amount of current through each resistor makes sense. Figure 1: 3 Ω 16 Ω 4822 12 V 412
