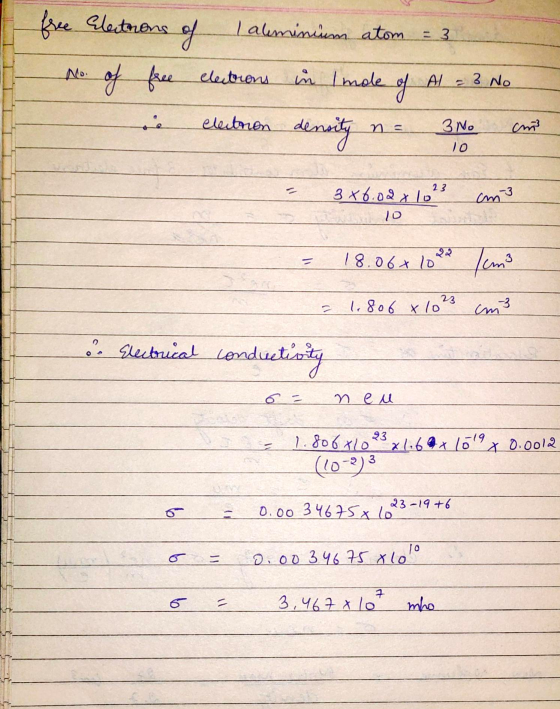

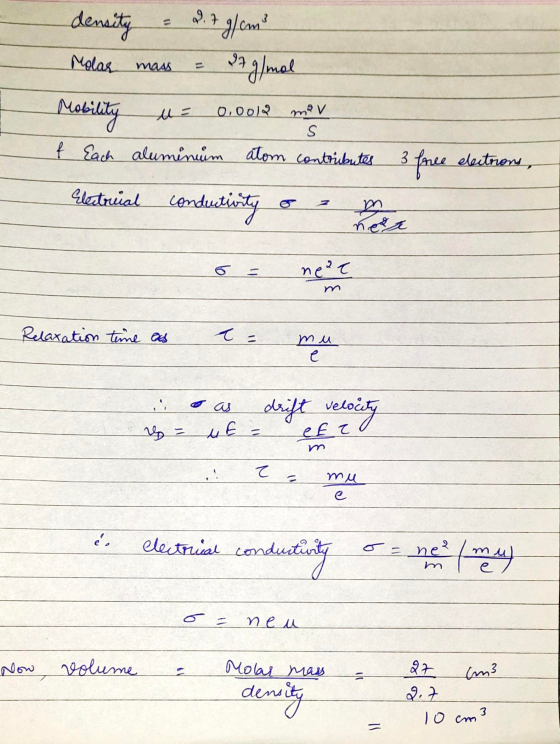

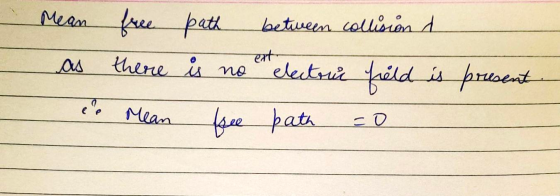

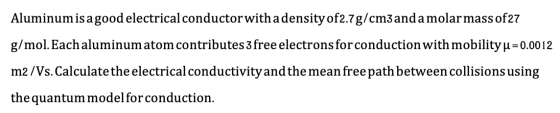

Aluminum is a good electrical conductor with a density of2.7g/cm3anda molar mass of 27 g/mol. Each...
a) (10 points) Calculate the occupation probability f(E), that is the probability that a state will...
a) (10 points) Calculate the occupation probability f(E), that is the probability that a state will be occupied, at 293 K for a state at the bottom of the conduction band in germanium. The energy of the gap is Eg= 0.67 eV and assume that the Fermi energy lies in the middle of the gap. b) (20 points) Aluminum is a good electrical conductor with a density of 2.7 g/cm3 and a molar mass of 27 g/mol. Each aluminum atom...
13. The resistivity of aluminum at 25 'C has been measured to be 2.72 x 10-8 0 m. The thermal coefficient of resistivity of aluminum at 0 C is 4.29 x 10-3 K-1. Aluminum has a valency of 3, a d...
13. The resistivity of aluminum at 25 'C has been measured to be 2.72 x 10-8 0 m. The thermal coefficient of resistivity of aluminum at 0 C is 4.29 x 10-3 K-1. Aluminum has a valency of 3, a density of 2.70 g cm3, and an atomic mass of 27 a. Calculate the resistivity of aluminum at-40°С. (Ans: 2.03 x 103 Ω m) b. What is the thermal coefficient of resistivity at-40'C? (Ans: 5.23x 103K c. Estimate the mean...
3. (20 points) The resistivity of aluminum at 0'C has been measured to be 2.46 x...
3. (20 points) The resistivity of aluminum at 0'C has been measured to be 2.46 x 10-82m The thermal coefficient of resistivity of aluminum at -40°C is 5.18 x 10-8K-1. Aluminum has a valency of 3, a density of 2.70g cm-3, and an atomic mass of 27. Answer the following questions: (a). Calculate the resistivity of aluminum at 25 C (b). What is the thermal coefficient of resistivity of aluminum at 25'C? (c). Estimate the mean free time between collisions...
all of 8 please. 8. An aluminum wire carrying a current of 5 A has a...
all of 8 please.
8. An aluminum wire carrying a current of 5 A has a cross sectional area of 4 x 10'6 m2. Find the drift speed of the electrons in the wire. The density of aluminum is 2.7 g/cm3. (Assume three electrons are supplied by each atom). a) Recall the mass flow rate equation from semester 1. Rms Ro v b) Write the equivalent current relation for charges in a wire, I- c) What is the electrical analogy...
2) Silver has a density of 10.5 x 103 kg/m3 and a resistivity of 1.60 x...
2) Silver has a density of 10.5 x 103 kg/m3 and a resistivity of 1.60 x 10-8 m at room temperature. (a) On the basis of the classical free electron gas model, and assuming that each silver atom contributes one electron to the electron gas, calculate the average time between collisions of the electrons. (b) Calculate the mean free path from t and the electron's thermal velocity. (c) How does the mean free path compare to the lattice spacing?
7. Two light bulbs with ratings of 40 W and 100 W are plugged into sockets...
7. Two light bulbs with ratings of 40 W and 100 W are plugged into sockets supplying 110 V. A) Calculate the resistance of each. Which has more resistance? The more resistance. (Notice that voltage is fixed) W bulb has B) If the 100 W bulb is operated continuously for 2 full days and electric energy costs $0.12 per kWh, how much does it cost? Convert W to kW multiply by the number of hours to get kW.h multiply by...
Fermi Energy Eqn. 4.22 in Kasap gives the Fermi energy (at 0 K) as is the conduction electron con...
Fermi Energy Eqn. 4.22 in Kasap gives the Fermi energy (at 0 K) as is the conduction electron concentration. This is equivalent to the equation we derived in class. Kasap Eqn. 4.23 gives the Fermi energy as a function of temperature: EFEF1 a. If each copper atom contributes one conduction electron, what is the Fermi energy of copper at 29:3 b. Since this Fermi energy was derived from the Sommerfeld model, the energy is entirely kinetic 12 LEFo K? energy...
A certain bivalent metal has a density of 7.239 g/cm3 and a molar mass of 105...
A certain bivalent metal has a density of 7.239 g/cm3 and a molar mass of 105 g/mol. Calculate (a) the number density of conduction electrons, (b) the Fermi energy, (c) the Fermi speed, and (d) the de Broglie wavelength corresponding to this electron speed.
Beryllium has a density of 1.83g/cm^3 and a molar mass of 9.01g/mol. A slab of beryllium...
Beryllium has a density of 1.83g/cm^3 and a molar mass of 9.01g/mol. A slab of beryllium of thickness 1.4 mm and width 1.2 cm carries a current of 3.75A in a region in which there is a magnetic field of magnitude 1.88 T perpendicular to the slab. The Hall voltage is measured to be 0.130 uV. a) Calculate the number density of the charge carriers. b) Calculate the number density of atoms in beryllium. c) How many free electrons are...
Having trouble with these 4 condensed matter review problems. Have a test tomorrow and would like...
Having trouble with these 4 condensed matter review problems. Have a test tomorrow and would like to be prepared! Any help is appreciated and good answers will get a good review!! 1.) Resistivity of aluminum (density 2700 kg/m^3) at room temperature is 2.62x10^-8 ohm-m. Calculate the relaxation time, and drift velocity of conduction electron in a field of 50 mV. 2.) Calculate the temperature at which there is one percentage probability that a state with an energy 0.5 eV above...
a) (10 points) Calculate the occupation probability f(E), that is the probability that a state will be occupied, at 293 K for a state at the bottom of the conduction band in germanium. The energy of the gap is Eg= 0.67 eV and assume that the Fermi energy lies in the middle of the gap. b) (20 points) Aluminum is a good electrical conductor with a density of 2.7 g/cm3 and a molar mass of 27 g/mol. Each aluminum atom...
13. The resistivity of aluminum at 25 'C has been measured to be 2.72 x 10-8 0 m. The thermal coefficient of resistivity of aluminum at 0 C is 4.29 x 10-3 K-1. Aluminum has a valency of 3, a density of 2.70 g cm3, and an atomic mass of 27 a. Calculate the resistivity of aluminum at-40°С. (Ans: 2.03 x 103 Ω m) b. What is the thermal coefficient of resistivity at-40'C? (Ans: 5.23x 103K c. Estimate the mean...
3. (20 points) The resistivity of aluminum at 0'C has been measured to be 2.46 x 10-82m The thermal coefficient of resistivity of aluminum at -40°C is 5.18 x 10-8K-1. Aluminum has a valency of 3, a density of 2.70g cm-3, and an atomic mass of 27. Answer the following questions: (a). Calculate the resistivity of aluminum at 25 C (b). What is the thermal coefficient of resistivity of aluminum at 25'C? (c). Estimate the mean free time between collisions...
all of 8 please.
8. An aluminum wire carrying a current of 5 A has a cross sectional area of 4 x 10'6 m2. Find the drift speed of the electrons in the wire. The density of aluminum is 2.7 g/cm3. (Assume three electrons are supplied by each atom). a) Recall the mass flow rate equation from semester 1. Rms Ro v b) Write the equivalent current relation for charges in a wire, I- c) What is the electrical analogy...
2) Silver has a density of 10.5 x 103 kg/m3 and a resistivity of 1.60 x 10-8 m at room temperature. (a) On the basis of the classical free electron gas model, and assuming that each silver atom contributes one electron to the electron gas, calculate the average time between collisions of the electrons. (b) Calculate the mean free path from t and the electron's thermal velocity. (c) How does the mean free path compare to the lattice spacing?
7. Two light bulbs with ratings of 40 W and 100 W are plugged into sockets supplying 110 V. A) Calculate the resistance of each. Which has more resistance? The more resistance. (Notice that voltage is fixed) W bulb has B) If the 100 W bulb is operated continuously for 2 full days and electric energy costs $0.12 per kWh, how much does it cost? Convert W to kW multiply by the number of hours to get kW.h multiply by...
Fermi Energy Eqn. 4.22 in Kasap gives the Fermi energy (at 0 K) as is the conduction electron concentration. This is equivalent to the equation we derived in class. Kasap Eqn. 4.23 gives the Fermi energy as a function of temperature: EFEF1 a. If each copper atom contributes one conduction electron, what is the Fermi energy of copper at 29:3 b. Since this Fermi energy was derived from the Sommerfeld model, the energy is entirely kinetic 12 LEFo K? energy...
