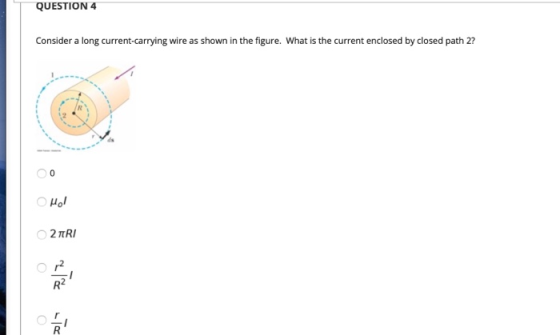

QUESTION 4 Consider a long current-carrying wire as shown in the figure. What is the current...

Question

Question

science physics

Answer 1

Answer #1

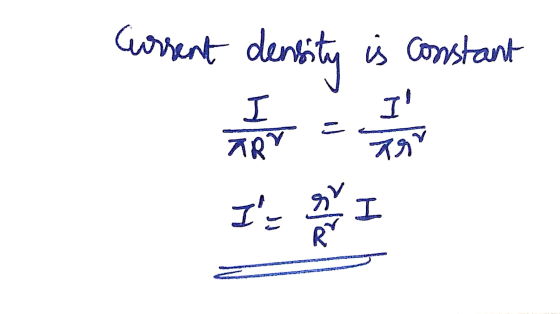

current density is constant I I TRY Tor Is en I

Answer 2

Similar Homework Help Questions

QUESTION 3 Consider a long current-carrying wire as shown in the figure. What is the magnitude...

QUESTION 3 Consider a long current-carrying wire as shown in the figure. What is the magnitude of font.de for closed path 1? Hol 2TR O Hol 2 TRI zero
QUESTION 7 Consider the current-carrying wire shown in the figure. What is the magnitude of the...

QUESTION 7 Consider the current-carrying wire shown in the figure. What is the magnitude of the magnetic field at point P due to current segment 1? 2 p. 3 Hol 2r O O Hol Hol O r zero Holl
4. A long wire carrying a current in the az direction produces a magnetic field of Hol -a nl Find...

Very lost, and have no clue where to start. 4. A long wire carrying a current in the az direction produces a magnetic field of Hol -a nl Find the circulation of the region located around a point a distance b from the wire (see the sketch below) 2Tt 0 ok In the sketch, the area around the point is shown a circle with radius a. Note that the circle is one of many contour geometries that can be used...

Shown in the figure below is a long hollow wire. The wire has an inner radius...

Shown in the figure below is a long hollow wire. The wire has an inner radius of a, an outer radius of b, and is carrying a current of I. Region I Region II Region III (r>b) (b>r>a) (r<a) infinite length Infinite Hollow Wire carrying Current Use Ampere's Law to determine the magnetic field in each of these three regions as a function of r: • Region 1 (b): • Region II (a<r<b): o What is the length of the...
Shown in the figure below is a long hollow wire. The wire has an inner radius...

Shown in the figure below is a long hollow wire. The wire has an inner radius of a, an outer radius of b, and is carrying a current of I. Region I Region II Region III (r>b) (b>r>a) (r<a) infinite length b) I Infinite Hollow Wire carrying Current I Use Ampere's Law to determine the magnetic field in each of these three regions as a function of r: • Region 1 (nb): • Region II (acreb): • What is the...
QUESTION 5 Consider a portion of a current-carrying wire as shown in the figure at right...

QUESTION 5 Consider a portion of a current-carrying wire as shown in the figure at right with the current direction as indicated. In determining the magnetic field at point P what will be the direction of † ? Р into the page in the same direction as the current out of the page towards point P to the left

A long, straight wire is carrying a current of 5.0 A in the direction shown in...

A long, straight wire is carrying a current of 5.0 A in the direction shown in the figure. The point P is 0.040 m from the wire. What is the direction of the magnetic field at point P due to the current in the wire? Question 23 options: 1) toward the bottom of the page 2) to the left of the page 3) out of the plane of the page 4) into the plane of the page 5) to the...
Consider the current-carrying wire shown in the figure. The current creates a magnetic field at the...

Consider the current-carrying wire shown in the figure. The current creates a magnetic field at the point P, which is the center of the arc segment of the wire. If 0 = 20.0°, the radius of the arc is 0.700 m, and the current is 2.00 A, what are the magnitude (in nT) and direction of the field produced at P? P i magnitude 285.7 Apply the Biot-Savart law. What will be the contributions of the segments of wire along...
Consider the long, straight, current-carrying wires shown in Figure 22-42. One wire carries a current of 2.4 A in...

Consider the long, straight, current-carrying wires shown in Figure 22-42. One wire carries a current of 2.4 A in the nega direction; the other wire carries a current of 4.5 A in the positive x direction. 16 cm B 16 cm 16 cm 16 cm 4.5 A Figure 22-42 (a) At which of the two points, A or B, do you expect the magnitude of the net magnetic field to be greater? point A point B same at A and...

Consider the two current-carrying wires shown in the figure. The current in wire 1 is 3.7...

Consider the two current-carrying wires shown in the figure. The current in wire 1 is 3.7 A; the current in wire 2 is adjusted to make the net magnetic field at point A equal to zero. Is the magnitude of the current in wire 2 greater than, less than, or the same as that in wire 1? Explain in 1 or more sentences.
