Problem 8: For normal reflection off the thin surface of a bubble made of soapy water...

Question

Question

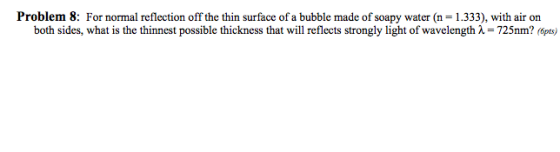

Problem 8: For normal reflection off the thin surface of a bubble made of soapy water (n=1.333), with air on both sides, what

science physics

Answer 1

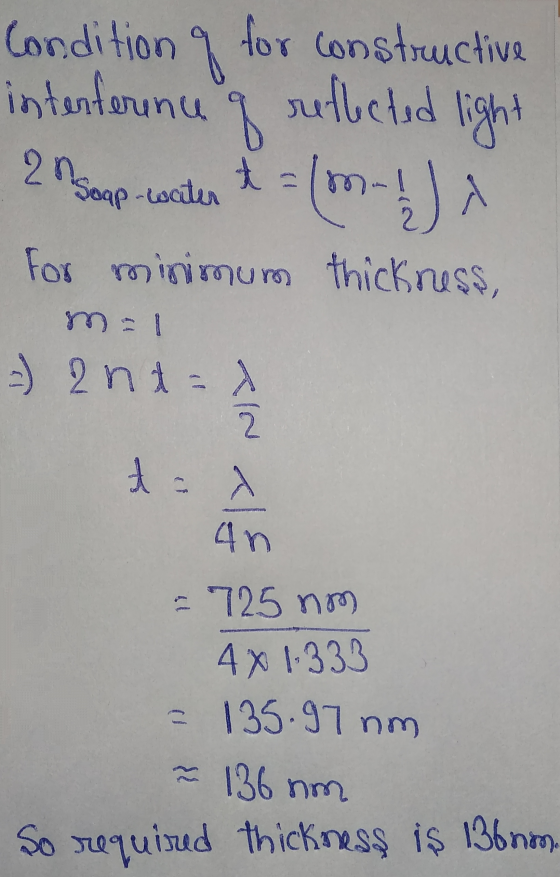

Answer #1

please upvote....thank u

Answer 2
