Consider an RC circuit with R=8.10 k, C=1.30 F. The rms applied voltage is 240 V...

Question

Question

Consider an RC circuit with R=8.10 k $\Omega$ , C=1.30 $\mu$ F. The rms applied voltage is 240 V at 60.0 Hz.

Part A:

What is the rms current in the circuit?

Part B:

What is the phase angle between voltage and current?

Part C:

What are the voltmeter readings across R and C?

science physics

Answer 1

Answer #1

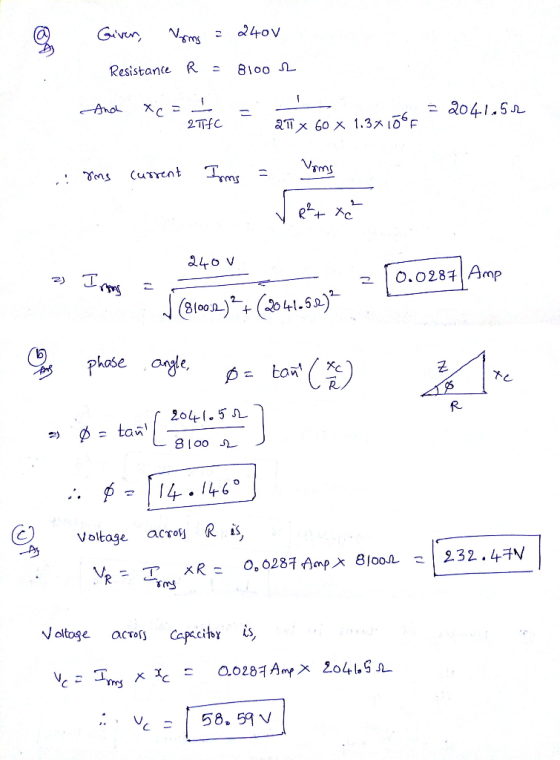

The answer for above problem is explained below.

Given, Vyms 240v Resistance R B100 2 1 Ano xc= 2TFC 2041.52 21 x 60 x 1.3x1065 Voms sms current Ims R²+ x² 240V 2) Irons 0.02
