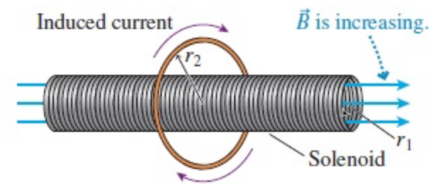

A solenoid passes through the center of a wire loop, as shown in (Figure 1).
A solenoid passes through the center of a wire loop, as shown in (Figure 1). The solenoid has 1200 turns, a diameter of 2.0 cm, and is 7.5 cm long. The resistance of the loop is 0.032 Ω.
Part A
If the current in the solenoid is increased by 1.3 A in 30 ms, what is the induced current in the loop?
Homework Answers
