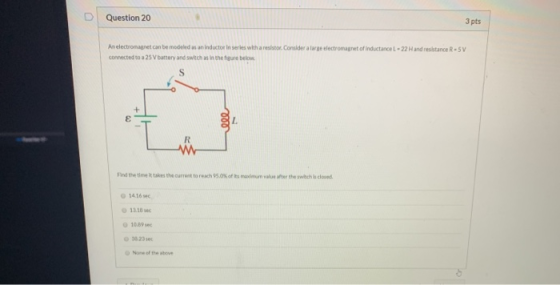

Question 20 3 pts An electromagnet can be madeled as an inductor in series with a...

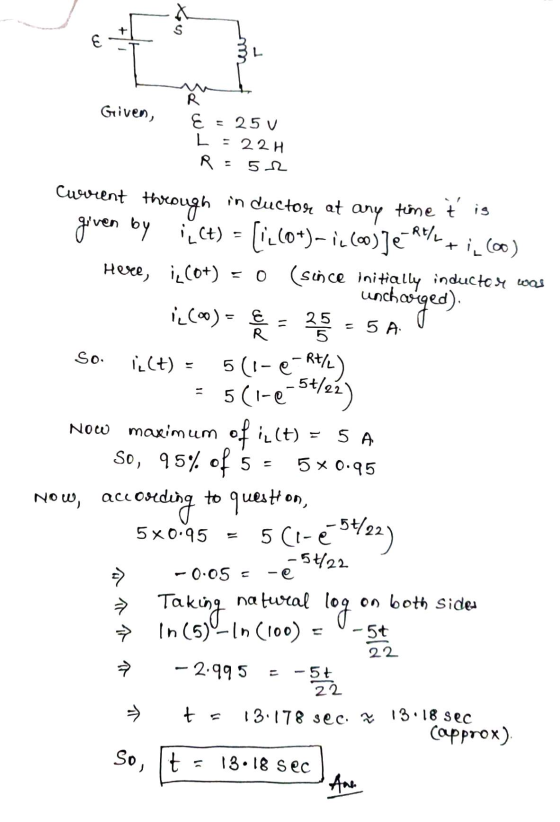

Question 20 An electromagnet can be modeled as an inductor in series with a resistor. Consider...
Question 20 An electromagnet can be modeled as an inductor in series with a resistor. Consider a large electromagnet of inductance L17 H and resistance R - 7.5V connected to a 19V battery and switch as in the figure below. s + E 000 L R W Find the time it takes the current to reach 95.0% of its maximum value after the switch is closed.
An electromagnet can be modeled as an inductor in series with a resistor. Con- sider a...
An electromagnet can be modeled as an inductor in series with a resistor. Con- sider a large electromagnet ε of inductance L = 12.0 H and resistance R 4.50 Ω connected to a 24.0 V bat- tery and switch as in Figure After the switch is closed, find the time it takes the current to reach 90.0% of its maximum value. A In(20) seconds B. 8 In(10) seconds C. n(30) seconds 4 D. 9 In(20) seconds
SerCP11 20.6.P.043. -13 points My Notes Ask Your Teaches An electromagnet can be modeled as an...
SerCP11 20.6.P.043. -13 points My Notes Ask Your Teaches An electromagnet can be modeled as an inductor in series with a resistor. Consider a large electromagnet of inductancee L14.0 H and resistance R 3.00 0 connected to a 12.0-V battery and switch as in the fiqure shown below. After the switch is closed, find the following (a) the maximum current carried by the electromagnet (b) the time constant of the circuit (c) the time it takes the current to reach...
The figure below shows a circuit consisting of a 12.0V battery in series with an inductor...
The figure below shows a circuit consisting of a 12.0V battery in series with an inductor with inductance - 11.0 H, a resistor with resistance R - 2.500, and a switch, Initially open, (a) After the switch is closed, what is the maximum current in A) that will flow through the circuit? (b) What is the time constant (ins) of the circuit? (c) After the switch is closed, how much time (ins) does it take for the current to reach...
12. An uncharged capacihor (capacitonce C) is connected in series of the followin 13. An inductor...
12. An uncharged capacihor (capacitonce C) is connected in series of the followin 13. An inductor (inductance L.) is connected in a series circuit with a 9V battery, a resistor (resistance R) and a switch. The switch is closed at t-0. Which of the following describes the current in the circuit as a function of time? 9V four different sets of wires that cross each other without actually ll four cases, and the directions of
A 24-V battery is connected in series with a resistor and an inductor, with R =...
A 24-V battery is connected in series with a resistor and an inductor, with R = 7.812 and L = 7.8 H, respectively. (a) Find the energy stored in the inductor when the current reaches its maximum value. Apply the expression for the energy stored in an inductor in terms of its inductance and the current through it. J Find the energy stored in the inductor one time constant after the switch is closed. Need Help? Read It Master It
A 33.0-V battery with negligible internal resistance, a 49.0-Ω resistor, and a 1.25-mH inductor with negligible...
A 33.0-V battery with negligible internal resistance, a 49.0-Ω resistor, and a 1.25-mH inductor with negligible resistance are all connected in series with an open switch. The switch is suddenly closed. How long after closing the switch will the energy stored in the inductor reach one-half of its maximum value?
An inductor of L = 7.75 H with negligible resistance is placed in series with a...
An inductor of L = 7.75 H with negligible resistance is placed in series with a 8 = 14.1 V battery, a R = 3.00 2 resistor, and a switch. The switch is closed at time t = 0 seconds. 0000 Calculate the initial current at t = 0 seconds. I(t = 0 s) = A R Calculate the current as time approaches infinity. Imax = A Calculate the current at a time of 2.07 s. I(t = 2.07 s)...
1. A circuit is composed of a capacitor connected in series to an inductor (L=2E-3 H)...
1. A circuit is composed of a capacitor connected in series to an inductor (L=2E-3 H) and resistor (R=100 Ohms). The capacitor is initially uncharged. What is the instantaneous current flowing through the circuit at time t = 0.34 s. 2. An LR circuit contains an ideal 50-V battery, a 42-H inductor having no resistance, a 21-Ω resistor, and a switch S, all in series. Initially, the switch is open and has been open for a very long time. At...
A 35.0-V battery with negligible internal resistance, a 50.0-Ω resistor, and a 1.25-mH inductor with negligible resistance are all...
A 35.0-V battery with negligible internal resistance, a 50.0-Ω resistor, and a 1.25-mH inductor with negligible resistance are all connected in series with an open switch. The switch is suddenly closed. How long after closing the switch will the current through the inductor reach one-half of its maximum value? How long after closing the switch will the energy stored in the inductor reach one-half of its maximum value?
Question 20 An electromagnet can be modeled as an inductor in series with a resistor. Consider a large electromagnet of inductance L17 H and resistance R - 7.5V connected to a 19V battery and switch as in the figure below. s + E 000 L R W Find the time it takes the current to reach 95.0% of its maximum value after the switch is closed.
An electromagnet can be modeled as an inductor in series with a resistor. Con- sider a large electromagnet ε of inductance L = 12.0 H and resistance R 4.50 Ω connected to a 24.0 V bat- tery and switch as in Figure After the switch is closed, find the time it takes the current to reach 90.0% of its maximum value. A In(20) seconds B. 8 In(10) seconds C. n(30) seconds 4 D. 9 In(20) seconds
SerCP11 20.6.P.043. -13 points My Notes Ask Your Teaches An electromagnet can be modeled as an inductor in series with a resistor. Consider a large electromagnet of inductancee L14.0 H and resistance R 3.00 0 connected to a 12.0-V battery and switch as in the fiqure shown below. After the switch is closed, find the following (a) the maximum current carried by the electromagnet (b) the time constant of the circuit (c) the time it takes the current to reach...
The figure below shows a circuit consisting of a 12.0V battery in series with an inductor with inductance - 11.0 H, a resistor with resistance R - 2.500, and a switch, Initially open, (a) After the switch is closed, what is the maximum current in A) that will flow through the circuit? (b) What is the time constant (ins) of the circuit? (c) After the switch is closed, how much time (ins) does it take for the current to reach...
12. An uncharged capacihor (capacitonce C) is connected in series of the followin 13. An inductor (inductance L.) is connected in a series circuit with a 9V battery, a resistor (resistance R) and a switch. The switch is closed at t-0. Which of the following describes the current in the circuit as a function of time? 9V four different sets of wires that cross each other without actually ll four cases, and the directions of
A 24-V battery is connected in series with a resistor and an inductor, with R = 7.812 and L = 7.8 H, respectively. (a) Find the energy stored in the inductor when the current reaches its maximum value. Apply the expression for the energy stored in an inductor in terms of its inductance and the current through it. J Find the energy stored in the inductor one time constant after the switch is closed. Need Help? Read It Master It
An inductor of L = 7.75 H with negligible resistance is placed in series with a 8 = 14.1 V battery, a R = 3.00 2 resistor, and a switch. The switch is closed at time t = 0 seconds. 0000 Calculate the initial current at t = 0 seconds. I(t = 0 s) = A R Calculate the current as time approaches infinity. Imax = A Calculate the current at a time of 2.07 s. I(t = 2.07 s)...
