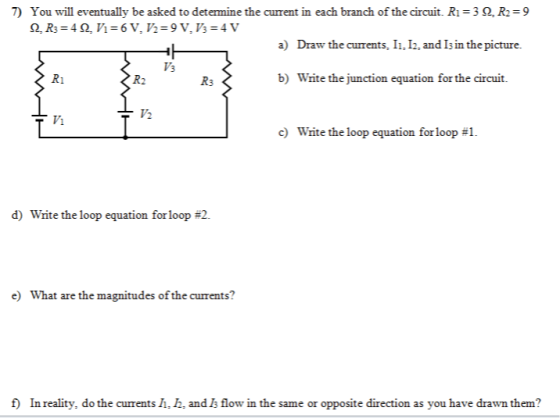

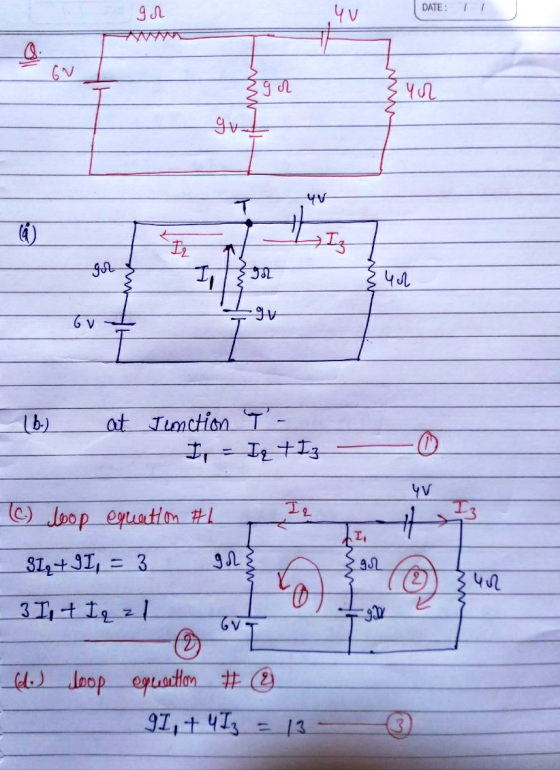

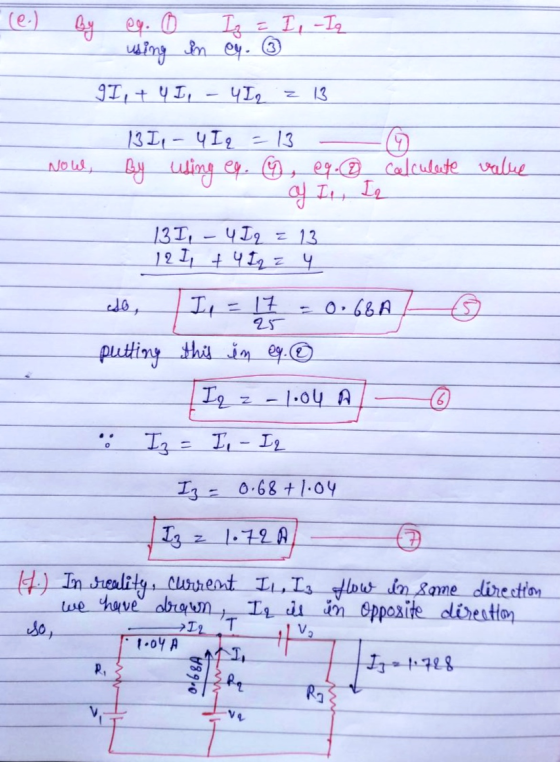

7) You will eventually be asked to determine the current in each branch of the circuit....
For the multi loop circuit shown in the Figure. What is the current in each branch...
For the multi loop circuit shown in the Figure. What
is the current in each branch ? SHOW all branch currents in the
diagram below. SHOW your loops in the diagram below.
Please TYPE or write neat so I can understand.
THANK YOU!!!
R1 = 2.0 22 R2 = 4.0 22 W V1 = 6.0 V R3 = 6.02 V3 = 6.0 V R5 = 10 22 V2 = 12 V R4 = 8.0 R6 = 12 22
Problem 2 (8 pts): Determine the current in each branch of the circuit shown in Figure...
Problem 2 (8 pts): Determine the current in each branch of the circuit shown in Figure below (2pts) (a) Write the two general rules of Kirchho f. (b) Write the three equations that determine these currents (4pts) (2pts) (c) What does it mean if the value for a current turns out to be negative? Ri 60 www R2-20 VI-9V- R-9 V2-3V ww R4-50 Equation 1: Equation 2 Equation 3: ..., ...I2+. ...I3= I+ +.. I,+. I2+ ...l3
Use the mesh-current method to find the branch currents i1, i2,and i3 in the circuit...
Use the mesh-current method to find the branch currents i1, i2,
and i3 in the circuit in figure (Figure 1) if v1 = 35 V and v3 = 81
V .Find the current i1.Find the current i2.Find the current i3.
For the above circuit, E1 = 3.57 V, E2 = 5.79 V. r1 = 0.591 Ω, r2 = 0.781 Ω, R1 = 41.3 Ω, R2 = 65...
For the above circuit, E1 = 3.57 V, E2 = 5.79 V.
r1 = 0.591 Ω, r2 = 0.781 Ω, R1 = 41.3 Ω, R2 = 65.1 Ω, R3 = 73.3
Ω.
a)Which equation would describe Kirchhoff's Junction Law at the
right junction?
A I1 - I2 = I3
B I1 + I2 = I3
C I1 + I3 = I2
D I1 = I2 + I3
b)Which equation would describe Kirchhoff's Loop Law for the
lower half-loop?
A E2...
1) 2) 3) Using Ohm's Law, the answer for 2 is: (don't need an answer for...
1)
2)
3)
Using Ohm's Law, the answer for 2 is: (don't need an answer for
number 3)
4)
R1 V. + R2 12 R3 https://drive.google.com/file/d/1WJUWDo8q7wGCQmwBgMvR04B_SY-MNJNN/view?usp=sharing Consider the circuit in Figure 2. We will assume that both the power supply's potentials V and V, along with the resistors R, through R3 are known quantities where the currents flowing through the circuit are unknown. Since there are three unknown currents in this circuit, three linearly independent equations are needed in order...
Assume the resistance values are R1 = 2,200 Ohm, R2 = 1,300 Ohm, R3 = 4,200...
Assume the resistance values are R1 = 2,200 Ohm, R2 = 1,300 Ohm, R3 = 4,200 Ohm, and R4 = 5,900 Ohm, and the battery emfs are epsilon1 = 1.5 V and Epsilon2 = 3.0 V. Use Kirchhoff?s rules to analyze the circuit in the figure below. (a) Let I1 be the branch current though R1, I2 be the branch current through R2, and I3 be the branch current through R3. Write Kirchhoff?s loop rule relation for a loop that...
In the circuit shown in the figure. R1 = 15,00 Ohm, R2 = 10.0 Ohm, R3...
In the circuit shown in the figure. R1 = 15,00 Ohm, R2 = 10.0 Ohm, R3 = 5.0 Ohm, V emf,1 = 15.0 V. and Vemf,2 = 10.0 V. Using Kirchhoff's Loop and Junction Rules, determine the currents i1, i2, and i3 flowing through R1, R2, and R3, respectively, in the direction indicated in the figure.
1. For the circuit shown, the following is known: R1 = 82, R3 = 1.2, v2...
1. For the circuit shown, the following is known: R1 = 82, R3 = 1.2, v2 = -10 V, and i3 = 2 A. Determine the unknown voltages and currents (V1, V3, i1, and i2) as well as R2. R2 02 12 V iztiz R3 a 03 R1 U 1 10 V +
please help with problems 7 and 8, I am extremely confused! Part 2: Kirchhoff's Rules For...
please help with problems 7 and 8, I am extremely
confused!
Part 2: Kirchhoff's Rules For the circuit shown below, the directions of the currents through the circuit elements has been chosen arbitrarily. Using Kirchhoff's rules, you will determine the actual currents through the circuit elements. (Yes, this circuit could be analyzed using equivalent resistance, but don't do it that way.) R1: 752 Kirchhoff's Junction Rule 4) Start by choosing a junction. Write Kirchhoft's Junction rule for that junction below...
For the circuit below, determine the MAGNITUDE of the CURRENT passing through each resistor. V1 =...
For the circuit below, determine the MAGNITUDE of the
CURRENT passing through each resistor. V1 = 7 V,
V2 = 12 V, V3 = 4 V, R1 = 19 Ω,
R2 = 3 Ω, R3 = 6 Ω.
For the circuit below, determine the MAGNITUDE of the CURRENT passing through each resistor. V1-7 V, V2 = 12 V, V3 = 4 V, R1 = 19 Ω, R2-3 Ω, R3 = 6 Ω. R1 V I3-
For the multi loop circuit shown in the Figure. What
is the current in each branch ? SHOW all branch currents in the
diagram below. SHOW your loops in the diagram below.
Please TYPE or write neat so I can understand.
THANK YOU!!!
R1 = 2.0 22 R2 = 4.0 22 W V1 = 6.0 V R3 = 6.02 V3 = 6.0 V R5 = 10 22 V2 = 12 V R4 = 8.0 R6 = 12 22
Problem 2 (8 pts): Determine the current in each branch of the circuit shown in Figure below (2pts) (a) Write the two general rules of Kirchho f. (b) Write the three equations that determine these currents (4pts) (2pts) (c) What does it mean if the value for a current turns out to be negative? Ri 60 www R2-20 VI-9V- R-9 V2-3V ww R4-50 Equation 1: Equation 2 Equation 3: ..., ...I2+. ...I3= I+ +.. I,+. I2+ ...l3
Use the mesh-current method to find the branch currents i1, i2,
and i3 in the circuit in figure (Figure 1) if v1 = 35 V and v3 = 81
V .Find the current i1.Find the current i2.Find the current i3.
For the above circuit, E1 = 3.57 V, E2 = 5.79 V.
r1 = 0.591 Ω, r2 = 0.781 Ω, R1 = 41.3 Ω, R2 = 65.1 Ω, R3 = 73.3
Ω.
a)Which equation would describe Kirchhoff's Junction Law at the
right junction?
A I1 - I2 = I3
B I1 + I2 = I3
C I1 + I3 = I2
D I1 = I2 + I3
b)Which equation would describe Kirchhoff's Loop Law for the
lower half-loop?
A E2...
1)
2)
3)
Using Ohm's Law, the answer for 2 is: (don't need an answer for
number 3)
4)
R1 V. + R2 12 R3 https://drive.google.com/file/d/1WJUWDo8q7wGCQmwBgMvR04B_SY-MNJNN/view?usp=sharing Consider the circuit in Figure 2. We will assume that both the power supply's potentials V and V, along with the resistors R, through R3 are known quantities where the currents flowing through the circuit are unknown. Since there are three unknown currents in this circuit, three linearly independent equations are needed in order...
Assume the resistance values are R1 = 2,200 Ohm, R2 = 1,300 Ohm, R3 = 4,200 Ohm, and R4 = 5,900 Ohm, and the battery emfs are epsilon1 = 1.5 V and Epsilon2 = 3.0 V. Use Kirchhoff?s rules to analyze the circuit in the figure below. (a) Let I1 be the branch current though R1, I2 be the branch current through R2, and I3 be the branch current through R3. Write Kirchhoff?s loop rule relation for a loop that...
In the circuit shown in the figure. R1 = 15,00 Ohm, R2 = 10.0 Ohm, R3 = 5.0 Ohm, V emf,1 = 15.0 V. and Vemf,2 = 10.0 V. Using Kirchhoff's Loop and Junction Rules, determine the currents i1, i2, and i3 flowing through R1, R2, and R3, respectively, in the direction indicated in the figure.
1. For the circuit shown, the following is known: R1 = 82, R3 = 1.2, v2 = -10 V, and i3 = 2 A. Determine the unknown voltages and currents (V1, V3, i1, and i2) as well as R2. R2 02 12 V iztiz R3 a 03 R1 U 1 10 V +
please help with problems 7 and 8, I am extremely
confused!
Part 2: Kirchhoff's Rules For the circuit shown below, the directions of the currents through the circuit elements has been chosen arbitrarily. Using Kirchhoff's rules, you will determine the actual currents through the circuit elements. (Yes, this circuit could be analyzed using equivalent resistance, but don't do it that way.) R1: 752 Kirchhoff's Junction Rule 4) Start by choosing a junction. Write Kirchhoft's Junction rule for that junction below...
For the circuit below, determine the MAGNITUDE of the
CURRENT passing through each resistor. V1 = 7 V,
V2 = 12 V, V3 = 4 V, R1 = 19 Ω,
R2 = 3 Ω, R3 = 6 Ω.
For the circuit below, determine the MAGNITUDE of the CURRENT passing through each resistor. V1-7 V, V2 = 12 V, V3 = 4 V, R1 = 19 Ω, R2-3 Ω, R3 = 6 Ω. R1 V I3-
