Homework Answers

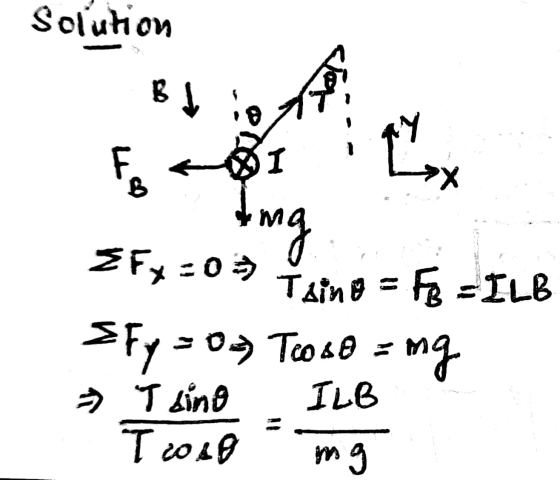

The angle is 11.07o from the y axis.
Add Answer to:

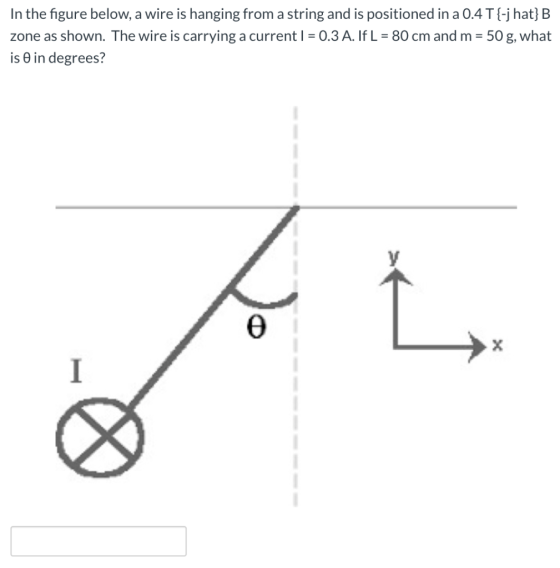

In the figure below, a wire is hanging from a string and is positioned in a...
