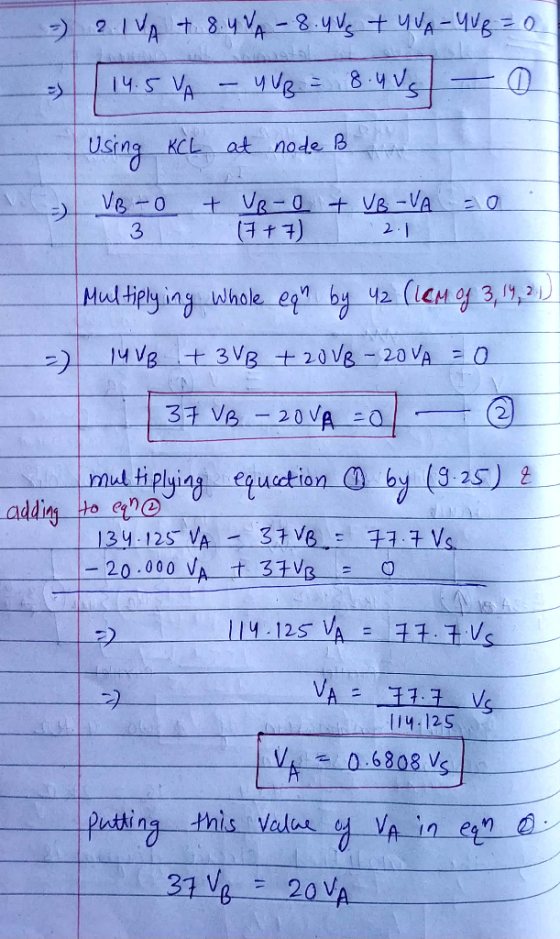

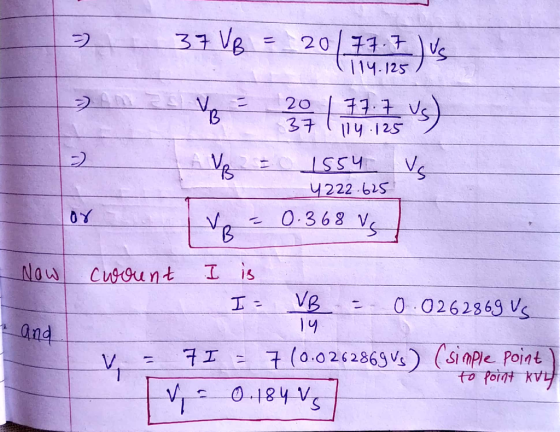

Detailed and step wise solution to this question is provided in the images down below. If you have any doubt regarding solution, you may put a comment, i will definitely help. And if you like the work please give a thumbs up. Thank you!



Determine the voltage v1 in terms of the supply voltage vs for the circuit shown in...

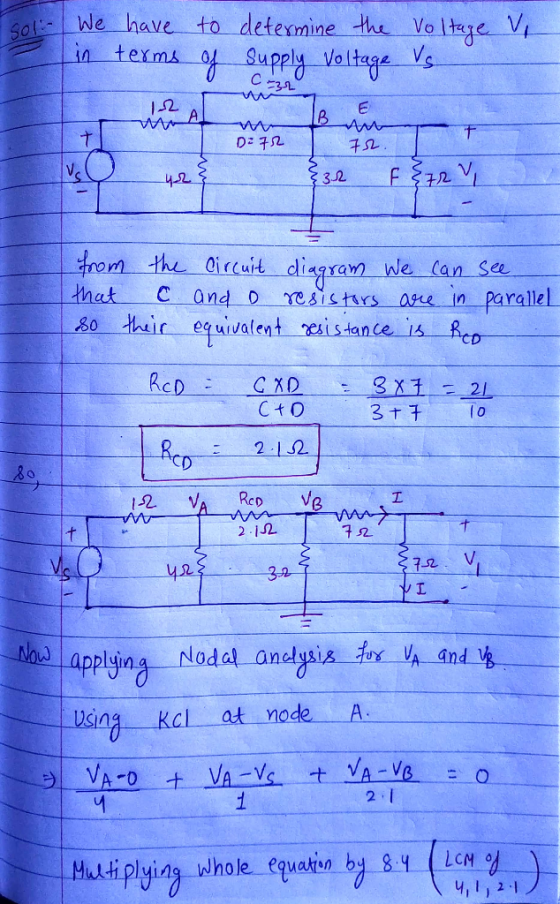

Determine the voltage vy in terms of the supply voltage vs for the circuit shown in the figure, where C=60 D=902 E=52 F=30 es 112 yr Bwin 303 403 VI The voltage viis Vs.
Determine the gain Vo/Vs of the circuit shown below. Given Vs = 4V Rs1 = 712 RF1 = 112 Rs2 = 322 RF2 = 822 RF1 Rs1 RF2 w RS2 + + VO Vs 어
For the circuit shown, the power absorbed or supplied by the independent voltage Source 5 lx Vs 60V 200 0.25 Vs 50 } Select one: O a. 360 W (absorbed) b. - 675 W (supply) C. - 1620 W (supply) O d. 2356 W (absorbed) Clear my choice
In the circuit shown below, let vs-100e-80% for t 0 with v1(0) 20 v (a) Find i(t) for t 2 0 (b) Find v1(t) for t 2 0. (c) Find v2(t) for t2 0. (d) Find the energy stored in the 2 μ-capacitor at-40ms. 01 i(t) U2
Problem #3: If the circuit in Problem #1 was designed to supply voltage to a load (RL) to be connected between node C and node D as shown below Vs=5 V R1 =2702 R2 = 990 22 R3 = 990 22 R4 = 1100 12 R5 = 330 22 s (a) [20] Determine the Thevenin equivalent circuit for the load (RL). (b) [5] Calculate the power transferred to the load if RL = 990 32. (C) [5] What is the...
In the circuit shown in Figure P5 (a). Determine an expression for the output voltage (b). Assume si .910 cos(or)+v,). vs 3.1x10cos(v,(), S2 ouut determine the numerical value of, the output voltage. Figure P5.
1. For the circuit shown in figure P-01, determine a. Coupling coefficient of coupled inductors! b. The voltage, Vx as shown in the circuit! C. Energy stored inside the coupled inductors! ML 2Ω Figure P-01 2. For the ideal transformer circuit shown in figure P-02, determine a. Primary and secondary currents, Ii and I2! b. Primary and secondary voltages, Yi and V2! C. Complex power supplied by the source 1, 2Ω 1:2 6090V ms svo 12Ω Figure P-02
1. For...
b) A periodic voltage vs(t) is applied to a RLC circuit shown in Figure 1 (b) with R=10012, L=100mH and C=1pF. The first four nonzero terms in the Fourier series is given by the following: v:(t) = 10 +2 sin(10’t)-1sin(2x10't)+sin(3x10°r) v Find the first four nonzero terms in the Fourier series of the steady-state current iſt). (20 marks) R M v.(t) Tv.(t) Figure 2(b): Circuit for Question 2
b. Determine the symbolic expression for Vo2/V2 (Vo2: output
voltage contributed by V2 when V1 = 0).
c Determine the symbolic expression for Vo in terms of V1 and V2
using superposition.
d. This circuit is (circle two):
Non-inverting amp / Inverting amp / subtractor / adder
R1 R3 (4) (22%) Consider the op-amp circuit shown to the right. Assume the op-amp is ideal and operating in the linear range. Answer the following questions. M3 MV + (a) (7%) Determine...
The power supply of the circuit shown in the given figure supplies a voltage A = 7 V. Compute the current / and the power P that must be supplied 30 kn 80 kn 40 kn The current for the given circuit is 7x104A The power P that must be applied is [ *10-3 w.
