Homework Answers
As given current state next state and future state output F is also given so when we put value of C and D line in circuit we get the same answer means the correct answer is option E
Suppose take current state values 111 then we get the F= 0 do this one by one to crosscheck your answer
Add Answer to:

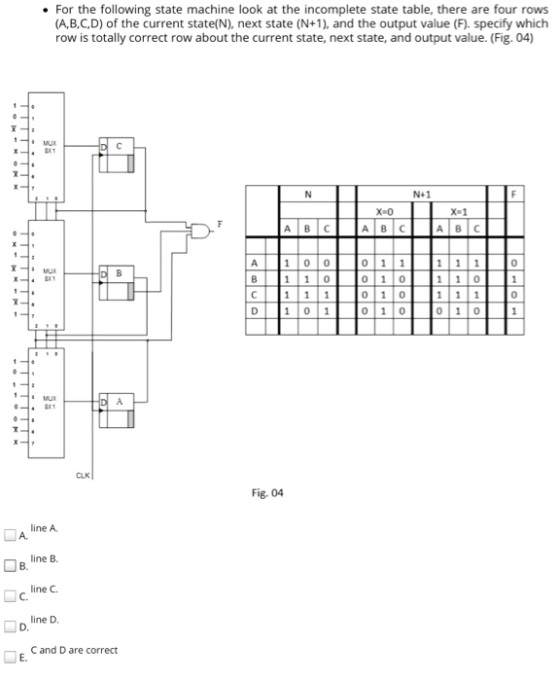

. For the following state machine look at the incomplete state table, there are four rows...
1 • For the state reduction on the following state table using implication table which of...
1 • For the state reduction on the following state table using implication table which of the following statements are correct? (Fig. 23) Present Next State Present Output State X=0 1 X=0 1 a h с 0 b с d 0 1 с h b 0 0 d f h 0 0 e с f 0 f f g 0 0 g g с 0 h a с 0 1 1 1 Fig. 23 A. a & b could be...
P5 (20 points): The following Moore FSM state table is incomplete. The clock for this FSM...
P5 (20 points): The following Moore FSM state table is incomplete. The clock for this FSM (FSM 1) has a period of 100 microseconds such that the button for the input X, controlled by the user, cannot be pressed for only one clock cycle. In addition, button X, when pressed, will output X=0. Current Next State Output State X=0 X=1 w A reset) o IB A B 0 D G I: Draw a state diagram for this state table. II:...
Consider the following state diagram, which items on the state table is correct for the switch...
Consider the following state diagram, which items on the state table is correct for the switch between states and output values. (Fig. 30) So S7 Food S Sz SS l%0 S2 Sc 70 %0 So Next state Z2Z1 Current state A. B. C. D. SO S1 S2 S3 X=0 S3 S4 S3 S3 X=1 X=0 S1 00 S1 01 10 S4 00 Fig. 30 X=1 00 00 10 00 S2 A. Line A on the table Line B on the...
Consider the following state diagram, which items on the state table is correct for the switch...
Consider the following state diagram, which items on the state table is correct for the switch between states and output values. (Fig. 31) So S1 YO S Sz %0 Ss S2 S4 0 So Next state Z2Z1 Current state A. B. C. D. S4 S5 S6 S7 X=0 54 S5 S5 S5 X=1 X=0 S1 01 S6 00 S7 01 S4 10 Fig. 31 X=1 10 00 00 00 A. Line A on the table OB Line B on the...
Table Q4.1 shows the state transition table for a finite state machine (FSM) with one input...
Table Q4.1 shows the state transition table for a finite state
machine (FSM) with one input x, one output z and eight states.
(a) Copy the table of Table Q4.2 into your examination book and
determine the states and outputs for the input listed, assuming a
start current state of ‘1’. Determine what function the FSM is
performing.
(b) Using the implication chart method, determine the minimal
number of states. Show clearly your analysis.
(c) Draw the reduced state transition...
Q6: Consider a finite state machine with the following state table: N/S P/S Output X=0 X=1...
Q6: Consider a finite state machine with the following state table: N/S P/S Output X=0 X=1 Z A A B 0 B С A 1 С D A 1 D E F 1 E B F 1 F F E 0 G F E 0 H A B 0 I E K B F 1 L D A 1 F 1 a) reduce its states by using state table minimization. b) select an assignment for its states.
Consider the following circuit which contains 2 Mux 8x1, one 3-bit binary count-up counter, and some...
Consider the following circuit which contains 2 Mux 8x1, one 3-bit binary count-up counter, and some logic gates along with the timing diagram of 5 output lines L1 to L5. (Fig. 18) which of the timing lines (L1 to L5) can represent the F4 function based on MUX inputs. . 1 0 1 1 0 0 + F1 MUX 3x8 clk 1 . . 1 1 L1 CLK Binary Counter L2 L3 0 1 1 L4 13 MUX 3x8 4...
Using the implication table method, minimize the number of states in the finite state machine whose...
Using the implication table method, minimize the number of
states in the finite state machine whose state and output
transition table is shown below.
You must submit:
a. All implication tables used for minimization. As it comes in the
examples on the class slides.
b. The state and output transition table showing the minimized
MEF.
PS NS A B с D E F G X = 0 A с A C G C E X = 1 B A D...
SEQUENCE is 101 In Lab Procedure 1. Draw the state diagram of the state machine below...
SEQUENCE is 101
In Lab Procedure
1. Draw the state diagram of the state machine below and show it
to the lab instructor.
2. Fill the state table.
3. Assign State numbers
4. Find simplified Expressions (State Equations) for the
flip-flops
5. Draw the circuit diagram using NAND GATES ONLY for the state
machine
STATE DIAGRAM::
STATE TABLE::
State Table Next State Qc Y DA DB Dc Present State QA Qв 0 0 0 0 0 0 0 0 0...
Regarding the following diagram is related to the sequential detector, which of the following statements are...
Regarding the following diagram is related to the sequential detector, which of the following statements are correct? (Fig. 27) a X=0 000 Y=0 110 b 100 1/0 0/0 с 010 0/0 е d 110 1/0 h 10/1 g 111 011 1/0 1/1 0/0 o/1 h 111 011 101 001 101 001 0/0 1/0 1/0 a 110 010 100 000 Fig. 27 This detector can recognize 011 & 101 codes A. Realization of this state machine needs 3-FFs without state reduction...
1 • For the state reduction on the following state table using implication table which of the following statements are correct? (Fig. 23) Present Next State Present Output State X=0 1 X=0 1 a h с 0 b с d 0 1 с h b 0 0 d f h 0 0 e с f 0 f f g 0 0 g g с 0 h a с 0 1 1 1 Fig. 23 A. a & b could be...
P5 (20 points): The following Moore FSM state table is incomplete. The clock for this FSM (FSM 1) has a period of 100 microseconds such that the button for the input X, controlled by the user, cannot be pressed for only one clock cycle. In addition, button X, when pressed, will output X=0. Current Next State Output State X=0 X=1 w A reset) o IB A B 0 D G I: Draw a state diagram for this state table. II:...
Consider the following state diagram, which items on the state table is correct for the switch between states and output values. (Fig. 30) So S7 Food S Sz SS l%0 S2 Sc 70 %0 So Next state Z2Z1 Current state A. B. C. D. SO S1 S2 S3 X=0 S3 S4 S3 S3 X=1 X=0 S1 00 S1 01 10 S4 00 Fig. 30 X=1 00 00 10 00 S2 A. Line A on the table Line B on the...
Consider the following state diagram, which items on the state table is correct for the switch between states and output values. (Fig. 31) So S1 YO S Sz %0 Ss S2 S4 0 So Next state Z2Z1 Current state A. B. C. D. S4 S5 S6 S7 X=0 54 S5 S5 S5 X=1 X=0 S1 01 S6 00 S7 01 S4 10 Fig. 31 X=1 10 00 00 00 A. Line A on the table OB Line B on the...
Table Q4.1 shows the state transition table for a finite state
machine (FSM) with one input x, one output z and eight states.
(a) Copy the table of Table Q4.2 into your examination book and
determine the states and outputs for the input listed, assuming a
start current state of ‘1’. Determine what function the FSM is
performing.
(b) Using the implication chart method, determine the minimal
number of states. Show clearly your analysis.
(c) Draw the reduced state transition...
Q6: Consider a finite state machine with the following state table: N/S P/S Output X=0 X=1 Z A A B 0 B С A 1 С D A 1 D E F 1 E B F 1 F F E 0 G F E 0 H A B 0 I E K B F 1 L D A 1 F 1 a) reduce its states by using state table minimization. b) select an assignment for its states.
Consider the following circuit which contains 2 Mux 8x1, one 3-bit binary count-up counter, and some logic gates along with the timing diagram of 5 output lines L1 to L5. (Fig. 18) which of the timing lines (L1 to L5) can represent the F4 function based on MUX inputs. . 1 0 1 1 0 0 + F1 MUX 3x8 clk 1 . . 1 1 L1 CLK Binary Counter L2 L3 0 1 1 L4 13 MUX 3x8 4...
Using the implication table method, minimize the number of
states in the finite state machine whose state and output
transition table is shown below.
You must submit:
a. All implication tables used for minimization. As it comes in the
examples on the class slides.
b. The state and output transition table showing the minimized
MEF.
PS NS A B с D E F G X = 0 A с A C G C E X = 1 B A D...
SEQUENCE is 101
In Lab Procedure
1. Draw the state diagram of the state machine below and show it
to the lab instructor.
2. Fill the state table.
3. Assign State numbers
4. Find simplified Expressions (State Equations) for the
flip-flops
5. Draw the circuit diagram using NAND GATES ONLY for the state
machine
STATE DIAGRAM::
STATE TABLE::
State Table Next State Qc Y DA DB Dc Present State QA Qв 0 0 0 0 0 0 0 0 0...
Regarding the following diagram is related to the sequential detector, which of the following statements are correct? (Fig. 27) a X=0 000 Y=0 110 b 100 1/0 0/0 с 010 0/0 е d 110 1/0 h 10/1 g 111 011 1/0 1/1 0/0 o/1 h 111 011 101 001 101 001 0/0 1/0 1/0 a 110 010 100 000 Fig. 27 This detector can recognize 011 & 101 codes A. Realization of this state machine needs 3-FFs without state reduction...
