Question

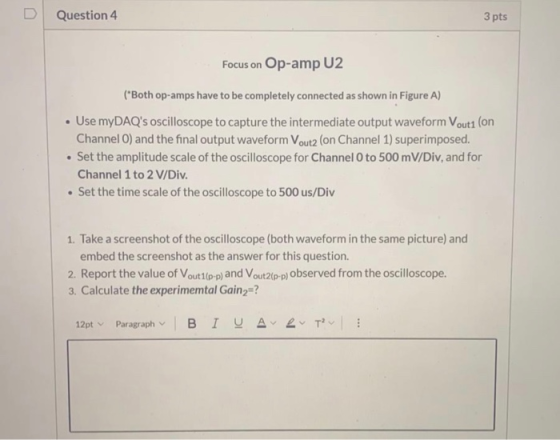

Question 4 3 pts Focus on Op-amp U2 (Both op-amps have to be completely connected as shown in Figure A) • Use myDAQs oscill
0 0
Add a comment Improve this question Transcribed image text
Answer #1

If you have any doubt ask in the comment section below.

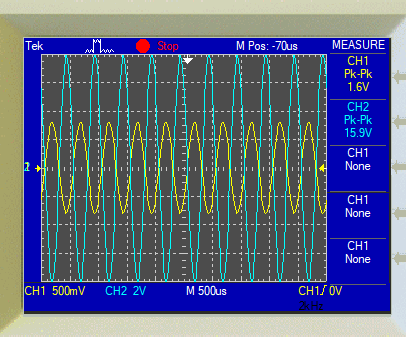

Tek han Stop M Pos: -70us MEASURE CH1 Pk-Pk 1.6V CH2 Pk-Pk 15.9V CH1 None CH1 None CH1 None CH1 500mV CH2 2V M 500us CH1/ OV

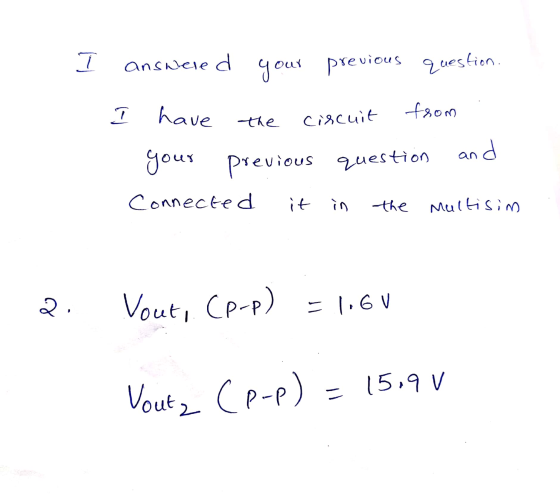

I answered evious pre your question. 7 have from the circuit and an question your previo lious Connected it in the Multisim 2

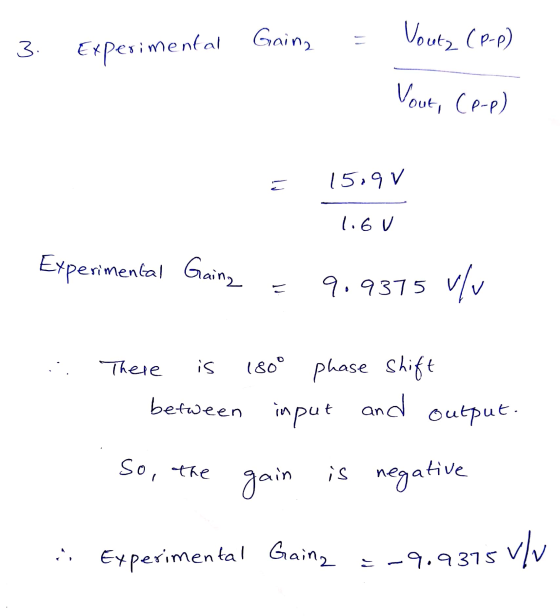

Mu Gaine Voutz (P-P) 3. Experimental Vout, Cp-p) E 15.91 1.6u Experimental Gaing と 9.9375 is t There 180° phase Shift between

Add a comment
Know the answer?
Add Answer to:
Question 4 3 pts Focus on Op-amp U2 ("Both op-amps have to be completely connected as...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
