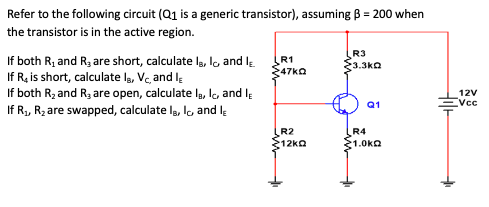

Refer to the following circuit (Q1 is a generic transistor), assuming B = 200 when the transistor is in the active region. If

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

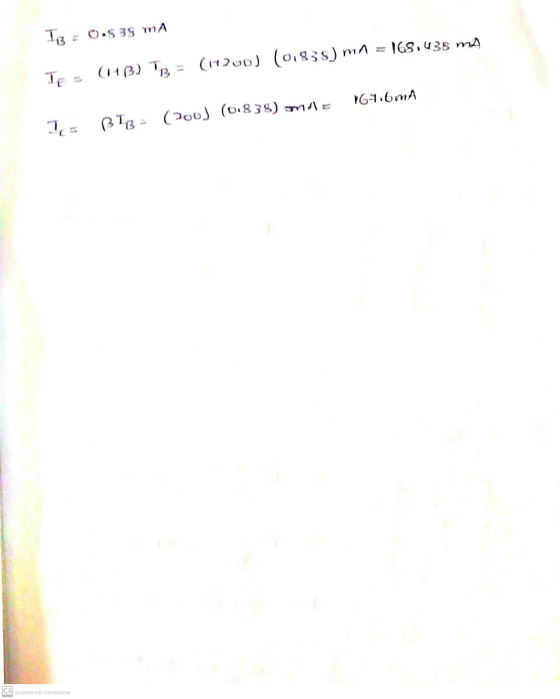

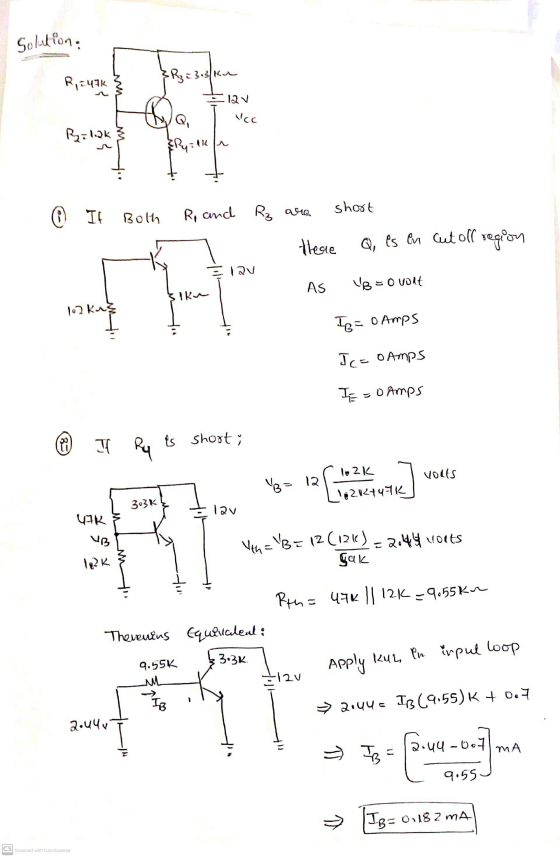

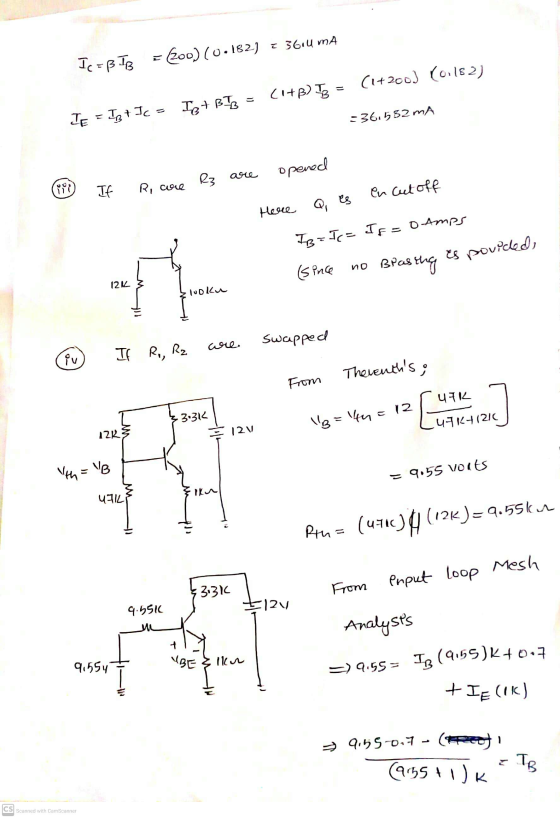

Solution. Ri47K {R₃ 13.3 Kv 12v Vcc Rilak Ryilka © It short Both R, and Rz are Here Q, es en cut oll region 12v AS VBE O vont\u7k41216 36.4 mA Ic=BIB = 200) (0.182) (1+200] (0.182) = (1+B) IS Iet BTB JE =TRIca =36.552 mA opened R3 are 0 If R, are enTg = 0.938 MA 168.438 m TE (143) R = (1+200) (0,835) min 16-1.6mA TE BTB = (200] (0.838) omne Scanned with CamScanner

0 0
Add a comment
Know the answer?
Add Answer to:
Refer to the following circuit (Q1 is a generic transistor), assuming B = 200 when the...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Refer to the following circuit (Q, is a generic transistor), assuming B = 200 when the...

    Refer to the following circuit (Q, is a generic transistor), assuming B = 200 when the transistor is in the active region. If R, is open, calculate VB, VEVO R3 If R, is short, calculate le, le and Vc 3.3k $47ko If R is short, calculate le and Vc If R, is short, calculate Vic, and I 12V Q1 Vcc R1 R2 3120 R4 1.0k

  • Refer to the following circuit (Q1 is a generic transistor), assuming β = 200 when the...

    Refer to the following circuit (Q1 is a generic transistor), assuming β = 200 when the transistor is in the active region. (1) If both R1 and R3 are short, calculate IB, IC, and IE. (2) If R4 is short, calculate IB, VC, and IE. (3) If both R2 and R3 are open, calculate IB, IC, and IE. (4) If R1, R2 are swapped, calculate IB, IC, and IE. R1 47ΚΩ R3 3.3kΩ 12V Vcc Q1 T R2 12kΩ R4...

  • Refer to the following circuit (Qi is a generic transistor), assuming ß = 200 when the...

    Refer to the following circuit (Qi is a generic transistor), assuming ß = 200 when the transistor is in the active region. R1 47ΚΩ R3 3.3ΚΩ 12V Vcc Q1 R2 12k2 R4 1.0kΩ (a) If R, is open, calculate VB, VE, Vc. (15 points) (b) If R, is short, calculate IB, Ig and Vc. (15 points) (c) If R2 is short, calculate le and Vc. (15 points) (d) If Rz is short, calculate VB, Ic, and IB. (15 points) (e)...

  • Refer to the following circuit (Q1 is a generic transistor), assuming β = 200 when the...

    Refer to the following circuit (Q1 is a generic transistor), assuming β = 200 when the transistor is in the active region. (a) If R1 is open, calculate VB, VE, VC. (b) If R1 is short, calculate IB, IE and VC. (c) If R2 is short, calculate IE and VC. (d) If R3 is short, calculate VB, IC, and IB. R1 47ΚΩ R3 3.3kΩ 12V Vcc Q1 R2 12kΩ R4 1.0kΩ

  • Need help with E-H 4. Refer to the following circuit (Qi is a generic transistor), assuming...

    Need help with E-H 4. Refer to the following circuit (Qi is a generic transistor), assuming B = 200 when the transistor is in the active region. R1 47kg R3 33.3ko 12V Vcc Q1 R2 12k R4 1.0kΩ (a) If R, is open, calculate VB, VE, Vc. (b) If R is short, calculate 1b, IE and Vc. (c) If R2 is short, calculate IE and Vc. (d) If R3 is short, calculate VB, Ic, and Ib. (e) If both Rj...

  • Need help with all A-H 4. Refer to the following circuit (Qi is a generic transistor),...

    Need help with all A-H 4. Refer to the following circuit (Qi is a generic transistor), assuming B = 200 when the transistor is in the active region. R1 47kg R3 33.3ko 12V Vcc Q1 R2 12k R4 1.0kΩ (a) If R, is open, calculate VB, VE, Vc. (b) If R is short, calculate 1b, IE and Vc. (c) If R2 is short, calculate IE and Vc. (d) If R3 is short, calculate VB, Ic, and Ib. (e) If both...
