Homework Answers
Add Answer to:

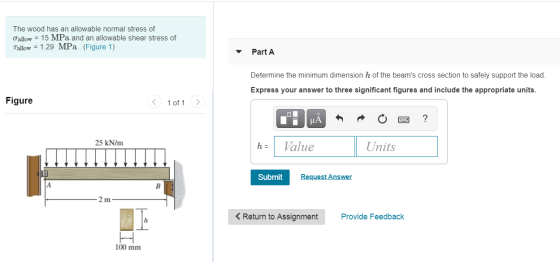

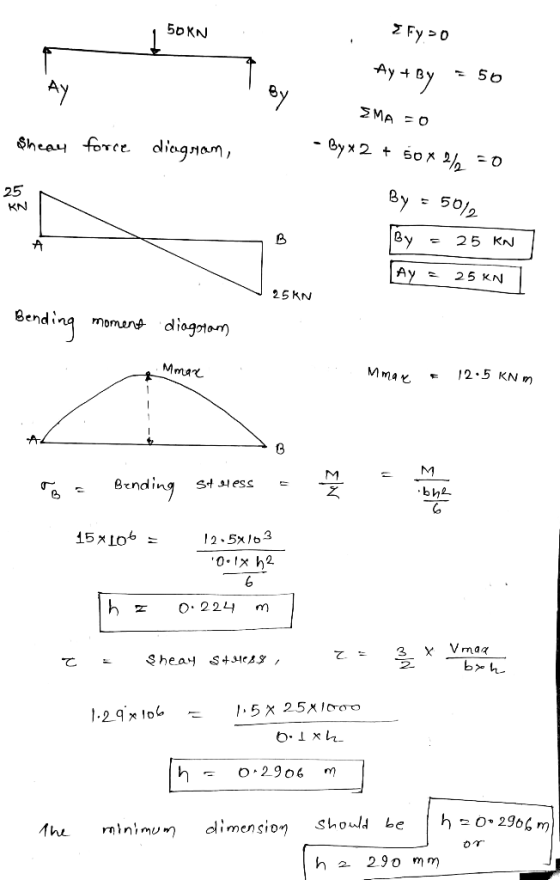

The wood has an allowable normal stress of allow = 15 MPa and an allowable shear...
The beam is made of timber that has an allowable bending stress of O allow =...
The beam is made of timber that has an allowable bending stress of O allow = 6.5 MPa and an allowable shear stress of Tallow = 500 kPa. Part A Determine its height if it is to be rectangular and have a height-to-width ratio of 1.22. (Figure 1) Figure < Express your answer with the appropriate units. 1 of 1 ? HA h = Value Units 8 kN/m Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining...
If the beam is made from wood having an allowable shear stress tallow = 3 MPa determine the maximum magnitude of P.
If the beam is made from wood having an allowable shear stress tallow = 3 MPa determine the maximum magnitude of P.
The wood beam has an allowable shear stress of 7 MPa. Determine the maximum shear force...
The wood beam has an allowable shear stress of 7 MPa. Determine the maximum shear force V that can be applied to the cross section. It is a 4 rectangles that make one rectangle with the left and right sides h=200mm b=50mm and the top and bottom are in line with the sides and inside each side and are h=50mm and b=100mm and V is in the center of it
The allowable bending stress is σ1ow-22 ksi and the allowable shear stress is Tallow 12 ksi....
The allowable bending stress is σ1ow-22 ksi and the allowable shear stress is Tallow 12 ksi. (Figure 1) Part A Select the lightest steel wide-flange beam from Appendix B that will safely support the loading shown. If there are several choicas of equal weight, choose the one with the shortest height. w14 × 26 W8 x 31 W10 × 39 w12 × 22 W12 × 26 W14 x 22 W10 × 30 W8 × 40 Submit Request Answer Figure 1...
The beam is constructed from three boards. (Figure 1) The allowable shear stress for the wood...
The beam is constructed from three boards. (Figure 1) The allowable shear stress for the wood is Tallow = 490 psi. Each nail can resist a shear force of 485 lb. Part A Determine the maximum loads P that it can support. Express your answer to three significant figures and include appropriate units. R ? .: Å Value O O Units Submit Request Answer Figure << 1 of 1 > Part B What is the maximum allowable spacing s of...
CIVL3322 Su18 Homework Set 1 Review Problem 1.3 The allowable normal stress for member BC is...
CIVL3322 Su18 Homework Set 1 Review Problem 1.3 The allowable normal stress for member BC is allow-29 ksi and the allowable shear stress for the pins is Tallow 10 ksi (Figure 1) Part A Determine the required thickness of member BC Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 t- 1 Value Units Submit Request Answer ? Part B 60 Determine the required diameter of the pin at A Express your answer...
The simply supported beam is built up from three boards by nailing them together as shown...
The simply supported beam is built up from three boards by nailing them together as shown B 1 100 mm 25 mm 25 mm- 1 200 mm 25 mm The wood has an allowable shear stress of Tallow = 1.3 MPa and an allowable bending stress of allow = 8 MPa The nails are spaced at s = 75 mm, and each has a shear strength of 1.9 kN. Part A Determine the maximum allowable force P that can be...
The allowable shear stress for the material is Tallow = 6 ksi. Pin A is subjected...
The allowable shear stress for the material is Tallow = 6 ksi. Pin A is subjected to double shear, whereas pin B is subjected to single shear. (Figure 1) Part A Determine the required diameter of the pins at A to the nearest 1/16 in. Express your answer as an exact decimal value and include appropriate units. da= Value Units Submit Request Answer Part B Determine the required diameter of the pin at B to the nearest 1/16 in. Express...
SO mm 50 mm - 100 mm Problem 4 - Shear Stress (25 pts) The wood...
SO mm 50 mm - 100 mm Problem 4 - Shear Stress (25 pts) The wood beam has an allowable shear stress of Tallow = 8 MPa. Determine the maximum shear force V that can be applied to the cross section. 50 mm 200 mm SO mm
The allowable tensile stress for wires AB and AC is allow = 175 MPa, and wire...
The allowable tensile stress for wires AB and AC is allow = 175 MPa, and wire AB has a diameter of 5.6 mm and AC has a diameter of 6.6 mm. WA Part A Determine the greatest force P that can be applied to the chain. Express your answer to three significant figures and include appropriate units. UA ? Pmax = Value Units Submit Request Answer
The beam is made of timber that has an allowable bending stress of O allow = 6.5 MPa and an allowable shear stress of Tallow = 500 kPa. Part A Determine its height if it is to be rectangular and have a height-to-width ratio of 1.22. (Figure 1) Figure < Express your answer with the appropriate units. 1 of 1 ? HA h = Value Units 8 kN/m Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining...
The allowable bending stress is σ1ow-22 ksi and the allowable shear stress is Tallow 12 ksi. (Figure 1) Part A Select the lightest steel wide-flange beam from Appendix B that will safely support the loading shown. If there are several choicas of equal weight, choose the one with the shortest height. w14 × 26 W8 x 31 W10 × 39 w12 × 22 W12 × 26 W14 x 22 W10 × 30 W8 × 40 Submit Request Answer Figure 1...
The beam is constructed from three boards. (Figure 1) The allowable shear stress for the wood is Tallow = 490 psi. Each nail can resist a shear force of 485 lb. Part A Determine the maximum loads P that it can support. Express your answer to three significant figures and include appropriate units. R ? .: Å Value O O Units Submit Request Answer Figure << 1 of 1 > Part B What is the maximum allowable spacing s of...
CIVL3322 Su18 Homework Set 1 Review Problem 1.3 The allowable normal stress for member BC is allow-29 ksi and the allowable shear stress for the pins is Tallow 10 ksi (Figure 1) Part A Determine the required thickness of member BC Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 t- 1 Value Units Submit Request Answer ? Part B 60 Determine the required diameter of the pin at A Express your answer...
The simply supported beam is built up from three boards by nailing them together as shown B 1 100 mm 25 mm 25 mm- 1 200 mm 25 mm The wood has an allowable shear stress of Tallow = 1.3 MPa and an allowable bending stress of allow = 8 MPa The nails are spaced at s = 75 mm, and each has a shear strength of 1.9 kN. Part A Determine the maximum allowable force P that can be...
The allowable shear stress for the material is Tallow = 6 ksi. Pin A is subjected to double shear, whereas pin B is subjected to single shear. (Figure 1) Part A Determine the required diameter of the pins at A to the nearest 1/16 in. Express your answer as an exact decimal value and include appropriate units. da= Value Units Submit Request Answer Part B Determine the required diameter of the pin at B to the nearest 1/16 in. Express...
SO mm 50 mm - 100 mm Problem 4 - Shear Stress (25 pts) The wood beam has an allowable shear stress of Tallow = 8 MPa. Determine the maximum shear force V that can be applied to the cross section. 50 mm 200 mm SO mm
The allowable tensile stress for wires AB and AC is allow = 175 MPa, and wire AB has a diameter of 5.6 mm and AC has a diameter of 6.6 mm. WA Part A Determine the greatest force P that can be applied to the chain. Express your answer to three significant figures and include appropriate units. UA ? Pmax = Value Units Submit Request Answer
