QUESTION 2 You need to design a storm drain pipe for an residential development to convey 55 cfs. The pipe is to be RCP (n=0.

engineering Civil-Engineering

Answer 1

Answer #1

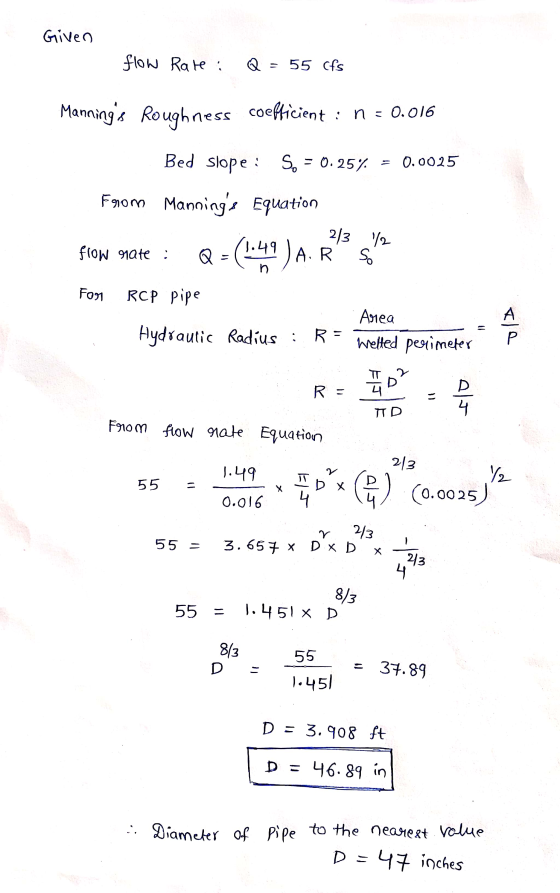

Given flow Rate : Q = 55 Cfs Mannings Roughness coefficient : n = 0.016 Bed slope: So = 0.25% 0.0025 From Mannings Equation

Answer 2
