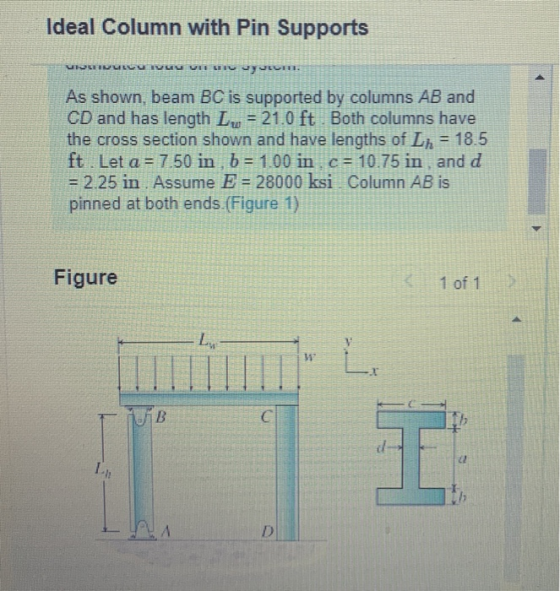

Ideal Column with Pin Supports VIVULLU TULU VELIU JYJECHI. As shown, beam BC is supported by...
<HW 29 Section 12.1-12.3 The Elastic Curve The cantilever beam ABC (Figure 1)shown is composed of...
<HW 29 Section 12.1-12.3 The Elastic Curve The cantilever beam ABC (Figure 1)shown is composed of two solid cylindrical sections: AB has a diameter of dı = 2.00 in and BC has a diameter of d2 6.00 in . The two moments, MA = 69.0 kipºft and MB = 56.0 kip. ft , are applied externally at points A and B, respectively. Assume EI is constant with E=2.8 x 10?psi and that a = 1.00 ft and b = 2.00...

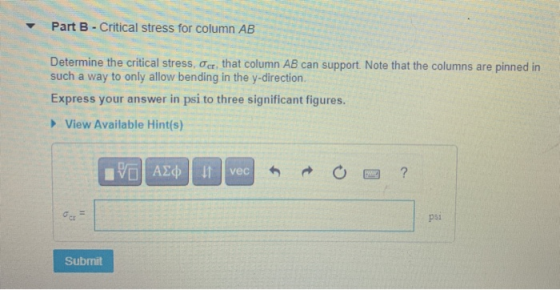

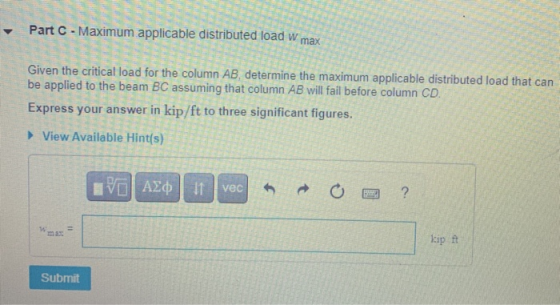

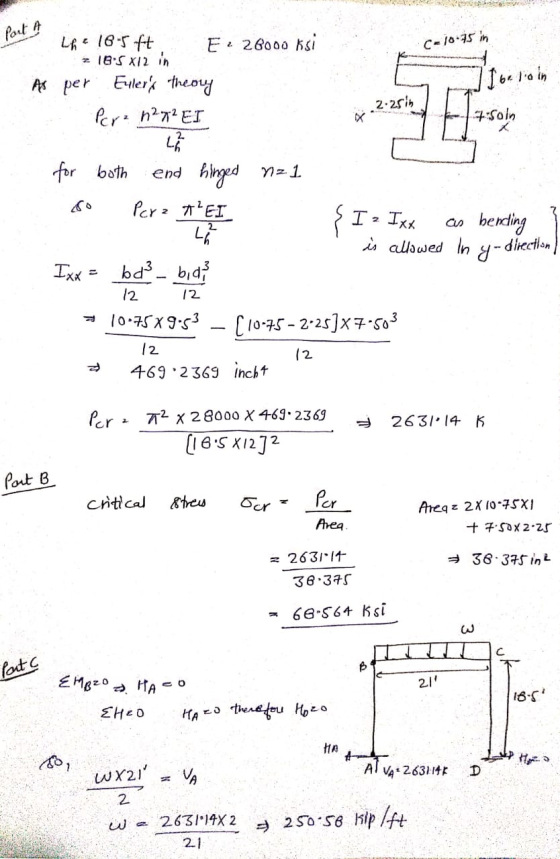

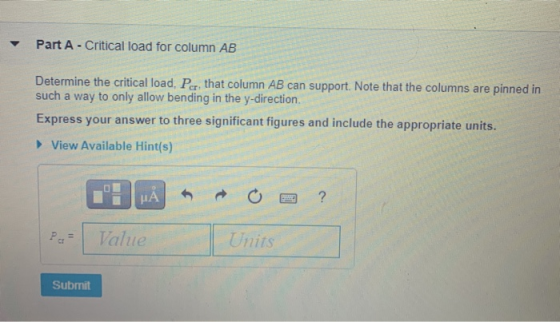

Ideal Column with Pin Supports Learning Goal: To use the formula for the critical load, i.e.,...
Ideal Column with Pin Supports Learning Goal: To use the formula for the critical load, i.e., the Euler buckling load, for pin-supported columns to calculate various parameters of columns. Ideally, a column that is perfectly straight and has an axial load applied exactly at the centroid of its cross section will not yield until the internal normal stress reaches the yield stress of the material. Real-world columns, however, are subject to small asymmetries, whether due to irregularities of shape or...
Learning Goal: The beam shown (Figure 1) is supported by a pin at A and a...
Learning Goal: The beam shown (Figure 1) is supported by a pin at A and a cable at B. Two loads P = 18 kN are applied straight down from the centerline of the bottom face. Determine the state of stress at the point shown (Figure 2) in a section 2 m from the wall. The dimensions are w = 5.4 cm , h = 12 cm, L = 0.8 m, a = 1.5 cm , and b = 4...
The beam shown (Figure 1) is supported by a pin at A and a cable at...
The beam shown (Figure 1) is
supported by a pin at A and a cable at B. Two
loads P = 13 kN are applied straight down from the
centerline of the bottom face. Determine the state of stress at the
point shown (Figure 2) in a section 2 m from the wall. The
dimensions are w = 5.2 cm , h = 10.5 cm ,
L = 0.8 m , a = 1.5 cm , and b = 4...
The beam shown (Figure 1) is supported by a pin at A and a cable at...
The beam shown (Figure 1) is supported by a pin at A
and a cable at B. Two loads P = 13 kN are applied
straight down from the centerline of the bottom face. Determine the
state of stress at the point shown (Figure 2) in a section 2 m from
the wall. The dimensions are w = 5.2 cm , h =
10.5 cm , L = 0.8 m , a = 1.5 cm , and b
= 4...
The beam shown (Figure 1) is supported by a pin at A and a cable at...
The beam shown (Figure 1) is supported by a pin at A and a cable at
B. Two loads P = 13 kN are applied straight down
from the centerline of the bottom face. Determine the state of
stress at the point shown (Figure 2) in a section 2 m from the
wall. The dimensions are w = 5.2 cm , h = 10.5 cm
, L = 0.8 m , a = 1.5 cm , and b = 4...
Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C...
Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C are rollers and A and D are pinned. Assume u = 3.2 k/ft Part A Determine the moment MBA acting on span AB at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? MBA Submit Request Answer Part B Determine the moment MBC acting...
Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C...
Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C are rollers and A and D are pinned. Assume u = 3.2 k/ft Part A Determine the moment MBA acting on span AB at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? MBA Submit Request Answer Part B Determine the moment MBC acting...
Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C...
Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C are rollers and A and D are pinned. Assume u = 3.2 k/ft Part A Determine the moment MBA acting on span AB at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? MBA Submit Request Answer Part B Determine the moment MBC acting...
Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C...
Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C are rollers and A and D are pinned. Assume u = 3.2 k/ft Part A Determine the moment MBA acting on span AB at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? MBA Submit Request Answer Part B Determine the moment MBC acting...
<HW 29 Section 12.1-12.3 The Elastic Curve The cantilever beam ABC (Figure 1)shown is composed of two solid cylindrical sections: AB has a diameter of dı = 2.00 in and BC has a diameter of d2 6.00 in . The two moments, MA = 69.0 kipºft and MB = 56.0 kip. ft , are applied externally at points A and B, respectively. Assume EI is constant with E=2.8 x 10?psi and that a = 1.00 ft and b = 2.00...
Ideal Column with Pin Supports Learning Goal: To use the formula for the critical load, i.e., the Euler buckling load, for pin-supported columns to calculate various parameters of columns. Ideally, a column that is perfectly straight and has an axial load applied exactly at the centroid of its cross section will not yield until the internal normal stress reaches the yield stress of the material. Real-world columns, however, are subject to small asymmetries, whether due to irregularities of shape or...
Learning Goal: The beam shown (Figure 1) is supported by a pin at A and a cable at B. Two loads P = 18 kN are applied straight down from the centerline of the bottom face. Determine the state of stress at the point shown (Figure 2) in a section 2 m from the wall. The dimensions are w = 5.4 cm , h = 12 cm, L = 0.8 m, a = 1.5 cm , and b = 4...
The beam shown (Figure 1) is
supported by a pin at A and a cable at B. Two
loads P = 13 kN are applied straight down from the
centerline of the bottom face. Determine the state of stress at the
point shown (Figure 2) in a section 2 m from the wall. The
dimensions are w = 5.2 cm , h = 10.5 cm ,
L = 0.8 m , a = 1.5 cm , and b = 4...
The beam shown (Figure 1) is supported by a pin at A
and a cable at B. Two loads P = 13 kN are applied
straight down from the centerline of the bottom face. Determine the
state of stress at the point shown (Figure 2) in a section 2 m from
the wall. The dimensions are w = 5.2 cm , h =
10.5 cm , L = 0.8 m , a = 1.5 cm , and b
= 4...
The beam shown (Figure 1) is supported by a pin at A and a cable at
B. Two loads P = 13 kN are applied straight down
from the centerline of the bottom face. Determine the state of
stress at the point shown (Figure 2) in a section 2 m from the
wall. The dimensions are w = 5.2 cm , h = 10.5 cm
, L = 0.8 m , a = 1.5 cm , and b = 4...
Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C are rollers and A and D are pinned. Assume u = 3.2 k/ft Part A Determine the moment MBA acting on span AB at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? MBA Submit Request Answer Part B Determine the moment MBC acting...
Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C are rollers and A and D are pinned. Assume u = 3.2 k/ft Part A Determine the moment MBA acting on span AB at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? MBA Submit Request Answer Part B Determine the moment MBC acting...
Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C are rollers and A and D are pinned. Assume u = 3.2 k/ft Part A Determine the moment MBA acting on span AB at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? MBA Submit Request Answer Part B Determine the moment MBC acting...
Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C are rollers and A and D are pinned. Assume u = 3.2 k/ft Part A Determine the moment MBA acting on span AB at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? MBA Submit Request Answer Part B Determine the moment MBC acting...
