Problem 12.16 Consider the building frame shown in (Figure 1). Suppose that wi = 1.2 k/ft...

Question

Question

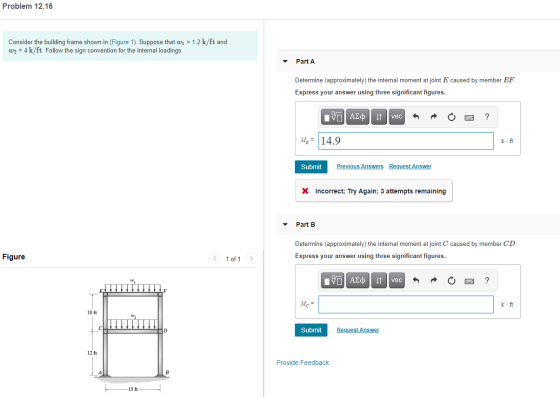

Problem 12.16 Consider the building frame shown in (Figure 1). Suppose that wi = 1.2 k/ft and w2 = 4 k/ft. Follow the sign co

engineering Civil-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

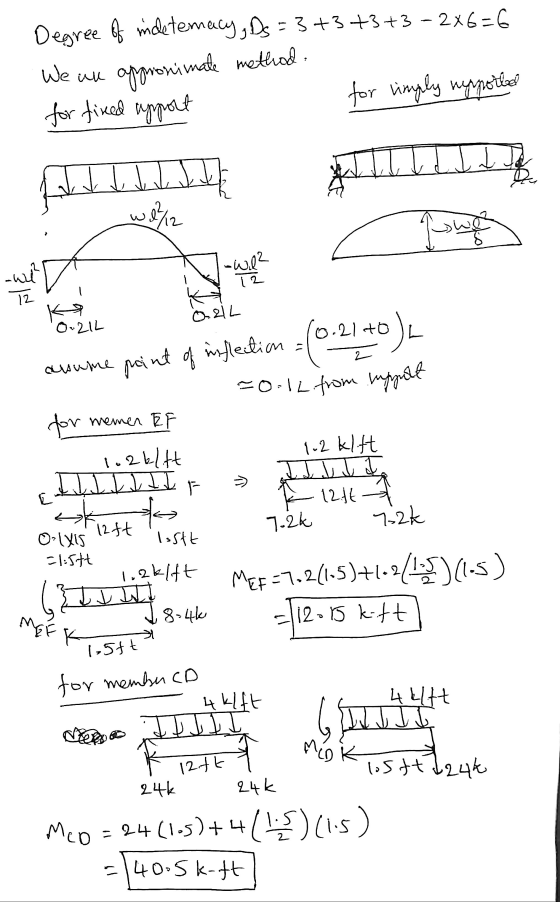

I hope you like my answer. Thank you.

Add a comment

Answer 2

Similar Homework Help Questions

Consider the building frame shown in (Figure 1). Suppose that wi = 3 k/ft and w2...

Consider the building frame shown in (Figure 1). Suppose that wi = 3 k/ft and w2 = 6.5 k/ft. Follow the sign convention for the internal loadings. Part A Determine (approximately) the internal moment at joint E caused by member EF. Express your answer using three significant figures. IVO ALO IT vec ? Mg = kft Submit Request Answer Part B Determine (approximately) the internal moment at joint C caused by member CD. Express your answer using three significant figures....
Consider the building frame shown in (Figure 1). Suppose that wi = 3 k/ft and W2...

Consider the building frame shown in (Figure 1). Suppose that wi = 3 k/ft and W2 = 6.5 k/ft. Follow the sign convention for the internal loadings. Part A Determine (approximately) the internal moment at joint E caused by member EF. Express your answer using three significant figures. TO ASOT vec ? Mg = 56.25 k. ft Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Part B Figure 1 of 1 Determine (approximately) the internal moment...
Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2...

Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2 = 3 k/ft. Assume the support at B is a roller and A and Care fixed. EI is constant Part A Determine the moment MAB acting on span AB at A measured clockwise Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? Submit Request Answer Part B...

Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2...

Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2 = 3 k/ft. Assume the support at B is a roller and A and Care fixed. EI is constant Part A Determine the moment MAB acting on span AB at A measured clockwise Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? Submit Request Answer Part B...
Problem 10.23 - Enhanced-with Hints and Feedback Review Consider the frame shown in (Figure 1), Supports...

Problem 10.23 - Enhanced-with Hints and Feedback Review Consider the frame shown in (Figure 1), Supports at A and D are fixed Er is constant. Figure 20ft 10ft Part A Determine the internal end moment Man acting on member AB at A measured clockwise Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. View Available Hintts) MAR- k.ft Submit Part B Determine the internal end moment...
Consider the beam shown in (Figure 1). EI is constant. Assume B and C are rollers...

Consider the beam shown in (Figure 1). EI is constant. Assume B and C are rollers and A and D are pinned. Assume w = 2.2 k/ft. Figure < - 1 of 1 > IA D 8 ft -20 ft 8 ft Copyright © 2020 Pearson Education Inc. All 3 of 3 Part A Determine the moment MBA acting on span AB at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is...

Consider the beam shown in (Figure 1). Assume the support at A is fixed and is...

Consider the beam shown in (Figure 1). Assume the support at A is fixed and is a roller. Take E = 29(103) ksi and w = 1.8 k/ft. The moment of inertia for each segment is shown in the figure. Part A Determine the component of reaction at A. Express your answer using three significant figures. VO AS IT vec ? A = k Submit Request Answer Part B Determine the y component of reaction at A. Express your answer...
Please show steps! Consider the beam shown in (Figure 1). The moment of inertia for each...

Please show steps! Consider the beam shown in (Figure 1). The moment of inertia for each segment is shown in the figure. Assume the support at B is a roller. Take E = 29(109) ksi . Suppose that M = 36 k. ft. Figure 1 of 1 L. 2) M LA-600 in B Inc - 300 in 18 ft 12 ft Part B Determine the y component of reaction at A. Express your answer using three significant figures. ΟΙ ΑΣΦI...
Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C...

Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C are rollers and A and D are pinned. Assume u = 3.2 k/ft Part A Determine the moment MBA acting on span AB at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? MBA Submit Request Answer Part B Determine the moment MBC acting...

Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C...

Question 3 Consider the beam shown in (Figure 1). El is constant. Assume B and C are rollers and A and D are pinned. Assume u = 3.2 k/ft Part A Determine the moment MBA acting on span AB at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? MBA Submit Request Answer Part B Determine the moment MBC acting...
