Perform each of the addition operations indicated below: (binary code question) (1001011)2 + (11101)2 (BCD)16 +...

Question

Question

Perform each of the addition operations indicated below:

(binary code question)

(1001011)₂ + (11101)₂

(BCD)₁₆ + (A34)₁₆

engineering Computer-Science

Answer 1

Answer #1

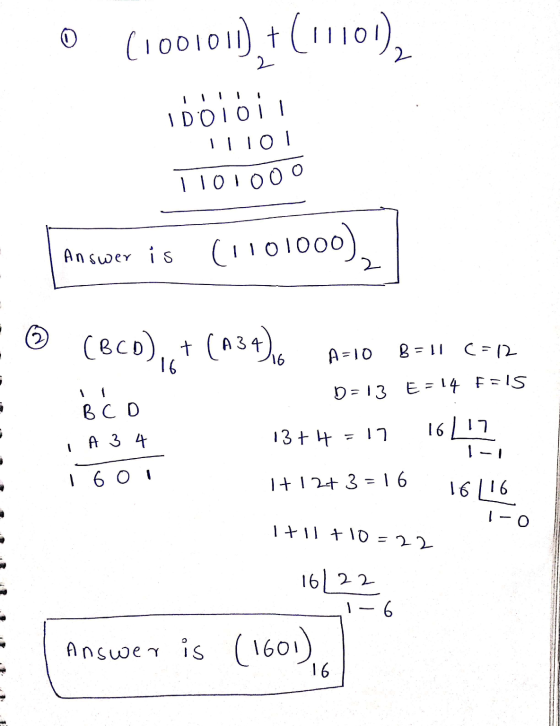

(1001011) + (11101), 2 1 IDO1011 IL101 1101000 Answer is (1101000) 2 (eco),, + (A34), A=10 B = 11 C=12 16 D=13 E = 14 F=15 B

(1001011)₂ + (11101)_{2 =} (1101000)₂

(BCD)₁₆ +(BCD)₁₆ + (A34)_{16 =} (1601)₁₆

Answer 2
