A transformer with a turns ratio of 8 has its primary side connected to a 15 V ac source

A transformer with a turns ratio of 8 has its primary side connected to a 15 V ac source and its secondary side connected to a 2 kΩ load. What is the reflected resistance?

31.25 Ω
1.875 Ω
250 Ω
128 ΚΩ

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

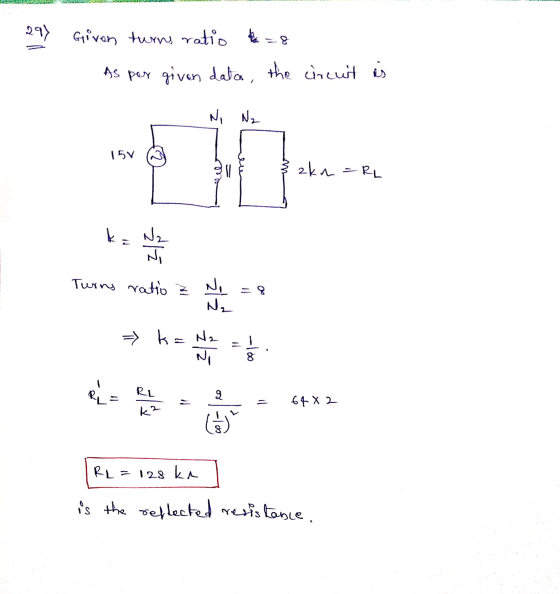

Answer 1

Answer #1

Add a comment
