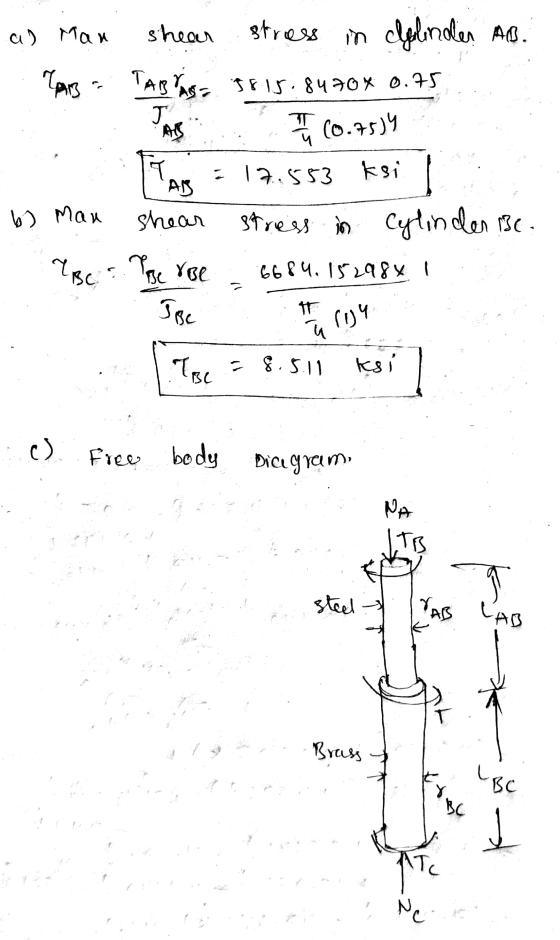

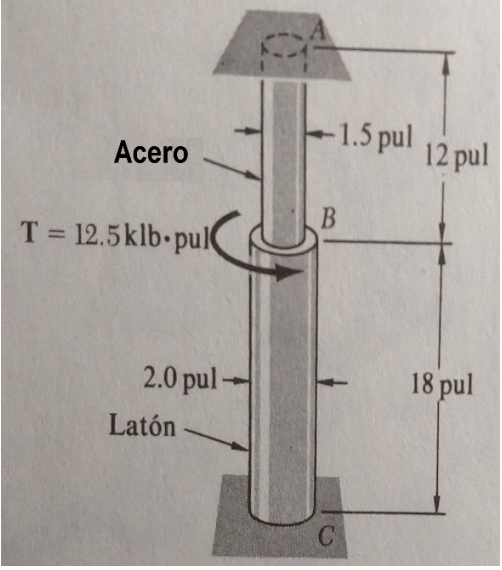

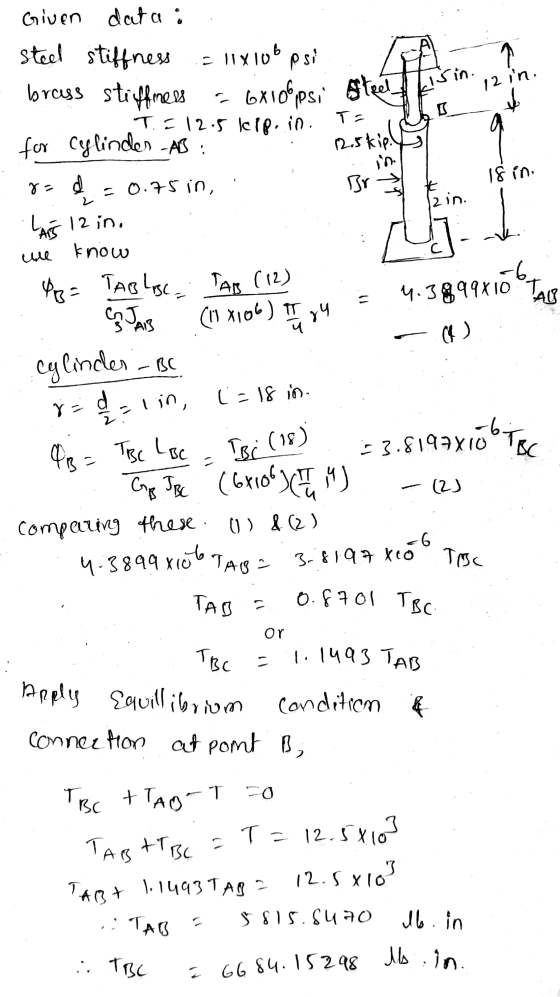

Solid cylinders AB and BC are joined at B and connected to fixed supports at A and C. Knowing that the steel stiffness is 11X10^6 psi and for brass it is 6X10^6 psi. Determine the maximum shear stress in a) cylinder AB and b) cylinder BC. c) Free body Diagram
Homework Answers
Add Answer to:
Solid cylinders AB and BC are joined at B and connected to fixed supports at A...
y bot = -994 .S7s21 1196522591 6. The solid cylinders AB and BC are bonded together...
y bot = -994 .S7s21 1196522591 6. The solid cylinders AB and BC are bonded together at B and are attached to fixed supports at A and C. Determine the internal torque in section BC) Take JAB 0.49701 in*, Jac- 1.5708 in', GAB 11.2x 106 psi and GBc 5.6 x 10 psi. (a) 2.98 k-in (b) 9.52 k-in (c) 6.09 k-in (d) 6.41 k-in TH T T-a Phn-he Aluminum 12 in. YAB 15 in. DNontart TBc T- 125 kip-in. TAB...
The C83400-red-brass (E=14.6*10^6) rod AB and 2014-T6-aluminum rod BC are joined at the collar B and...
The C83400-red-brass (E=14.6*10^6) rod AB and 2014-T6-aluminum rod BC are joined at the collar B and fixed connected at their ends. The cross-sectional area of each member is 1.75in2 . If there is no load in the members when T1 = 50?F, determine the average normal stress in the member BC when T2 = 150 ?F. Also, how far will the collar be displaced? The C83400-red-brass (E=14.6*10^6) rod AB and 2014-T6-aluminum rod BC are joined at the collar B and...
9.18 Two solid cylindrical rods are joined at B and loaded as shown AB is made...
9.18 Two solid cylindrical rods are joined at B and loaded as shown AB is made of steel (E = 200 GPa) and rod BC of brass (E = 1 GPa). Determine (a) the total deformation of the composite rod ARC (b) the deflection of point B. P = 30 KN + 30 mm 250 mm 40 KN 300 mm -50 mm Fig. P9.18
Ends A and D of the two solid steel shafts AB and CD are fixed, while ends B and C are connected...
Ends A and D of the two solid steel shafts AB and CD are fixed, while ends B and C are connected to gears as shown. Knowing that a 4kN-m torque T is applied to gear B,determine the maximum shearing stress (a) in shaft AB, (b) in shaft CD.
The assembly shown in the figure below consists of solid AB, BC and CD rods connected...
The assembly shown in the figure below consists of solid AB, BC and CD rods connected together, the solid rod AB has 10 mm diameter and 100 mm length, the solid rod BC has 20 mm diameter a 120 mm length, while the solid rod CD has 10 mm diameter and 100 mm length. Allh rods are made of steel with E-200 GPa. the assembly is subjected to 100 kN tensile force (CLO5) The average normal stress between A and...
2. Two solid cylindrical rods AB and BC are wớided together at B and loaded as...
2. Two solid cylindrical rods AB and BC are wớided together at B and loaded as shown. Knowing that the average normal stress must not exceed 180x 10ºPa in rod AB and 155 x10 Pa in rod BC, determine the smallest allowable diameter of AB and BC. O IN 250 SOEN 1
Problem #6 (30 points): Two solid cylindrical rods are joined at point B Rod AB is...
Problem #6 (30 points): Two solid cylindrical rods are joined at point B Rod AB is made of steel (E, 30 x 10s psi), with a length of 40 in and a diameter of 2 in. Rod BC is made of alumin loaded with axial forces at two points, as shown below. The total elongation of ABC is limited to 0.05 in, and the normal stresses in AB and BC should not exceed 35 ksi and 10 ksi, respectively. You...
Two solid cylinder rods AB and BC are welded together at B and loaded as shown....
Two solid cylinder rods AB and BC are welded together at B and loaded as shown. Determine the magnitude of the force P for which tensile stress in rod AB has the same magnitude as compressive stress in rod BC. 30 lips B 30 lips 30 m 40 in.
P6.074 The torsional assembly consists of a cold-rolled stainless steel tube connected to a solid cold-rolled...
P6.074 The torsional assembly consists of a cold-rolled stainless steel tube connected to a solid cold-rolled brass segment at flange C. The assembly is securely fastened to rigid supports at A and D Stainless steel tubes (1) and (2) have an outside diameter of 3.125 in, a wall thickness of 0.082 in., a shear modulus of G = 14200 ksi, and an allowable shear stress of 38 ksi. The solid brass segment (3) has a diameter of 1.3125 in., a...
y bot = -994 .S7s21 1196522591 6. The solid cylinders AB and BC are bonded together at B and are attached to fixed supports at A and C. Determine the internal torque in section BC) Take JAB 0.49701 in*, Jac- 1.5708 in', GAB 11.2x 106 psi and GBc 5.6 x 10 psi. (a) 2.98 k-in (b) 9.52 k-in (c) 6.09 k-in (d) 6.41 k-in TH T T-a Phn-he Aluminum 12 in. YAB 15 in. DNontart TBc T- 125 kip-in. TAB...
9.18 Two solid cylindrical rods are joined at B and loaded as shown AB is made of steel (E = 200 GPa) and rod BC of brass (E = 1 GPa). Determine (a) the total deformation of the composite rod ARC (b) the deflection of point B. P = 30 KN + 30 mm 250 mm 40 KN 300 mm -50 mm Fig. P9.18
The assembly shown in the figure below consists of solid AB, BC and CD rods connected together, the solid rod AB has 10 mm diameter and 100 mm length, the solid rod BC has 20 mm diameter a 120 mm length, while the solid rod CD has 10 mm diameter and 100 mm length. Allh rods are made of steel with E-200 GPa. the assembly is subjected to 100 kN tensile force (CLO5) The average normal stress between A and...
2. Two solid cylindrical rods AB and BC are wớided together at B and loaded as shown. Knowing that the average normal stress must not exceed 180x 10ºPa in rod AB and 155 x10 Pa in rod BC, determine the smallest allowable diameter of AB and BC. O IN 250 SOEN 1
Problem #6 (30 points): Two solid cylindrical rods are joined at point B Rod AB is made of steel (E, 30 x 10s psi), with a length of 40 in and a diameter of 2 in. Rod BC is made of alumin loaded with axial forces at two points, as shown below. The total elongation of ABC is limited to 0.05 in, and the normal stresses in AB and BC should not exceed 35 ksi and 10 ksi, respectively. You...
Two solid cylinder rods AB and BC are welded together at B and loaded as shown. Determine the magnitude of the force P for which tensile stress in rod AB has the same magnitude as compressive stress in rod BC. 30 lips B 30 lips 30 m 40 in.
P6.074 The torsional assembly consists of a cold-rolled stainless steel tube connected to a solid cold-rolled brass segment at flange C. The assembly is securely fastened to rigid supports at A and D Stainless steel tubes (1) and (2) have an outside diameter of 3.125 in, a wall thickness of 0.082 in., a shear modulus of G = 14200 ksi, and an allowable shear stress of 38 ksi. The solid brass segment (3) has a diameter of 1.3125 in., a...
