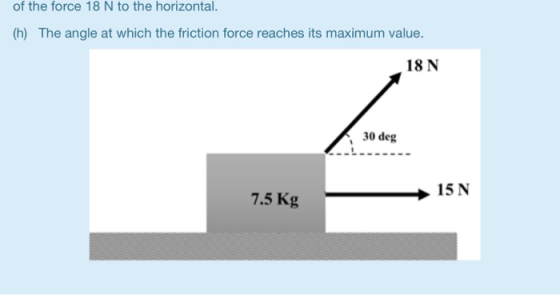

Problem#2 (10 points): A box of mass 7.5 kg is accelerating from rest along a horizontal...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

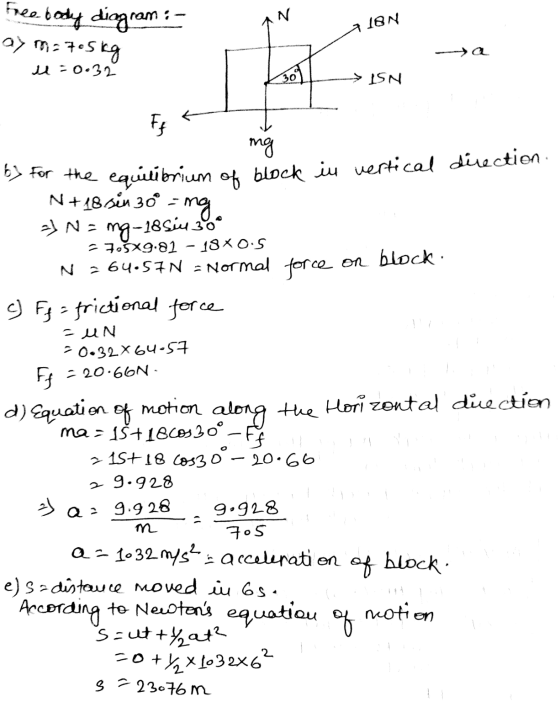

N Free body diagram :- ay roi = 7.5 kg 718N →a -0.32 30 ISN Ft ng b) for the equilibrium of block iu vertical direction N +18

Answer 2

Similar Homework Help Questions

Suppose, as shown in the figure, that a 70-kg box is pulled by a 400-N force at an angle of 30° to the horizontal.

Inclined Plane ProblemsProblem 1:Suppose, as shown in the figure, that a 70-kg box is pulled by a 400-N force at an angle of 30° to the horizontal. The coefficient of sliding friction is 0.50. Find the acceleration of the box.
A box of mass m = 5.0 kg initially at rest is being pulled along a...

A box of mass m = 5.0 kg initially at rest is being pulled along a smooth horizontal surface by a rope that makes an angle of 30° with the horizontal and exerts a force of 20 N on the box. Determine the – a) acceleration of the box and – b) the normal force.
Question 5.1a The figure shows a box of mass m-4.80 kg puled to the right across...

Question 5.1a The figure shows a box of mass m-4.80 kg puled to the right across a horontal surface by a constant tension force of magnitude r·30.0 N. The tension fren inclined at an angle θ-24.0° above the horizontal and the friction force has magnitude 4-14.0 N. The box is pulled a distance d·1.55-. Determine the work done on the box by the tension force, the normal force, and the kinetic friction ferce. we'l use Wr W,r and w, to...

FP 30.0° ÈN The 10.0-kg box is now pulled along a horizontal surface by a force...

FP 30.0° ÈN The 10.0-kg box is now pulled along a horizontal surface by a force of 40.0 N applied at a 30.0° angle above horizontal. The coefficient of kinetic friction remains at 0.30. Calculate its acceleration. What would be the coefficient of static friction? Ffr mg
2. A block of mass 3.0 kg rests on an inclined planw that makes an angle...

2. A block of mass 3.0 kg rests on an inclined planw that makes an angle with the horizontal of 25...(pic) 4. A man weighs an apple with a string scale attached to the ceiling of an elevator...(pic) 9. A diver weighing 600 N drops from a board h meters above the surface of the water...(pic) 10. A block with a mass of 5.0 kg is attached to a horizontal spring with a spring constant 300 N/m...(pic) 2. A block...
iv) Find the final velocity of a 15.0 kg box if it starts from rest and...

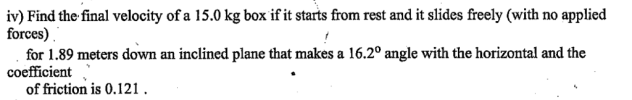

iv) Find the final velocity of a 15.0 kg box if it starts from rest and it slides freely (with no applied forces) for 1.89 meters down an inclined plane that makes a 16.2° angle with the horizontal and the coefficient of friction is 0.121
