Compute the Fourier cosine coefficients for f(x)


Let \(f(x)= \begin{cases}0 & \text { for } 0 \leq x<2 \\ -(4-x) & \text { for } 2 \leq x \leq 4\end{cases}\)

- Compute the Fourier cosine coefficients for \(f(x)\).

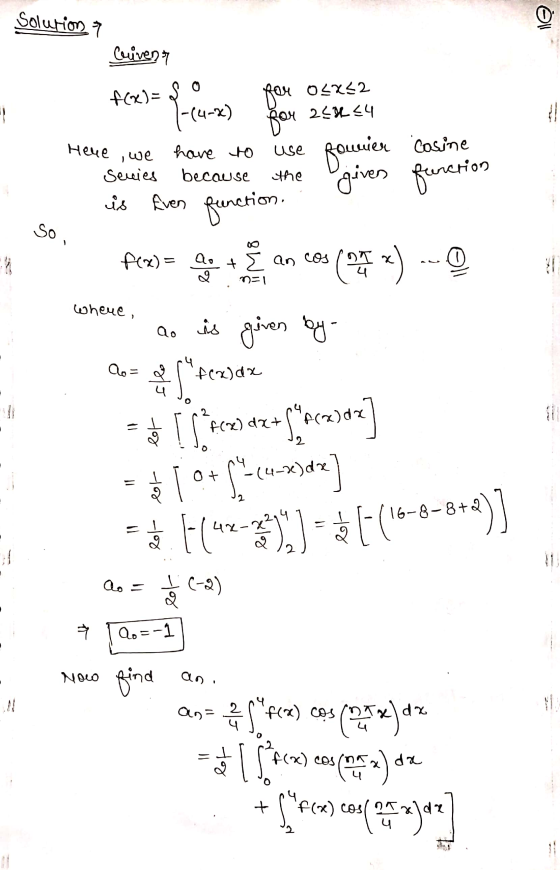

- \(a_{0}=\)

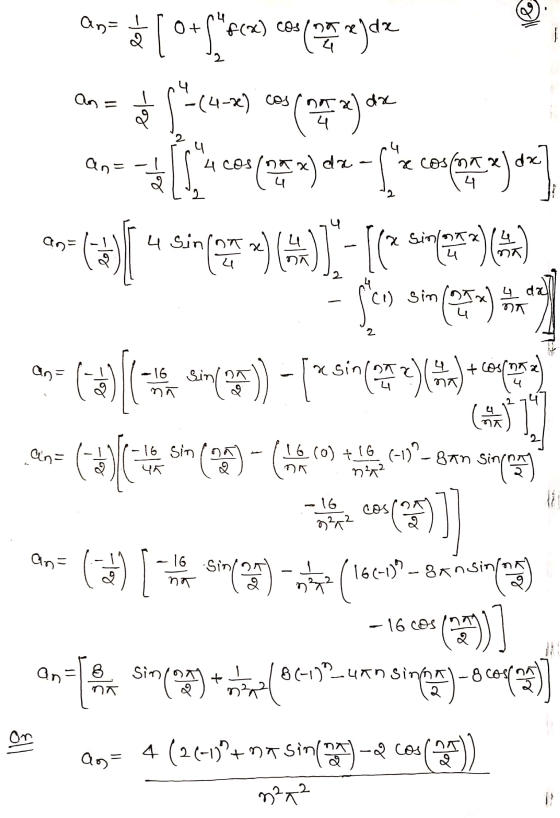

- \(a_{n}=\)

- What are the values for the Fourier cosine series \(\frac{a_{0}}{2}+\sum_{n=1}^{\infty} a_{n} \cos \left(\frac{n \pi}{4} x\right)\) at the given points.

- \(x=2:\)

- \(x=-3\) :

- \(x=5:\)


math   Advanced-Math
2 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
