A two-story building, previously designed to be a residential building, will be used for storage. However,...

A two-story building, previously designed to be a residential building, will be used for storage. However, the strength of a beam is questioned. When visiting the site, it was found that the beam was supported only on two pillars. Its dimensions and characteristics indicated that it resists a maximum design moment equal to 135 kN.m. So, knowing that the effective span of the beam is 6.00 m long, what maximum uniformly distributed load can be applied to it?

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

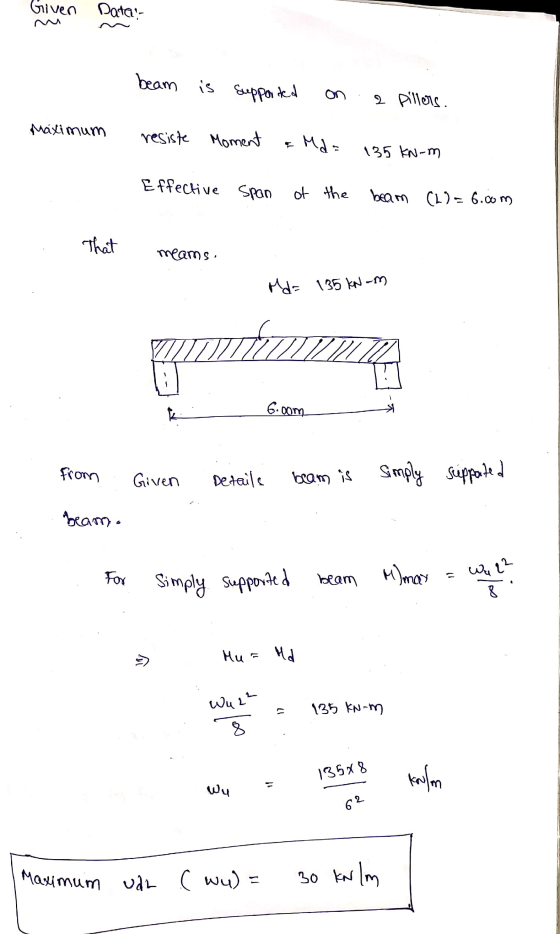

Given Datal- beam is supported 2 Pillers. Maximum resiste Moment Mda 135 kN-m Effective span of the beam (L) = 6.00m That mea

0 0
