Add Answer to:

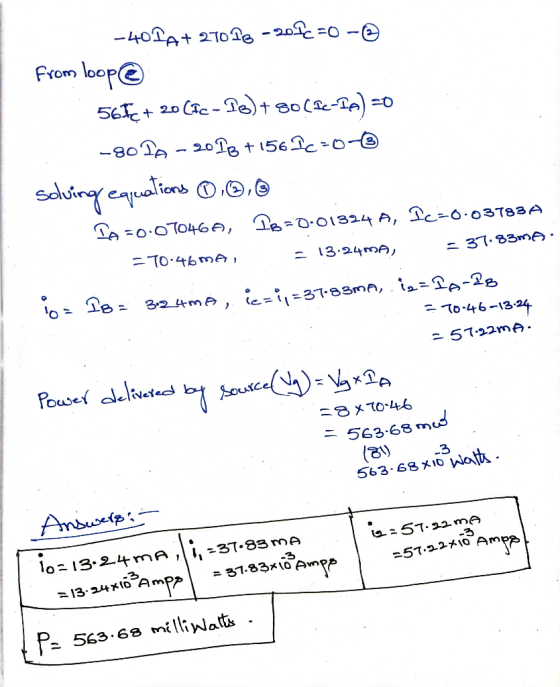

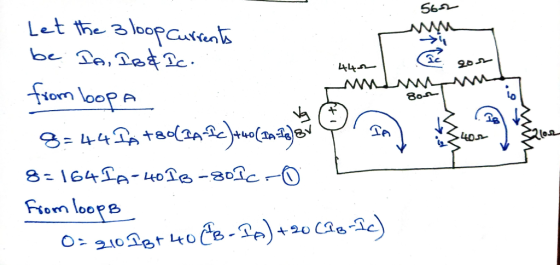

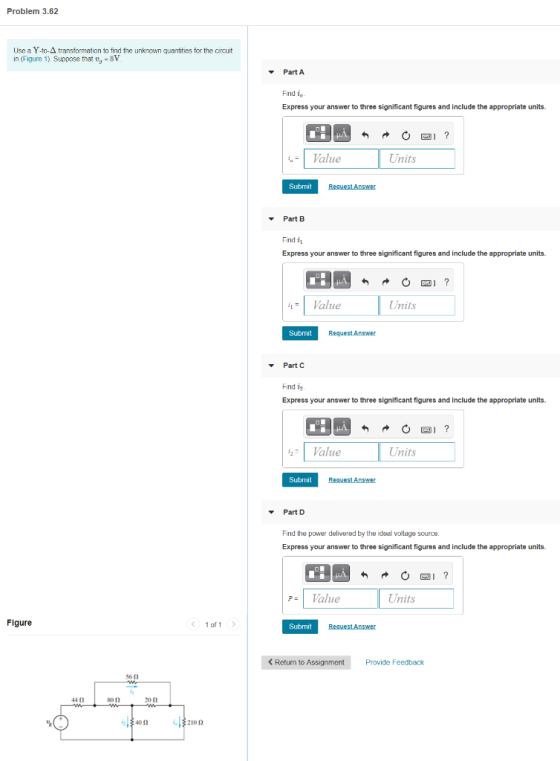

Problem 3.62 Use a Y-to-A transformation to find the unknown quantities for the circuit in (Figure...
Problem 4.32 Consider the circuit shown in (Figure 1). Use the mesh- current method to find...
Problem 4.32 Consider the circuit shown in (Figure 1). Use the mesh- current method to find the branch currents ia - ze in the circuit. Take v1 = 32 V and ug = 2 V. Part A Find in Express your answer to three significant figures and include the appropriate units. HÅ ? Value Units Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining Part B Find is. Express your answer to three significant figures and include...
Problem 4.7 Consider the circuit shown in (Figure 1). The source voltage v1 is 40 V....
Problem 4.7 Consider the circuit shown in (Figure 1). The source voltage v1 is 40 V. Resistance R1, R2 and R3 are 5 ,120 and 15 , respectively. The source current I is 25 mA Part A Find the power developed by the current source I in the circuit. Express your answer to three significant figures and include the appropriate units. НА Value Units Рi 3 Request Answer Submit Part B Figure 1 of 1 Find the power developed by...
Problem 17 Find the g parameters for the circuit in (Figure 1). Take R1 = 212,...
Problem 17 Find the g parameters for the circuit in (Figure 1). Take R1 = 212, R2 = 202, R3 = 80 2. R4 = 202, and Rs = 60 . art A Find gi1 Express your answer to three significant figures and include the appropriate units. ► View Available Hint(s) LA ? 911 Value Units Submit Figure Part B 1 of 1 Find 921 Express your answer using three significant figures. View Available Hint(s) R R 12 IVO AE...
Stress transformation Problem 9.60 Part A Suppose that ơ,-430 MPa , ơ,-185 MPa , Tzy 480 MPa. The...
Stress transformation Problem 9.60 Part A Suppose that ơ,-430 MPa , ơ,-185 MPa , Tzy 480 MPa. The stress components act in the directions shown in the figure below. (Figure 1) Determine the principal stress Express your answers using three significant figures separated by a comma. MPa SubmitR Request Answer Part B Determine the maximum in-plane shear stress Express your answer to three significant figures and include the appropriate units. Tmax in planeale Units SubmitR Request Answer Part C Figure...
reviewIwona Consider the circuit in (Figure 1). Suppose that i = 1.6 A and y =...
reviewIwona Consider the circuit in (Figure 1). Suppose that i = 1.6 A and y = 28 V Part A Use a series of source transformations to find in in the circuit. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) μΑ ? 0.399 A Submit Previous Answers X Incorrect: Try Again: 4 attempts remaining Part B Complete previous part(s) Provide Feedback Next > Figure 1 of 1 > 612 02 5 Ω w...
Use the node-voltoge method to find the branch currents i ie In the circuit shown in...
Use the node-voltoge method to find the branch currents i ie In the circuit shown in figure.(Figure 1)Take vi 133 V and v2 450 V. Part A Find the volue of ia Express your answer to two significant figures and include the appropriate units. 9.96 Submit X incorrect Try Again; 3 attempts remaining Figure 1 of 1 Part Find the value of ib Express your answer to two signifcant figures and include the appropriate units 5Ω 4Ω 10Ω h" |...
Problem 5.4 Review1 Constants The op amp in the circuit in (Figure 1) is ideal. Figure...
Problem 5.4 Review1 Constants The op amp in the circuit in (Figure 1) is ideal. Figure 1 of 1 100) kΩ 16 V 20 kΩ 40 kΩ -16 V Ub Part A Calculate vo if ua = 4 V and vb = 0 V Express your answer to three significant figures and include the appropriate units. Vo = 1-20 Submit X Incorrect; Try Again Part B Calculate uo if Va-2 V and vb = 0 V Express your answer to...
In the circuit in (Figure 1) the voltage and current expressions are 60e -25t V, t...
In the circuit in (Figure 1) the voltage and current expressions are 60e -25t V, t > 0); i 20e -25t mA, t> 0+. V = Figure 1 of 1 + V R RS Part A Find R. Express your answer to three significant figures and include the appropriate units. ? MÅ R = Value Units Submit Request Answer Part B Find C. Express your answer to three significant figures and include the appropriate units. ? MÅ C = Value...
\ Problem 6 Consider the circuit shown in (Figure 1). Suppose that V, = 480_0°V (rms)....
\
Problem 6 Consider the circuit shown in (Figure 1). Suppose that V, = 480_0°V (rms). Part A Find the average power dissipated in the line in the figure Express your answer three significant figures and include the appropriate units. HHA ? P = Value Units Submit Request Answer Part B Figure 1 of 1 > Find the capacitive reactance that, when connected in parallel, with the load will make the load look purely resistive. Express your answer three significant...
Problem 4.87 The variable resistor (R.) in the circuit in (Figure 1) is adjusted until it...
Problem 4.87 The variable resistor (R.) in the circuit in (Figure 1) is adjusted until it absorbs maximum power from the circuit. Suppose that n = 5.0. Find the value of R. Express your answer to three significant figures and include the appropriate units. R. = Value Units Submit Request Answer Part B Find the maximum power delivered to Ro- Express your answer to three significant figures and include the appropriate units. Pmax = Value Units Submit Request Answer Figure...
Problem 4.32 Consider the circuit shown in (Figure 1). Use the mesh- current method to find the branch currents ia - ze in the circuit. Take v1 = 32 V and ug = 2 V. Part A Find in Express your answer to three significant figures and include the appropriate units. HÅ ? Value Units Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining Part B Find is. Express your answer to three significant figures and include...
Problem 4.7 Consider the circuit shown in (Figure 1). The source voltage v1 is 40 V. Resistance R1, R2 and R3 are 5 ,120 and 15 , respectively. The source current I is 25 mA Part A Find the power developed by the current source I in the circuit. Express your answer to three significant figures and include the appropriate units. НА Value Units Рi 3 Request Answer Submit Part B Figure 1 of 1 Find the power developed by...
Problem 17 Find the g parameters for the circuit in (Figure 1). Take R1 = 212, R2 = 202, R3 = 80 2. R4 = 202, and Rs = 60 . art A Find gi1 Express your answer to three significant figures and include the appropriate units. ► View Available Hint(s) LA ? 911 Value Units Submit Figure Part B 1 of 1 Find 921 Express your answer using three significant figures. View Available Hint(s) R R 12 IVO AE...
Stress transformation Problem 9.60 Part A Suppose that ơ,-430 MPa , ơ,-185 MPa , Tzy 480 MPa. The stress components act in the directions shown in the figure below. (Figure 1) Determine the principal stress Express your answers using three significant figures separated by a comma. MPa SubmitR Request Answer Part B Determine the maximum in-plane shear stress Express your answer to three significant figures and include the appropriate units. Tmax in planeale Units SubmitR Request Answer Part C Figure...
reviewIwona Consider the circuit in (Figure 1). Suppose that i = 1.6 A and y = 28 V Part A Use a series of source transformations to find in in the circuit. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) μΑ ? 0.399 A Submit Previous Answers X Incorrect: Try Again: 4 attempts remaining Part B Complete previous part(s) Provide Feedback Next > Figure 1 of 1 > 612 02 5 Ω w...
Use the node-voltoge method to find the branch currents i ie In the circuit shown in figure.(Figure 1)Take vi 133 V and v2 450 V. Part A Find the volue of ia Express your answer to two significant figures and include the appropriate units. 9.96 Submit X incorrect Try Again; 3 attempts remaining Figure 1 of 1 Part Find the value of ib Express your answer to two signifcant figures and include the appropriate units 5Ω 4Ω 10Ω h" |...
Problem 5.4 Review1 Constants The op amp in the circuit in (Figure 1) is ideal. Figure 1 of 1 100) kΩ 16 V 20 kΩ 40 kΩ -16 V Ub Part A Calculate vo if ua = 4 V and vb = 0 V Express your answer to three significant figures and include the appropriate units. Vo = 1-20 Submit X Incorrect; Try Again Part B Calculate uo if Va-2 V and vb = 0 V Express your answer to...
In the circuit in (Figure 1) the voltage and current expressions are 60e -25t V, t > 0); i 20e -25t mA, t> 0+. V = Figure 1 of 1 + V R RS Part A Find R. Express your answer to three significant figures and include the appropriate units. ? MÅ R = Value Units Submit Request Answer Part B Find C. Express your answer to three significant figures and include the appropriate units. ? MÅ C = Value...
\
Problem 6 Consider the circuit shown in (Figure 1). Suppose that V, = 480_0°V (rms). Part A Find the average power dissipated in the line in the figure Express your answer three significant figures and include the appropriate units. HHA ? P = Value Units Submit Request Answer Part B Figure 1 of 1 > Find the capacitive reactance that, when connected in parallel, with the load will make the load look purely resistive. Express your answer three significant...
Problem 4.87 The variable resistor (R.) in the circuit in (Figure 1) is adjusted until it absorbs maximum power from the circuit. Suppose that n = 5.0. Find the value of R. Express your answer to three significant figures and include the appropriate units. R. = Value Units Submit Request Answer Part B Find the maximum power delivered to Ro- Express your answer to three significant figures and include the appropriate units. Pmax = Value Units Submit Request Answer Figure...
