The current and power for each of the interconnected elements in (Figure 1) is measured. The...

Question

Question

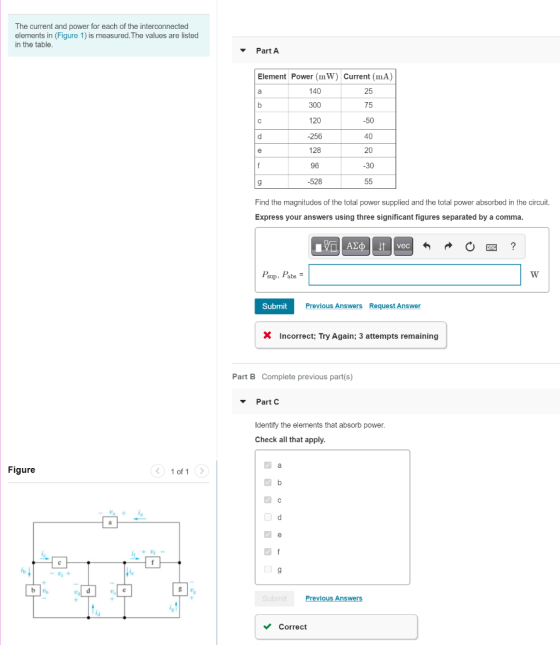

The current and power for each of the interconnected elements in (Figure 1) is measured. The values are listed in the table P

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

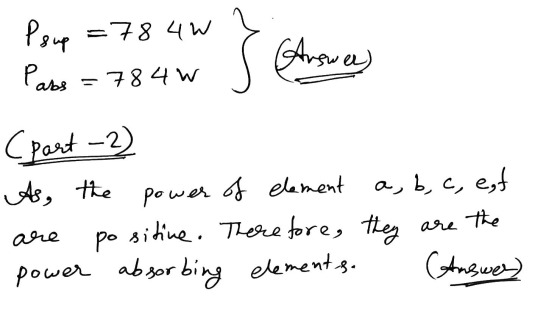

( part - A) means absorbed power positive value of power. Total Power Absorbed = Pass (140+300 +120 + 128796) 784 value of po Psup =784W } Pass =784W s Answers (part 2) As, power of element a, b, c, est po sitive. Therefore, they are the power absorbi

Add a comment

Answer 2

Similar Homework Help Questions

1.32 The current and power for each of the interconnect- ed elements in Fig. P1.32 is...

1.32 The current and power for each of the interconnect- ed elements in Fig. P1.32 is measured. The values are listed in Table P1.32 a) Show that the interconnection satisfies the power check. b) Identify the elements that absorb power. c) Find the voltage for each of the elements in the interconnection, using the values of power and current and the voltage polarities shown in the figure. Figure P1.32 ia a + f C Ve + Va d e Ve...
