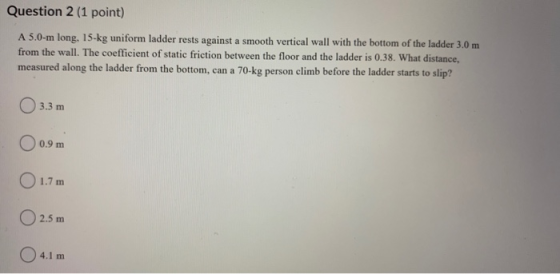

Question 2 (1 point) A 5.0-m long, 15-kg uniform ladder rests against a smooth vertical wall...

Question

Question

science Advanced-Physics

Answer 1

Answer #1

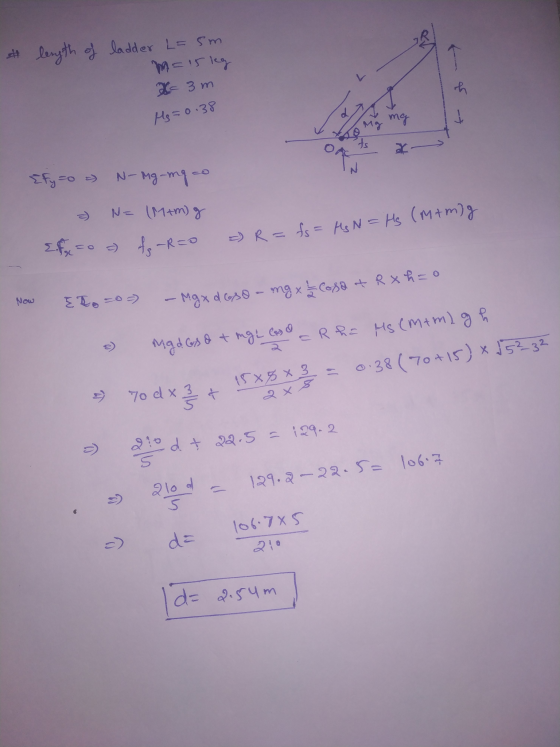

# length of ladder L=5m m= 15 leg x= 3m ch Mg=0.38 mg Mg ts {fy to a N-Mg-mg - N= (M+m) g Efto - ts - ~R=0 =) R = fs = H₂ N =

Answer 2

Similar Homework Help Questions

A 5.0-m long, 15-kg uniform ladder rests against a smooth vertical wall with the bottom of...

A 5.0-m long, 15-kg uniform ladder rests against a smooth vertical wall with the bottom of the ladder 3.0 m from the wall. The coefficient of static friction between the floor and the ladder is 0.38. What distance, measured along the ladder from the bottom, can a 70-kg person climb before the ladder starts to slip? Question 2 (1 point) A 5.0-m long, 15-kg uniform ladder rests against a smooth vertical wall with the bottom of the ladder 3.0 m...
5) A 5.0-m long, 12-kg, ladder rests against a smooth vertical wall with the bottom of...

5) A 5.0-m long, 12-kg, ladder rests against a smooth vertical wall with the bottom of the ladder 3.0 m from the wall. The coefficient of static friction between the floor and the ladder is 0.28. What distance measured along the ladder from the bottom, can a 60-kg person climb before the ladder starts to slip? Ans: 1.7 m
18. A 4.00-m-long uniform ladder, weighing 180 N, rests against a smooth vertical wall with its...

18. A 4.00-m-long uniform ladder, weighing 180 N, rests against a smooth vertical wall with its base on a horizontal rough floor, a distance of 1.20 m away from the wall. The coefficient of static friction between the ladder and the floor is 0.200. How far up the ladder, measured along the ladder, can a 600-N person climb before the ladder begins to slip? Group of answer choices 2.71 m 1.26 m 4.56 m 1.50 m 1.05 m

A uniform ladder 5.0 m long rests against a frictionless, vertical wall with its lower end...

A uniform ladder 5.0 m long rests against a frictionless, vertical wall with its lower end 3.0 m from the wall. The ladder weighs 160 N. The coefficient of static friction between the foot of the ladder and the ground is 0.40. A man weighing 740 N climbs slowly up the ladder. What is the maximum frictional force that the ground can exert on the ladder at its lower end? What is the actual frictional force when the man has...
A uniform ladder 12 meters long rests against a vertical frictionless wall, as shown in the...

A uniform ladder 12 meters long rests against a vertical frictionless wall, as shown in the figure. The ladder weighs 400 N and makes an angle θ = 51° with the floor. A man weighing 874 N climbs slowly up the ladder. When he is 78 m from the bottom of the ladder, it just starts to slip. What is the coefficient of static friction between the floor and the ladder? 7.8 m
D. DOLH A and B 18. A uniform, 5.0-m ladder rests against a slippery vertical wall....

D. DOLH A and B 18. A uniform, 5.0-m ladder rests against a slippery vertical wall. The inclination angle between the ladder and the rough horizontal floor is 53°. If the ladder weighs 400.0 N, show that the coefficient of static friction that just prevents the ladder from slipping is 0.38.

18. A uniform, 5.0-m ladder rests against a slippery vertical wall. The inclination angle between the...

18. A uniform, 5.0-m ladder rests against a slippery vertical wall. The inclination angle between the ladder and the rough horizontal floor is 53°. If the ladder weighs 400.0 N, show that the coefficient of static friction that just prevents the ladder from slipping is 0.38. . . .tina Tha hattom disk is rotatine as shown at 200 rpm, and the top disk is
A 40-kg uniform ladder that is 5.0 m long is placed against a smooth wall at...

A 40-kg uniform ladder that is 5.0 m long is placed against a smooth wall at a height of h=4.0 m, as shown in the figure. The base of the ladder rests on a rough horizontal surface whose coefficient of static friction with the ladder is 0.40. An 80-kg bucket is suspended from the top rung of the ladder, just at the wall. What is the magnitude of the force that the ladder exerts on the wall? Please go step...
An 8.0 m, 240 N uniform ladder rests against a smooth wall. The coefficient of static...

An 8.0 m, 240 N uniform ladder rests against a smooth wall. The coefficient of static friction between the ladder and the ground is 0.55, and the ladder makes a 50.0° angle with the ground. How far up the ladder can an 700 N person climb before the ladder begins to slip?

A 100N uniform ladder, 8.0m long, rests against a smooth vertical wall. The coefficient of static...

A 100N uniform ladder, 8.0m long, rests against a smooth vertical wall. The coefficient of static friction between the ladder and the floor is 0.40. What minimum angle can the ladder make with the floor before it slips? OPTIONS 22˚ 51˚ 18˚ 42˚
