help please Two forces of 417 newtons and 513 newtons act on a point. The resultant...

Question

Question

help please
Two forces of 417 newtons and 513 newtons act on a point. The resultant force is 901 newtons. Find the angle between the two

math Advanced-Math

Answer 1

Answer #1

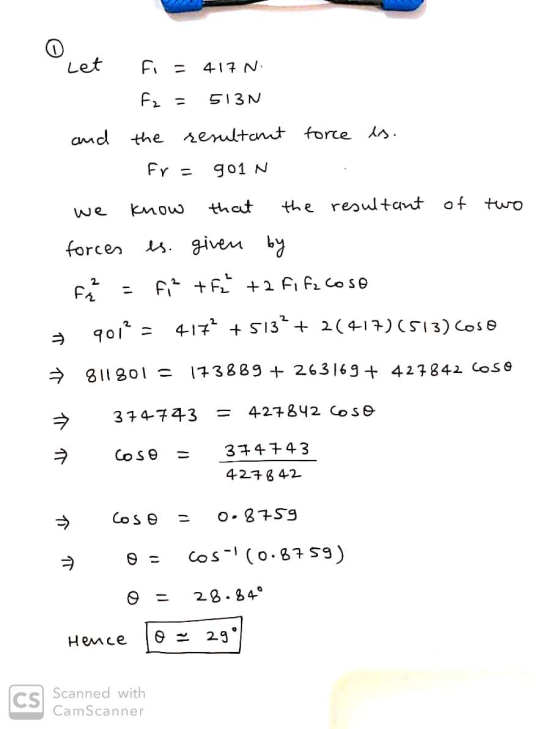

Let Fi = 417 N F2 = 513N and the resultant force es. Fr = 901 N we know that the resultant of two FR forces es. given by f² +

Answer 2
