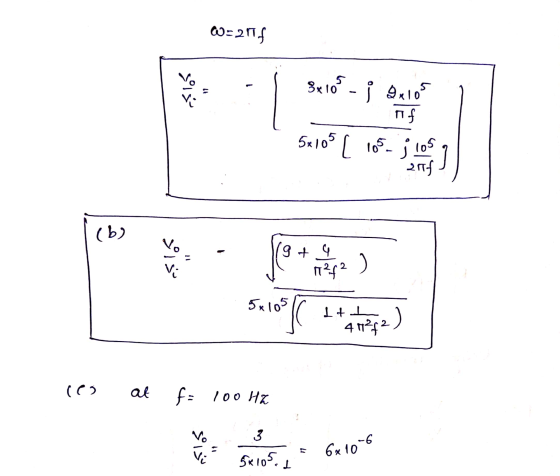

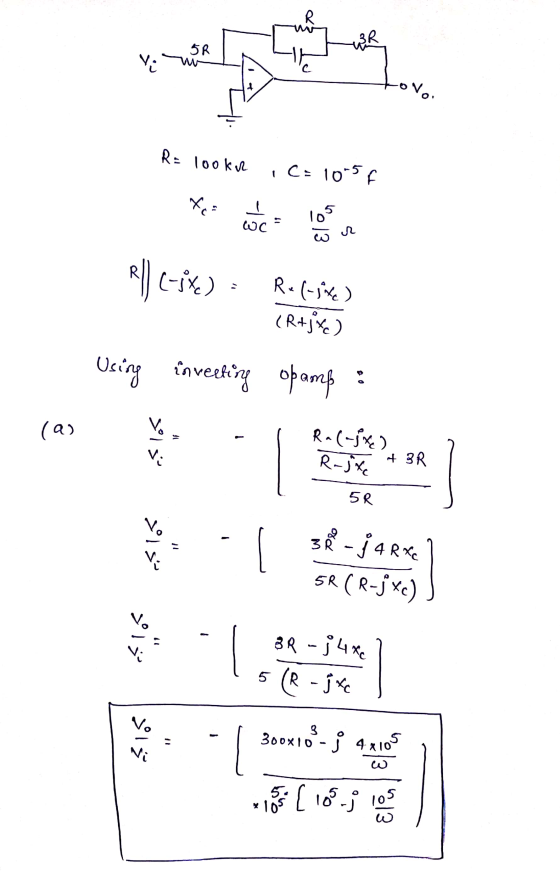

![R BR SR Vi covo R = looker ic=10-5f Xai ㅗ 5 10 R]] C-ive) R. (Live) (R+jke) Using inverting opamp so (a) slos - R.( Rajxe + 3](http://img.homeworklib.com/questions/68a5f880-e573-11ea-8828-111ef4fa6618.png?x-oss-process=image/resize,w_560)
![21 ديه کہا کہ - که ۵۱ - گم31 5x105 وم که ز -گها ] 25 ط) (9 + و کہا کہ 22 2) )) 10 به 1+ 1 42) (( at f: /60 Hz 3 6۔ كماكم 610](http://img.homeworklib.com/questions/69a80660-e573-11ea-9919-bb642d52ed23.png?x-oss-process=image/resize,w_560)
Add Answer to:
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and...
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and...

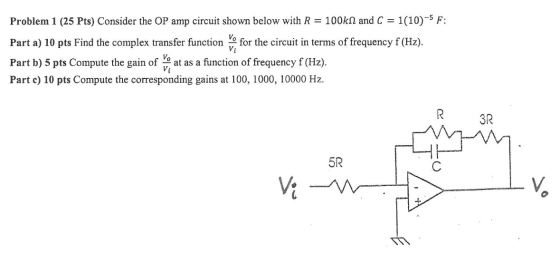

Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-5 F: Part a) 10 pts Find the complex transfer function for the circuit in terms of frequency f (Hz). Vi Part b) 5 pts Compute the gain of at as a function of frequency f(Hz). Part c) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. Vo R 3R 5R с Vů V.
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and...
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-SP: Part a) 10 pts Find the complex transfer function for the circuit in terms of frequency f(Hz). Part b) 5 pts Compute the gain ofat as a function of frequency f(Hz). Parte) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R Vim -VO
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and...
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-5F: Part a) 10 pts Find the complex transfer functions for the circuit in terms of frequency f(Hz). Part b) 5 pts Compute the gain ofat as a function of frequency f(Hz). Parte) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R Vi ve
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and...
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-5F: Part a) 10 pts Find the complex transfer functions for the circuit in terms of frequency f (Hz). Part b) 5 pts Compute the gain of Wat as a function of frequency f (Hz). Part e) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R с Vi ve
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and...
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10): Parta) 10 pts Find the complex transfer function for the circuit in terms of frequency f(Hz). Part b) 5 pts Compute the gain of at as a function of frequency f(Hz). Parte) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R Vå w V
Experimental methodology Problem 1 (25 Pts) Consider the OP amp circuit shown below with R =...
Experimental methodology
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-SP: Part a) 10 pts Find the complex transfer functions for the circuit in terms of frequency f (Hz). Part b) 5 pts Compute the gain of sat as a function of frequency f (Hz). Part e) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R protein Vi - Vo
class: experimental methots Problem 1 (25 Pts) Consider the OP amp circuit shown below with R...
class: experimental methots
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-5F: Part a) 10 pts Find the complex transfer functions for the circuit in terms of frequency f(Hz). Part b) 5 pts Compute the gain ofat as a function of frequency f(Hz). Parte) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R Vi ve
experimental methodology - please solve ASAP Problem 1 (25 Pts) Consider the OP amp circuit shown...
experimental methodology - please solve ASAP
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-SF: Part a) 10 pts Find the complex transfer function for the circuit in terms of frequency f (Hz). Part b) 5 pts Compute the gain ofat as a function of frequency f (Hz). Part e) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R Vi m vo
VO Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100k12...
VO Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100k12 and C = 1(10)-5 F: Part a) 10 pts Find the complex transfer function for the circuit in terms of frequency f (Hz). Vi Part b) 5 pts Compute the gain of ko at as a function of frequency f (Hz). Part c) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. Vi R BR 5R с Vi - Ve
please help ? Final Exam.pdf Page < 2 > of 5 C 20 Problem 1 (25...
please help
?
Final Exam.pdf Page < 2 > of 5 C 20 Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-5 F: Parta) 10 pts Find the complex transfer function for the circuit in terms of frequency f (Hz). Part b) 5 pts Compute the gain of Wat as a function of frequency f (Hz). Parte) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. VE 3R...
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-5 F: Part a) 10 pts Find the complex transfer function for the circuit in terms of frequency f (Hz). Vi Part b) 5 pts Compute the gain of at as a function of frequency f(Hz). Part c) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. Vo R 3R 5R с Vů V.
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-SP: Part a) 10 pts Find the complex transfer function for the circuit in terms of frequency f(Hz). Part b) 5 pts Compute the gain ofat as a function of frequency f(Hz). Parte) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R Vim -VO
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-5F: Part a) 10 pts Find the complex transfer functions for the circuit in terms of frequency f(Hz). Part b) 5 pts Compute the gain ofat as a function of frequency f(Hz). Parte) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R Vi ve
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-5F: Part a) 10 pts Find the complex transfer functions for the circuit in terms of frequency f (Hz). Part b) 5 pts Compute the gain of Wat as a function of frequency f (Hz). Part e) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R с Vi ve
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10): Parta) 10 pts Find the complex transfer function for the circuit in terms of frequency f(Hz). Part b) 5 pts Compute the gain of at as a function of frequency f(Hz). Parte) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R Vå w V
Experimental methodology
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-SP: Part a) 10 pts Find the complex transfer functions for the circuit in terms of frequency f (Hz). Part b) 5 pts Compute the gain of sat as a function of frequency f (Hz). Part e) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R protein Vi - Vo
class: experimental methots
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-5F: Part a) 10 pts Find the complex transfer functions for the circuit in terms of frequency f(Hz). Part b) 5 pts Compute the gain ofat as a function of frequency f(Hz). Parte) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R Vi ve
experimental methodology - please solve ASAP
Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-SF: Part a) 10 pts Find the complex transfer function for the circuit in terms of frequency f (Hz). Part b) 5 pts Compute the gain ofat as a function of frequency f (Hz). Part e) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. R 3R 5R Vi m vo
VO Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100k12 and C = 1(10)-5 F: Part a) 10 pts Find the complex transfer function for the circuit in terms of frequency f (Hz). Vi Part b) 5 pts Compute the gain of ko at as a function of frequency f (Hz). Part c) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. Vi R BR 5R с Vi - Ve
please help
?
Final Exam.pdf Page < 2 > of 5 C 20 Problem 1 (25 Pts) Consider the OP amp circuit shown below with R = 100kN and C = 1(10)-5 F: Parta) 10 pts Find the complex transfer function for the circuit in terms of frequency f (Hz). Part b) 5 pts Compute the gain of Wat as a function of frequency f (Hz). Parte) 10 pts Compute the corresponding gains at 100, 1000, 10000 Hz. VE 3R...
