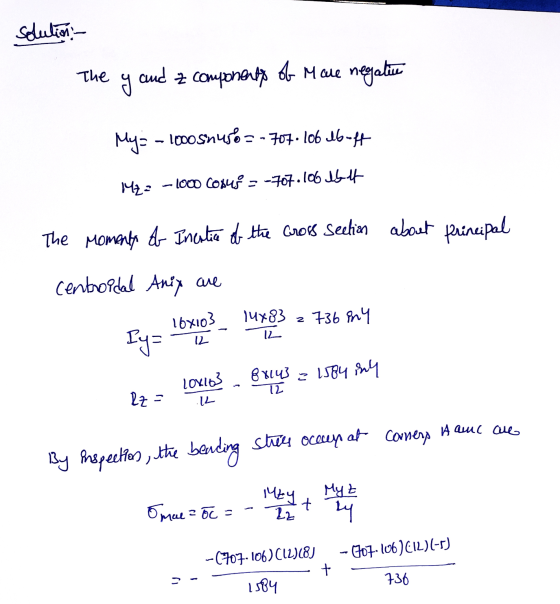

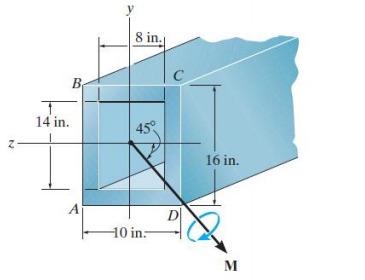

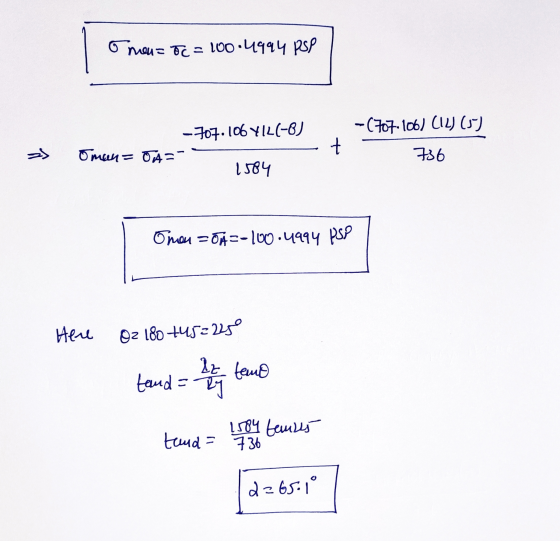

The cross section of a beam is subject to the application of a
moment as
shown in the figure. The moment has the direction and sense seen in
the figure. The
magnitude is 1,000 lb * ft.
Homework Answers
Add Answer to:
The cross section of a beam is subject to the application of a
moment as
shown...
2) A box beam of rectangular cross section shown is subject to a bending moment Mx=2000...
2) A box beam of rectangular cross section shown is subject to a bending moment Mx=2000 lb in. Find the maximum tensile stress and maximum compressive stress and their respective locations. What is the orientation of the neutral axis? 0.064" 12" 0.04" ... . M. 0.072 0.03"
At the cross-section "G" of the beam shown, calculate the internal reactions (forces and moment). Each...
At the cross-section "G" of the beam shown, calculate the internal reactions (forces and moment). Each joint is pin connected 2000 lb 3 ft 400/b 2 ft-2 ft 6 ft
A thin-walled beam has the cross-section shown in the figure below. If the beam is subjected...
A thin-walled beam has the cross-section shown in the figure
below. If the beam is subjected to a bending moment Mx
in the plane of the web 23:
Prob. 2 A thin-walled beam has the cross-section shown in the figure below. If the beam is subjected to a bending moment M in the plane of the web 23: h2 2t 2t 2h 1. 2. Find the section properties Find the direct stress distribution equation in the beam cross-section (15 pts)...
A cantilever cast-iron beam is 6 ft long and has a “T” cross section, as shown....
A cantilever cast-iron beam is 6 ft long and has a “T” cross section, as shown. Calculate the maximum tensile and compressive bending stresses. The applied load is 450 lb. Neglect the weight of the beam. Show the diagram of both (Tensile and Bending stresses at the section area). 450 lb 60" (a) Load diagram (b) Section A-A
1. A beam has a max moment of 45 kN-m. The cross section of the beam is shown in the figure below...
1. A beam has a max moment of 45 kN-m. The cross section of the beam is shown in the figure below. a. State the distance of the centroid from the 2 axis. b. Calculate the area moment of inertia about the centroid. c. Calculate the maximum stress in the beam 300 mm 20 mm 185 mm 20 mm 35 mm
1. A beam has a max moment of 45 kN-m. The cross section of the beam is shown in...
9 The cross-section of a beam is shown below. The top rectanular piece of the cross-section...
9 The cross-section of a beam is shown below. The top rectanular piece of the cross-section is a steel section 6 inches wide by 8 inches deep. The dimensions of the member are shown below in the table. The cross-section is loaded in bending by a moment about the zz-axis. The allowable bending stress of the cross-section is 36 (ksi). Determine: a) the elastic centroid of the cross-section. b) the yield moment. c) the plastic centroid of the cross-section d)...
Problem 1 For the loaded beam with the cross-section shown: A. Find the location of the neutral a...
Problem 1 For the loaded beam with the cross-section shown: A. Find the location of the neutral axis B. Compute the moment of inertia of the section around the neutral axis C. Locate the section of maximum moment then compute the maximum stress due to bending, fb D. Locate the section of maximum shear-compute the shear stress at the neutral axis 3.0 k 8" 1.5 k/ft 1.0 k/ft 2" 8 10 ft 6 ft 4 ft 2" Cross-Section
Problem 1...
A beam with a square tubular cross section is subjected to the loading shown. The cross...
A beam with a square tubular cross section is subjected to the
loading shown. The cross section of the beam is also
shown. Determine the maximum bending stress in the beam given:
L = 9 ft
P = 1,300 lb
do = 6 in
di = 5.4 in
1/3 We were unable to transcribe this imageA beam with a square tubular cross section is subjected to the loading shown. The cross section of the beam is also shown. Determine the...
Consider the 10-m length beam shown in the figure. If the cross section is T shaped...
Consider the 10-m length beam shown in the figure. If the cross section is T shaped as shown [ 8 marks]. determine: a- The maximum bending moment at any location along the beam by drawing the bending diagram. [4 marks] b- The maximum bending stress at beam. [4 marks] 200 mm 15 mm 12 KN T 10 kN/m 160 mm A B с SD 2 m 5 m 3 m 9 mm
Consider the 10-m length beam shown in the figure. If the cross section is T shaped...
Consider the 10-m length beam shown in the figure. If the cross section is T shaped as shown [ 8 marks]. determine: a- The maximum bending moment at any location along the beam by drawing the bending diagram. [4 marks] b- The maximum bending stress at beam. [4 marks] 200 mm 15 mm T 160 mm tk 9 mm 12 KN 10 kN/m B с D 2 m 5 m
2) A box beam of rectangular cross section shown is subject to a bending moment Mx=2000 lb in. Find the maximum tensile stress and maximum compressive stress and their respective locations. What is the orientation of the neutral axis? 0.064" 12" 0.04" ... . M. 0.072 0.03"
At the cross-section "G" of the beam shown, calculate the internal reactions (forces and moment). Each joint is pin connected 2000 lb 3 ft 400/b 2 ft-2 ft 6 ft
A thin-walled beam has the cross-section shown in the figure
below. If the beam is subjected to a bending moment Mx
in the plane of the web 23:
Prob. 2 A thin-walled beam has the cross-section shown in the figure below. If the beam is subjected to a bending moment M in the plane of the web 23: h2 2t 2t 2h 1. 2. Find the section properties Find the direct stress distribution equation in the beam cross-section (15 pts)...
A cantilever cast-iron beam is 6 ft long and has a “T” cross section, as shown. Calculate the maximum tensile and compressive bending stresses. The applied load is 450 lb. Neglect the weight of the beam. Show the diagram of both (Tensile and Bending stresses at the section area). 450 lb 60" (a) Load diagram (b) Section A-A
1. A beam has a max moment of 45 kN-m. The cross section of the beam is shown in the figure below. a. State the distance of the centroid from the 2 axis. b. Calculate the area moment of inertia about the centroid. c. Calculate the maximum stress in the beam 300 mm 20 mm 185 mm 20 mm 35 mm
1. A beam has a max moment of 45 kN-m. The cross section of the beam is shown in...
9 The cross-section of a beam is shown below. The top rectanular piece of the cross-section is a steel section 6 inches wide by 8 inches deep. The dimensions of the member are shown below in the table. The cross-section is loaded in bending by a moment about the zz-axis. The allowable bending stress of the cross-section is 36 (ksi). Determine: a) the elastic centroid of the cross-section. b) the yield moment. c) the plastic centroid of the cross-section d)...
Problem 1 For the loaded beam with the cross-section shown: A. Find the location of the neutral axis B. Compute the moment of inertia of the section around the neutral axis C. Locate the section of maximum moment then compute the maximum stress due to bending, fb D. Locate the section of maximum shear-compute the shear stress at the neutral axis 3.0 k 8" 1.5 k/ft 1.0 k/ft 2" 8 10 ft 6 ft 4 ft 2" Cross-Section
Problem 1...
A beam with a square tubular cross section is subjected to the
loading shown. The cross section of the beam is also
shown. Determine the maximum bending stress in the beam given:
L = 9 ft
P = 1,300 lb
do = 6 in
di = 5.4 in
1/3 We were unable to transcribe this imageA beam with a square tubular cross section is subjected to the loading shown. The cross section of the beam is also shown. Determine the...
Consider the 10-m length beam shown in the figure. If the cross section is T shaped as shown [ 8 marks]. determine: a- The maximum bending moment at any location along the beam by drawing the bending diagram. [4 marks] b- The maximum bending stress at beam. [4 marks] 200 mm 15 mm 12 KN T 10 kN/m 160 mm A B с SD 2 m 5 m 3 m 9 mm
Consider the 10-m length beam shown in the figure. If the cross section is T shaped as shown [ 8 marks]. determine: a- The maximum bending moment at any location along the beam by drawing the bending diagram. [4 marks] b- The maximum bending stress at beam. [4 marks] 200 mm 15 mm T 160 mm tk 9 mm 12 KN 10 kN/m B с D 2 m 5 m
