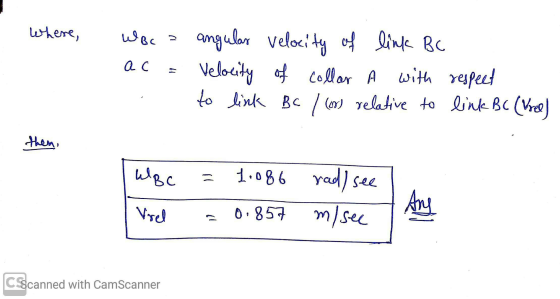

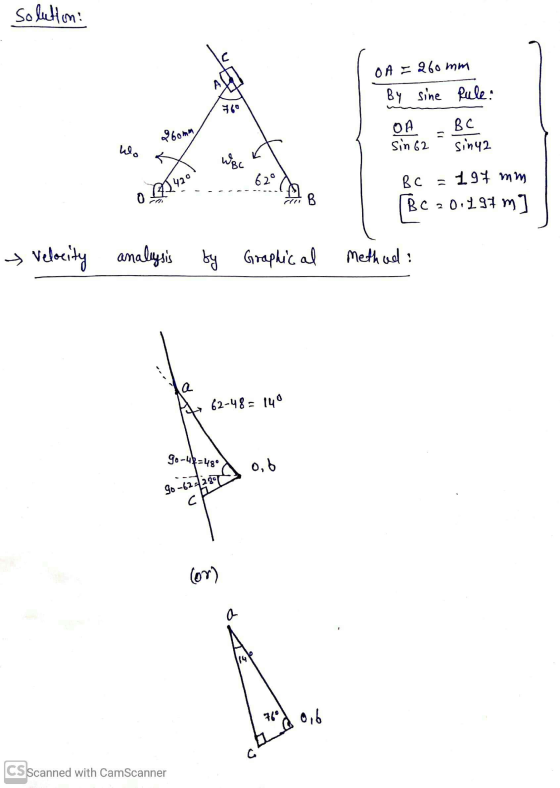

Bar OA has a counterclockwise angular velocity wo = 3.4 rad/s. Rod BC slides freely through...

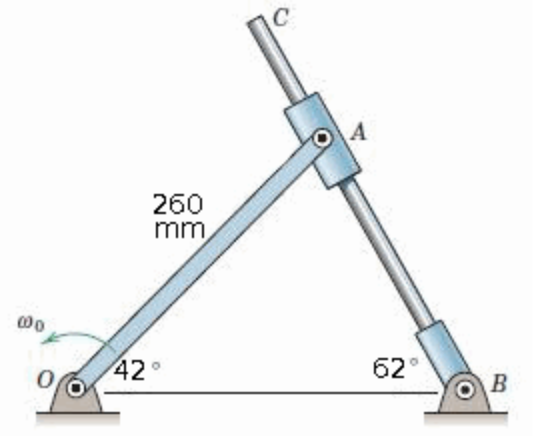

Bar OA has a counterclockwise angular velocity ω0 = 3.4 rad/s. Rod BC slides freely through the pivoted collar attached to OA. Determine the angular velocity ωBC of rod BC (positive if counterclockwise, negative if clockwise) and the velocity Vrel of collar A relative to rod BC (positive if moving from B to C, negative if it moves from C towards B).
Homework Answers
Add Answer to:
Bar OA has a counterclockwise angular velocity wo = 3.4 rad/s. Rod BC slides freely through...
Bar OC rotates with a clockwise angular velocity Woc = 7.9 rad/s. The pin A attached...
Bar OC rotates with a clockwise angular velocity Woc = 7.9 rad/s. The pin A attached to bar OC engages the straight slot of the sector. Determine the angular velocity w of the sector and the velocity Vrel of pin A relative to the sector for the instant represented. The angular velocity is positive if counterclockwise, negative if clockwise. The relative velocity is positive if to the right, negative if to the left. 340 mm O B WOC OA =...
The disk rotates about a fixed axis through point o with a clockwise angular velocity wo...
The disk rotates about a fixed axis through point o with a clockwise angular velocity wo = 20 rad/s and a counterclockwise angular acceleration 0o = 4.1 rad/s2 at the instant under consideration. The value of r is 260 mm. Pin A is fixed to the disk but slides freely within the slotted member BC. Determine the velocity and acceleration of A relative to slotted member BC and the angular velocity and angular acceleration of BC. The relative velocity and...
Bar OC rotates with a clockwise angular velocity woc = 3.3 rad/s and a counterclockwise angular...
Bar OC rotates with a clockwise angular velocity woc = 3.3 rad/s and a counterclockwise angular acceleration Coc = 2.8 rad/s2. The bar OC is a slotted member which accommodates the pin A attached to the sector. Determine the angular velocity w and the angular acceleration a of the sector. The angular velocity and the angular acceleration are positive if counterclockwise, negative if clockwise. 31 B 305 mm DOC 11 doc OA = 380 mm Answers: rad/s rad/s2 Bar OC...
Rod OA rotates counterclockwise with a constant angular velocity of θ = 5 rad/s
Rod OA rotates counterclockwise with a constant angular velocity of θ = 5 rad/s. The double collar B is pin-connected together such that one collar slides over the rotating rod and the other slides over the horizontal curved rod, of which the shape is described by the equation r = 1.5(2-cosθ)ft. (Figure 1) Part AIf both collars weigh 0.80 lb, determine the magnitude of the normal force which the curved rod exerts on one collar at the instant θ = 135°....
The crank OB revolves clockwise at the constant rate ω0 of 5.0 rad/s. For the instant when θ = 90° ...
The crank OB revolves clockwise at the constant rate ω0 of 5.0 rad/s. For the instant when θ = 90° determine the angular acceleration aBD of the rod BD, which slides through the pivoted collar at C. The angular acceleration is positive if counterclockwise, negative if clockwise. Answers: aBD= _______ rad/s2
Bar OC rotates with a clockwise angular velocity ωOC = 2.2 rad/s and a counterclockwise angular acceleration αOC = 2.3 rad/s2. The bar OC is a slotted member which accommodates the pin A attached to t...
Bar OC rotates with a clockwise angular velocityωOC = 2.2 rad/s and a counterclockwise angular
acceleration αOC = 2.3 rad/s2. The
bar OC is a slotted member which accommodates the pin A
attached to the sector. Determine the angular velocity ωand the angular acceleration α of the sector. The angular
velocity and the angular acceleration are positive if
counterclockwise, negative if clockwise.
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 50 rad/s...
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 50 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 85 mm 210 mm OA 135 mm 135 mm Answers: rad/s? OAOT0.00 ap 738 948 ) m/s2
Rod OA rotates counterclockwise at a constant angular rate 4 rad/s. The double collar B is...
Rod OA rotates counterclockwise at a constant angular rate θ = 4 rad/s. The double collar B is pin-connected together such that one collar slides over the rotating rod and the other collar slides over the circular rod described by the equation r = (1.6 cos θ) m. If both collars have mass of 0.5 kg, determine the force which the circular rod exerts on one of the collars and the force that OA exerts on the other collar at...
Crank OA rotates with a constant counterclockwise angular velocity of 13.6 rad/s. Determine the angular acceleration...
Crank OA rotates with a constant counterclockwise angular velocity of 13.6 rad/s. Determine the angular acceleration oAB of link AB for the position shown. The angular acceleration is positive if counterclockwise, negative if clockwise 65 mm 13.6 radls 0 AB 135 mm Answers: OAB rad/s2
Crank OA rotates with a counterclockwise angular velocity of 11.5 rad/s. By the method of this...
Crank OA rotates with a counterclockwise angular velocity of 11.5 rad/s. By the method of this article, determine the angular velocity w of link AB and the velocity of roller for the position illustrated. The angular velocity is positive if counterclockwise, negative if clockwise. Also, find the magnitude of the velocity of the center of link AB. B 65 mm 11.5 rad/s 50 mm AB.135 mm The instantaneous center of body OA is at O. The velocity of Ais vertical...
Bar OC rotates with a clockwise angular velocity Woc = 7.9 rad/s. The pin A attached to bar OC engages the straight slot of the sector. Determine the angular velocity w of the sector and the velocity Vrel of pin A relative to the sector for the instant represented. The angular velocity is positive if counterclockwise, negative if clockwise. The relative velocity is positive if to the right, negative if to the left. 340 mm O B WOC OA =...
The disk rotates about a fixed axis through point o with a clockwise angular velocity wo = 20 rad/s and a counterclockwise angular acceleration 0o = 4.1 rad/s2 at the instant under consideration. The value of r is 260 mm. Pin A is fixed to the disk but slides freely within the slotted member BC. Determine the velocity and acceleration of A relative to slotted member BC and the angular velocity and angular acceleration of BC. The relative velocity and...
Bar OC rotates with a clockwise angular velocity woc = 3.3 rad/s and a counterclockwise angular acceleration Coc = 2.8 rad/s2. The bar OC is a slotted member which accommodates the pin A attached to the sector. Determine the angular velocity w and the angular acceleration a of the sector. The angular velocity and the angular acceleration are positive if counterclockwise, negative if clockwise. 31 B 305 mm DOC 11 doc OA = 380 mm Answers: rad/s rad/s2 Bar OC...
Bar OC rotates with a clockwise angular velocityωOC = 2.2 rad/s and a counterclockwise angular
acceleration αOC = 2.3 rad/s2. The
bar OC is a slotted member which accommodates the pin A
attached to the sector. Determine the angular velocity ωand the angular acceleration α of the sector. The angular
velocity and the angular acceleration are positive if
counterclockwise, negative if clockwise.
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 50 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 85 mm 210 mm OA 135 mm 135 mm Answers: rad/s? OAOT0.00 ap 738 948 ) m/s2
Crank OA rotates with a constant counterclockwise angular velocity of 13.6 rad/s. Determine the angular acceleration oAB of link AB for the position shown. The angular acceleration is positive if counterclockwise, negative if clockwise 65 mm 13.6 radls 0 AB 135 mm Answers: OAB rad/s2
Crank OA rotates with a counterclockwise angular velocity of 11.5 rad/s. By the method of this article, determine the angular velocity w of link AB and the velocity of roller for the position illustrated. The angular velocity is positive if counterclockwise, negative if clockwise. Also, find the magnitude of the velocity of the center of link AB. B 65 mm 11.5 rad/s 50 mm AB.135 mm The instantaneous center of body OA is at O. The velocity of Ais vertical...
