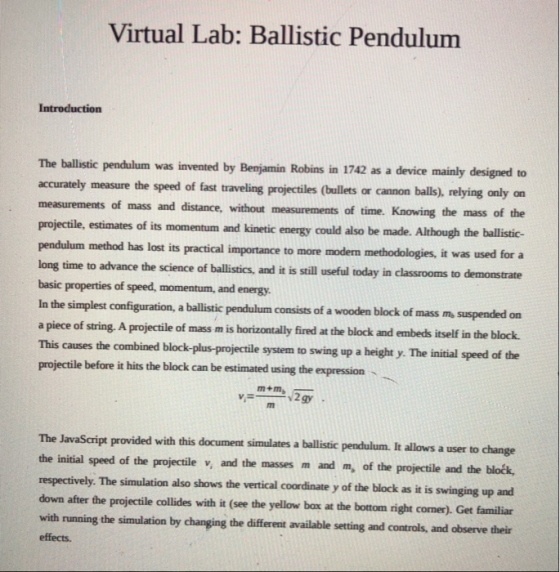

Virtual Lab: Ballistic Pendulum Introduction The ballistic pendulum was invented by Benjamin Robins in 1742 as...
I put the theory on first page. 7-Ballistic Pendulum Data Studio File: "Ballistie Pendlds" Equipment List Qty Items PASCO Interface Rotary Motion Sensor Rod, 45 em Ballistic Pendulum 1Universal Table Clamp Introduction A ballistic pendulum is used to determine the muzzle velocity of a ball shot out of a Projectile Launcher. The laws of conservation of momentum and conservation of energy are used to derive the equation for the muzzle velocity. Theory The ballistic pendulum has historically been used to...
detail information please 11. The ballistic pendulum (see the figure below) is a device used to measure the speed of a fast-moving projectile such as a bullet. The bullet is fired into a large block of wood suspended from some light wires. The bullet is stopped by the block, and the entire system swings up to a height h. m+m V1i 2 (a) Determine the ratio of the momentum immediately after the collision to the momentum immediately before the collision...
In the ballistic pendulum experiment (A.K.A conservation of momentum & energy), the velocity of the projectile was measured and recorded (vo = 5 m/s). The mass of the projectile was 12 g and the ballistic pendulum mass was 148 g. After the projectile is fired, it hits the ballistic pendulum, and both moved with velocity. Calculate the velocity LaTeX: vv of the projectile and the pendulum after the collision.

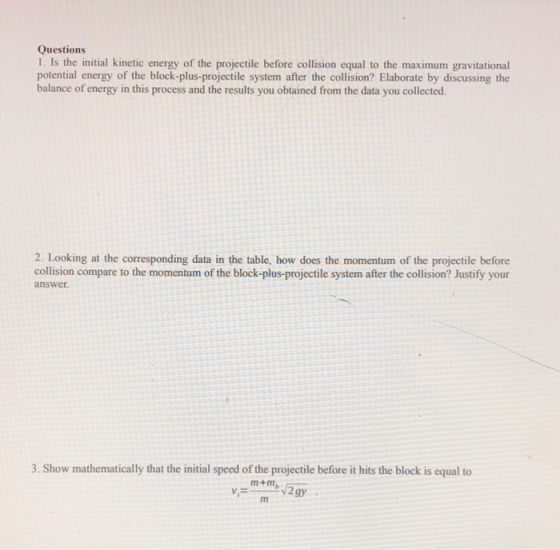

Need help With Analysis questions. Ballistic Pendulum Lab In this lab, you will explore conservation of Energy and Momentum in an inelastic collision between a projectile and a cardboard box suspended from a string. In particular, you will see that the transfer of linear momentum is easily accounted for in an inelastic collision, but the transfer of kinetic energy is not easy to measure directly. This is because Kinetic Energy in collisions transfers to vibrational, acoustic, and potential energy. Once...

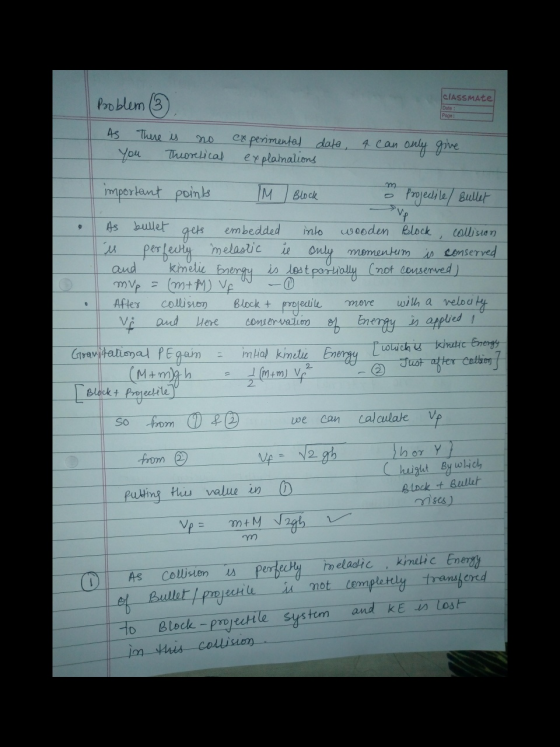

3. The ballistic pendulum is a device used to measure the speed of a projectile, such as a bullet. The projectile, of mass m, is fired into a large block of mass M, which is suspended like a pendulum. As a result of the collision, the pendulum and projectile together swing up to a maximum height h. Determine the relationship between the initial horizontal speed of the projectile, v, and the maximum heighth
A bullet of mass 8 g is fired into a 1.2 kg ballistic pendulum (a block of wood acting as the pendulum bob of a thin metal arm attached to a low friction pivot point) that is initially at rest. The bullet exits the block of wood with a speed of 180 m/s and the wooden block swings from its lowest point to a maximum height of 9.2 cm above that location. Determine the velocity of the bullet before it...
Please help me answer the 4 questions at the bottom for my ballistic pendulum lab. Thank you! Data: Trial # Deflection Angle 36 35.5 36 36 36 35.9 2 Average: Length: 26 cm Height: 5.5 cm Mass: .Of Pendulum- 248.4g Of Projectile-70 g 1. 2. How is h related to the angle of deflection θ ? Hint, show that h-Lil-cod) What is the initial kinetic energy of the projectile before collision? Use SI Units. Hint 3. What is the final...
Part b & c Name Date Data Sheet Experiment 21: Ballistic Pendulum A. The Ballistic Pendulum Mass of ball m- Mass of pendulum M,-0.23 k Trial h2 (m) h1 (m) 0 0:142 Average heighthORSm Initial velocity of ball2ms 30 3 B. The Energy Lost in a Perfectly Inelastic Collision mb 0.0699 Final velocity of ball and pendalam aer the collision m/s Initial Kinétic Energy (J) ie Eaergy ) Kinetic Energy Lost AB a) C.The Determination of the Velocity of the...
Derive the expression for the initial velocity v of a ballistic pendulum in terms of the swept-out angle theta. Use the following equations of momentum and energy conservation... When the projectile and the pendulum stick together, they have total mass m + M and we define their combined velocity to be V⃗ . The relationship from conservation of momentum is: mv = (m + M)V⃗ Conservation of energy requires the initial kinetic energy of the pendulum system to equal the...
Consider a projectile (0.1 kg) fired into a ballistic pendulum (0.5 kg, r_cm = 0.3 m), the resulting collision is inelastic (see Figure 2) and the pendulum swings to a maximum angular deflection of 20 degree. Assume r_cm is the same with or without the projectile attached. What is the maximum PE for the pendulum? Determine the maximum KE for the pendulum and use this value to calculate the initial velocity of the projectile-pendulum just after the collision. Apply the...
