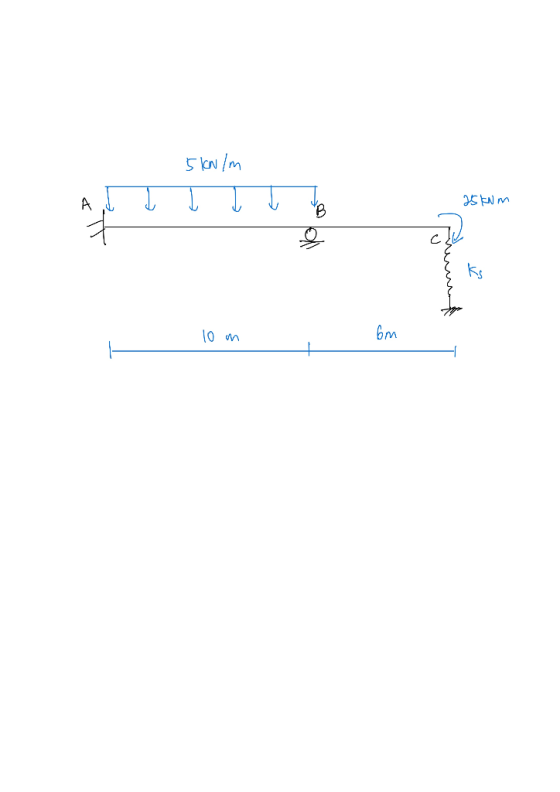

Solve the beam using force method.
Spring stiffness, Ks = 200 KN/m
Homework Answers

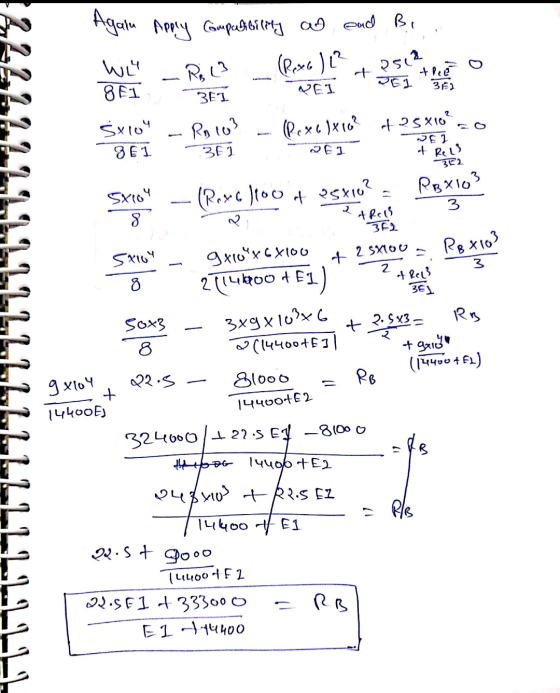

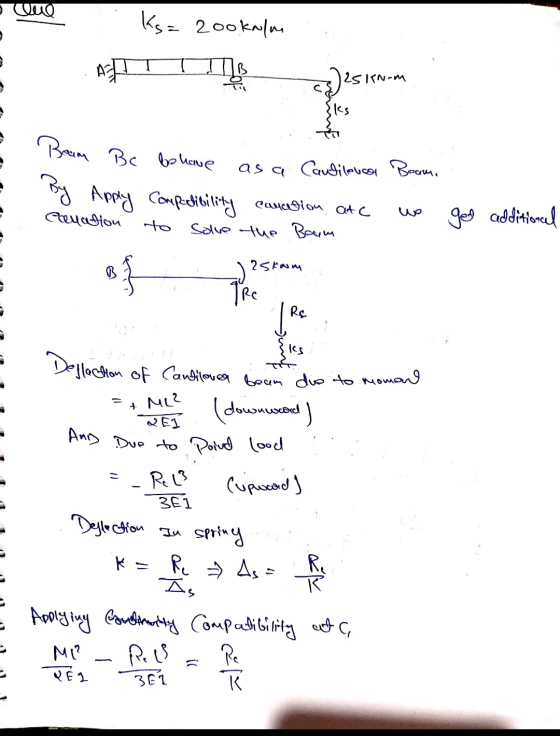

There are various sub method in force method I used compatibility method to solve indeterminate beam.

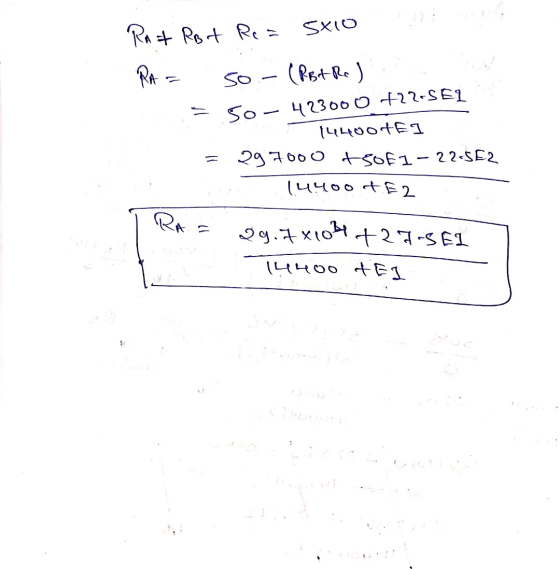

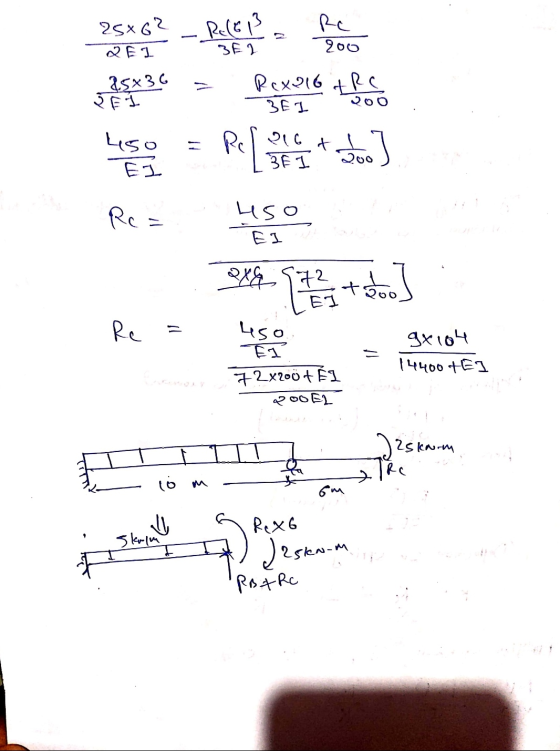

![RECEP Rc 200 BEI 25x62 QEL 25x36 ZEI Rexr16 ARC BEI 450 216 & I SEI 200 EI Ret Pe leta uso 1 2 2 Qxq toto] E1 Re uso 61 72x20](http://img.homeworklib.com/questions/3a163170-e64c-11ea-9c70-9f9e8de4c003.png?x-oss-process=image/resize,w_560)
Add Answer to:
Solve the beam using force method.
Spring stiffness, Ks = 200 KN/m
5 kN/m A E)...
0 Question 3 a) Using the Force Method, determine the reactions at all supports. In addition to t...
0 Question 3 a) Using the Force Method, determine the reactions at all supports. In addition to the applied loads, support at A rotates 0.005 radian counterclockwise Given E=200GPa and i=150 x 106 mm! 200 x 109 (20 marks) oda rotation 5 kN/m 25 kNm 10 m 6 m By Figure 3 b) If a spring is connected at point C, determine the force in this spring using the force Method By comparing to the solution in Question 3(a), what...
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below. Form member and structure stiffness matrices and compute displ...
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below. Form member and structure stiffness matrices and compute displacements, reactions and internal forces developed in the beam Note that there is a hinge at B. Take E = 250 GPa, 1-2000 cm 10 kN 2 kN/m 5 kN-m 10 m
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below....
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below. Form member and structure stiffness matrices and compute di...
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below. Form member and structure stiffness matrices and compute displacements, reactions and internal forces developed in the beam. Note that there is a hinge at B. Take E= 250 G Pa, 1 = 2000 cm- 10 kN 5 kN-m 2 kN/m 10 m
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam...
Q2b Using the direct stiffness method, determine for the beam shown: a) the displacements and rotations...
Q2b Using the direct stiffness method, determine for the beam shown: a) the displacements and rotations of the nodes, the shear forces and moments at the nodes b) Subsequently, draw the deflected shape, shear force and bending moment diagrams. 4m rM Take: El 5 X 106 Nm2, F 10 kN and w 4 kN/m.
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure...
Q5: Using force method, determine the reactions of the
supports for the beam shown in Figure (5). Then draw shear and
bending moment diagrams for the beam. EI is constant. Use conjugate
beam method to determine deflections.
I need it in 30min or 1 h
6 m 50 KN 200 kN.m 22 А В. С 9 m to 3m
Solve the following using Moment Distribution Method 200 KN 200 KN 21 kN/m 20kw/m A "B...
Solve the following using Moment Distribution Method
200 KN 200 KN 21 kN/m 20kw/m A "B اے D 1at EI ET uit 4m 2.5m a.sm 3 m
Using the moment distribution method to solve the beam shown below. Take w = 15.8 kN/m...
Using the moment distribution method to solve the beam shown below. Take w = 15.8 kN/m and L 4.9 m ΒΣ 2EI EI 2L Part 3 Calculate the moment at B Мв kN m Part 4 Calculate the reaction force at C Cy kN
Using force method , determine the reactions of the supports for the beam shown in Figure...
Using force method , determine the reactions of the
supports for the beam shown in Figure ( 5 ) . Then draw shear and
bending moment diagrams for the beam El is constant Use conjugate
beam method to determine deflections ,
6 m 50 KN 200 kN. 9 m - 3 m Fig. (5) BEST WISHES
Solve the structure assigned by the Flexibilities method and stiffness methods (two differents methods)Detne a probable...
Solve the structure assigned by the Flexibilities method and stiffness methods (two differents methods)Detne a probable array of profile types if the problem does not establish one. BEAM 50 kN 20 kN/m 6 m
Solve the structure assigned by the Flexibilities method and stiffness methods (two differents methods)Detne a probable array of profile types if the problem does not establish one. BEAM 50 kN 20 kN/m 6 m
w Using mdm which among the choices that almost gives the relative stiffness of the beam...
w
Using mdm which among the choices that almost gives
the relative stiffness of the beam between roller and hinge
A. I/6
B. I/2
C. 2I/6
D. 2I/5
90 kN/m 165 KN 120 KN.m 3m 1m 2m А в 1mA 2m с D E F
0 Question 3 a) Using the Force Method, determine the reactions at all supports. In addition to the applied loads, support at A rotates 0.005 radian counterclockwise Given E=200GPa and i=150 x 106 mm! 200 x 109 (20 marks) oda rotation 5 kN/m 25 kNm 10 m 6 m By Figure 3 b) If a spring is connected at point C, determine the force in this spring using the force Method By comparing to the solution in Question 3(a), what...
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below. Form member and structure stiffness matrices and compute displacements, reactions and internal forces developed in the beam Note that there is a hinge at B. Take E = 250 GPa, 1-2000 cm 10 kN 2 kN/m 5 kN-m 10 m
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below....
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below. Form member and structure stiffness matrices and compute displacements, reactions and internal forces developed in the beam. Note that there is a hinge at B. Take E= 250 G Pa, 1 = 2000 cm- 10 kN 5 kN-m 2 kN/m 10 m
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam...
Q2b Using the direct stiffness method, determine for the beam shown: a) the displacements and rotations of the nodes, the shear forces and moments at the nodes b) Subsequently, draw the deflected shape, shear force and bending moment diagrams. 4m rM Take: El 5 X 106 Nm2, F 10 kN and w 4 kN/m.
Q5: Using force method, determine the reactions of the
supports for the beam shown in Figure (5). Then draw shear and
bending moment diagrams for the beam. EI is constant. Use conjugate
beam method to determine deflections.
I need it in 30min or 1 h
6 m 50 KN 200 kN.m 22 А В. С 9 m to 3m
Solve the following using Moment Distribution Method
200 KN 200 KN 21 kN/m 20kw/m A "B اے D 1at EI ET uit 4m 2.5m a.sm 3 m
Using the moment distribution method to solve the beam shown below. Take w = 15.8 kN/m and L 4.9 m ΒΣ 2EI EI 2L Part 3 Calculate the moment at B Мв kN m Part 4 Calculate the reaction force at C Cy kN
Using force method , determine the reactions of the
supports for the beam shown in Figure ( 5 ) . Then draw shear and
bending moment diagrams for the beam El is constant Use conjugate
beam method to determine deflections ,
6 m 50 KN 200 kN. 9 m - 3 m Fig. (5) BEST WISHES
Solve the structure assigned by the Flexibilities method and stiffness methods (two differents methods)Detne a probable array of profile types if the problem does not establish one. BEAM 50 kN 20 kN/m 6 m
Solve the structure assigned by the Flexibilities method and stiffness methods (two differents methods)Detne a probable array of profile types if the problem does not establish one. BEAM 50 kN 20 kN/m 6 m
w
Using mdm which among the choices that almost gives
the relative stiffness of the beam between roller and hinge
A. I/6
B. I/2
C. 2I/6
D. 2I/5
90 kN/m 165 KN 120 KN.m 3m 1m 2m А в 1mA 2m с D E F
