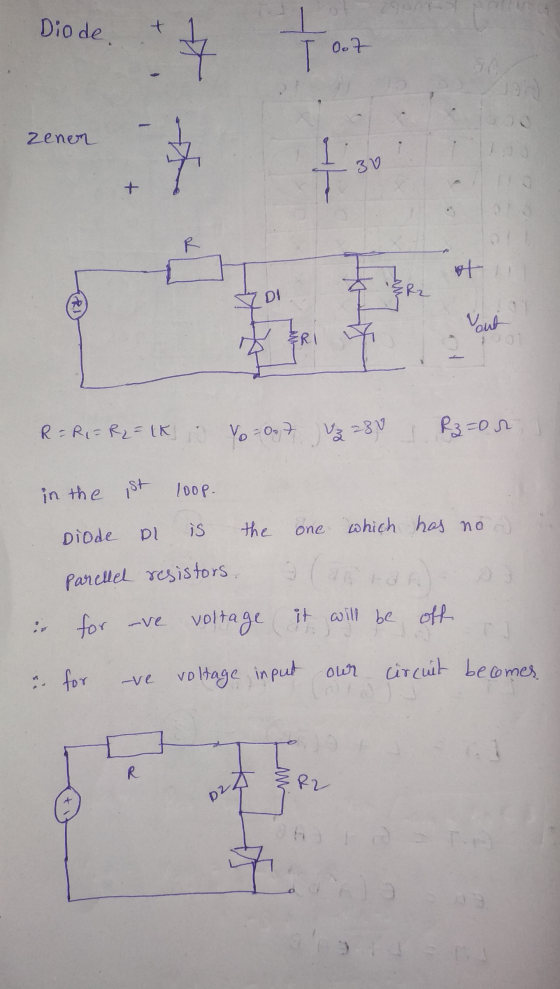

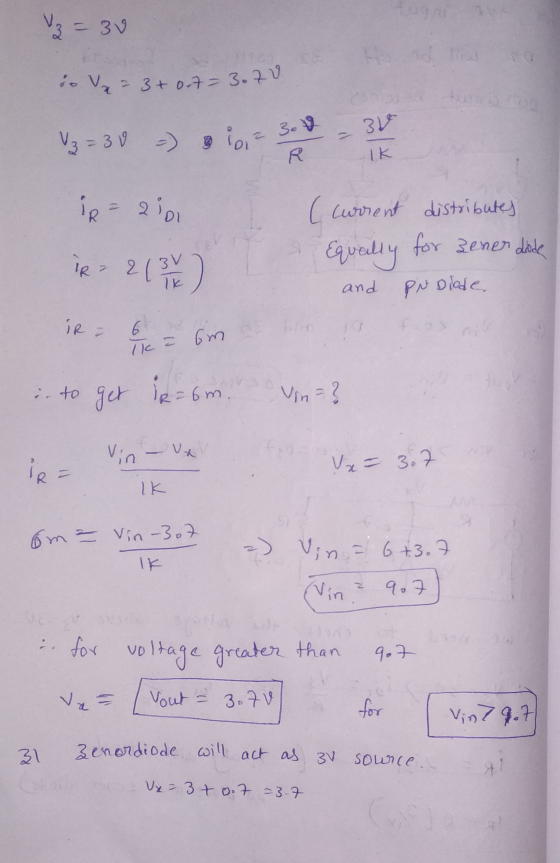

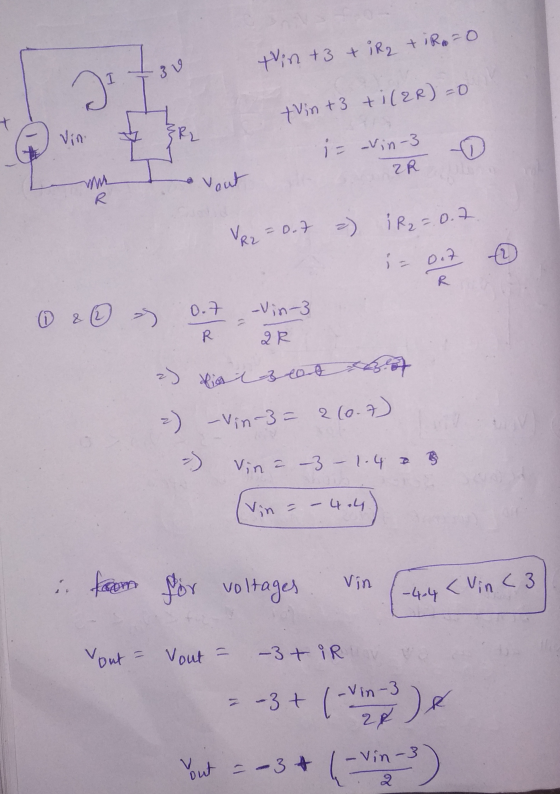

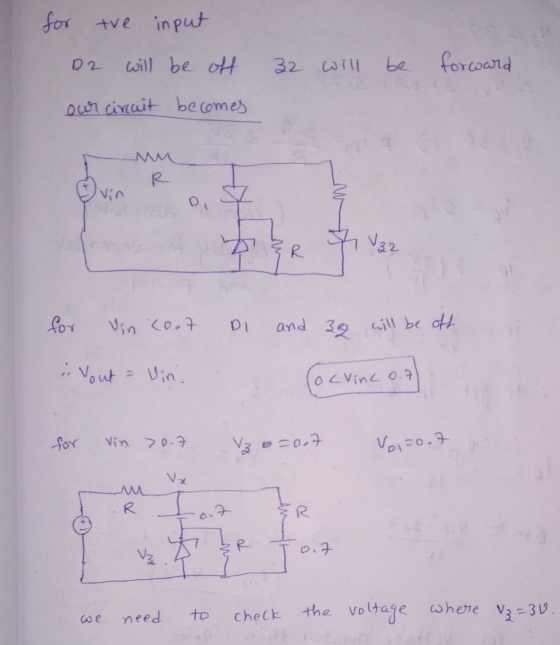

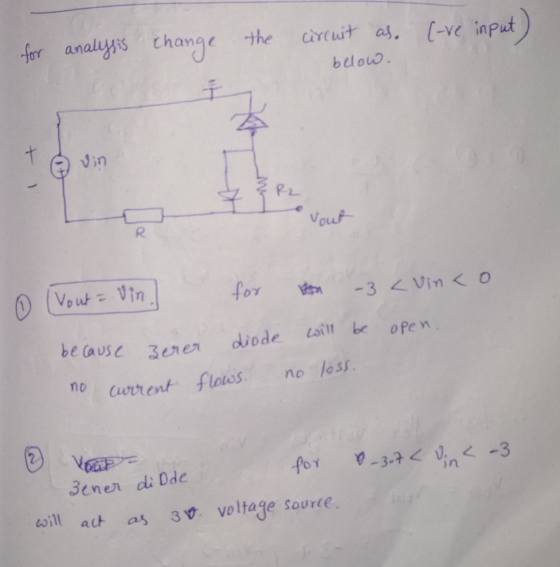

a) Use the constant voltage drop model for the diode and determine the input / output ratio (Vout x Vin), equations. Vdon = 0.7V, rz = 0Ω, Vz = 3V and R = R1 = R2 = 1000Ω.

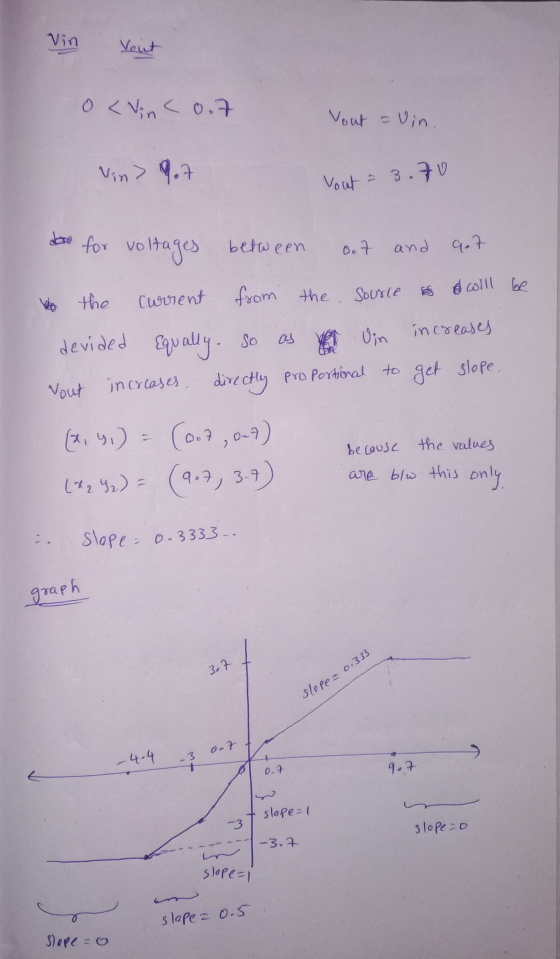

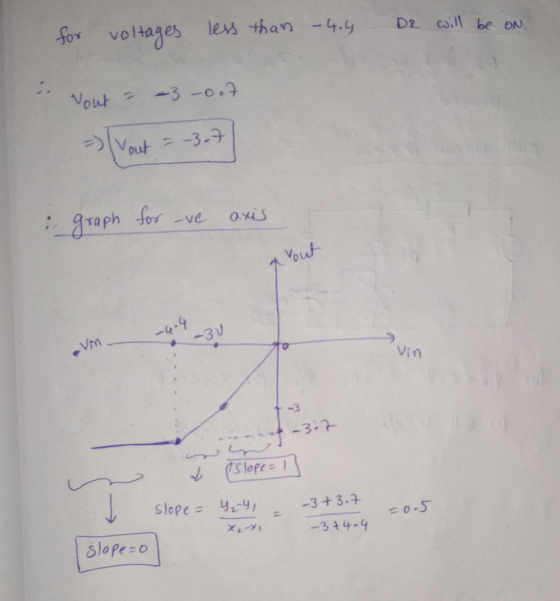

b) Draw the Vout x Vin graph. Highlight the slope coefficients of the lines and the coordinates of the points where the slope changes occur.
Homework Answers
Add Answer to:
a) Use the constant voltage drop model for the diode and
determine the input / output...
For the diodes, use the models shown below; the regular diode model has 0.7V forward bias...
For the diodes, use the models shown below; the regular diode
model has 0.7V forward bias voltage; the Zener diode model has -3V
breakdown voltage
Question 2 (25 points) For the diodes, use the models shown below; the regular diode model has 0.7V forward bias voltage; the Zener diode model has -3V breakdown voltage. a) Determine the minimum positive value of in to make D1 conduct current. (10 pts) b) Determine the minimum positive value of lin to make D2...
(25 pts)For the circuit below assuming an ideal diode with a 0.7 V drop (You must...
(25 pts)For the circuit below assuming an ideal diode with a 0.7 V drop (You must fill in the information in the boxes below): a. Sketch Vout VS. Vin- b. When Vin -5V: Determine which diode leg is conducting, the current flowing through the diode, and Vout? c. Find the values in part b when Vin 0.3V? d. Find the values in part b when Vin 3V? R 1-2k, R2 = 6k. R1 R2 D2 Vout DI R2
a) Using the constant voltage drop (CVD) model, what is the minimum input voltage that can...
a) Using the constant voltage
drop (CVD) model, what is the minimum input
voltage that can reach the MOS circuitry before a diode
turns on, shunting the current to ground? (At this point you
can assume R1 = R2 = 0Ω)
b) Using the constant voltage drop (CVD) model, what is the
maximum input voltage that can reach the MOS
circuitry before a diode turns on, shunting the current to the
supply (Vdd)? (At this point you can assume R1...
Q5: In the following circuit, identical diodes Dl and D2 use constant voltage drop (CVD) model....
Q5: In the following circuit, identical diodes Dl and D2 use constant voltage drop (CVD) model. VD,ON = 800 mV, R1 = 1 K. Determine the change in Vout if Vin changes from +2.4V to +2.5V. (Hint: use small signal model) Vin - DR Nyu out 'out 1K12 z Q6: The following BJT circuit has VBE = 0.8V, VA = 10V, Vcc = 2.5V. The amplifier must be designed for maximum small signal voltage gain Ay, while maintaining Q1 operating...
Plot the output for each circuit, assuming the constant voltage drop model (CVD) for the diode....
Plot the output for each circuit, assuming the constant voltage
drop model (CVD) for the diode.
(B) Full-wave rectifier: D2 Di Vi = 5V, sin(2π 103 t) D3 D4
Problem 1: Solve for power supplied by 5V source with the constant voltage model. Use Vb,on...
Problem 1: Solve for power supplied by 5V source with the constant voltage model. Use Vb,on 700mV for every diode. (Answer: 143mW) D2 100m R3 100 R4 50 R2 150 D1 R1 50 V1 5
Consider the full-wave rectifier circuit below. Use a constant voltage drop model for the diodes with...
Consider the full-wave rectifier circuit below. Use a constant voltage drop model for the diodes with VD 1. 0.7 V. Let v": 10 sin(2n(2000 and RI-100Q. (6 pt) Calelae the average vales of oun uinege D1 D4 V1 R1 with respect to time or angle. out b. (2+3 pts) A capacitor is placed across RI to reduce the ripple to D3 D2 20 mVp-p. Find the capacitor value. (2+3 pts) Calculate the approximate average Vout value assuming a 20 m...
For the diodes, use the models shown below; the regular diode
model has 0.7V forward bias voltage; the Zener diode model has -3V
breakdown voltage
Question 2 (25 points) For the diodes, use the models shown below; the regular diode model has 0.7V forward bias voltage; the Zener diode model has -3V breakdown voltage. a) Determine the minimum positive value of in to make D1 conduct current. (10 pts) b) Determine the minimum positive value of lin to make D2...
(25 pts)For the circuit below assuming an ideal diode with a 0.7 V drop (You must fill in the information in the boxes below): a. Sketch Vout VS. Vin- b. When Vin -5V: Determine which diode leg is conducting, the current flowing through the diode, and Vout? c. Find the values in part b when Vin 0.3V? d. Find the values in part b when Vin 3V? R 1-2k, R2 = 6k. R1 R2 D2 Vout DI R2
a) Using the constant voltage
drop (CVD) model, what is the minimum input
voltage that can reach the MOS circuitry before a diode
turns on, shunting the current to ground? (At this point you
can assume R1 = R2 = 0Ω)
b) Using the constant voltage drop (CVD) model, what is the
maximum input voltage that can reach the MOS
circuitry before a diode turns on, shunting the current to the
supply (Vdd)? (At this point you can assume R1...
Q5: In the following circuit, identical diodes Dl and D2 use constant voltage drop (CVD) model. VD,ON = 800 mV, R1 = 1 K. Determine the change in Vout if Vin changes from +2.4V to +2.5V. (Hint: use small signal model) Vin - DR Nyu out 'out 1K12 z Q6: The following BJT circuit has VBE = 0.8V, VA = 10V, Vcc = 2.5V. The amplifier must be designed for maximum small signal voltage gain Ay, while maintaining Q1 operating...
Plot the output for each circuit, assuming the constant voltage
drop model (CVD) for the diode.
(B) Full-wave rectifier: D2 Di Vi = 5V, sin(2π 103 t) D3 D4
Problem 1: Solve for power supplied by 5V source with the constant voltage model. Use Vb,on 700mV for every diode. (Answer: 143mW) D2 100m R3 100 R4 50 R2 150 D1 R1 50 V1 5
Consider the full-wave rectifier circuit below. Use a constant voltage drop model for the diodes with VD 1. 0.7 V. Let v": 10 sin(2n(2000 and RI-100Q. (6 pt) Calelae the average vales of oun uinege D1 D4 V1 R1 with respect to time or angle. out b. (2+3 pts) A capacitor is placed across RI to reduce the ripple to D3 D2 20 mVp-p. Find the capacitor value. (2+3 pts) Calculate the approximate average Vout value assuming a 20 m...
