Q. 4. (a) Draw a small signal equivalent circuit by replacing the BJT with its hybrid-mt...

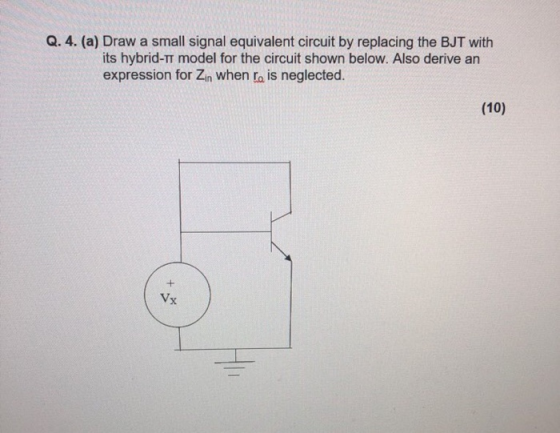

Q. 4. (a) Draw a small signal equivalent circuit by replacing the BJT with its hybrid-1 model for the circuit shown below. Also derive an expression for Zin when ro is neglected. (iv) + Vx
Draw a small signal equivalent circuit by replacing the BJT with its hybrid-i model for the circuit shown below. Also derive an expression for Zin when rais neglected. + Vx

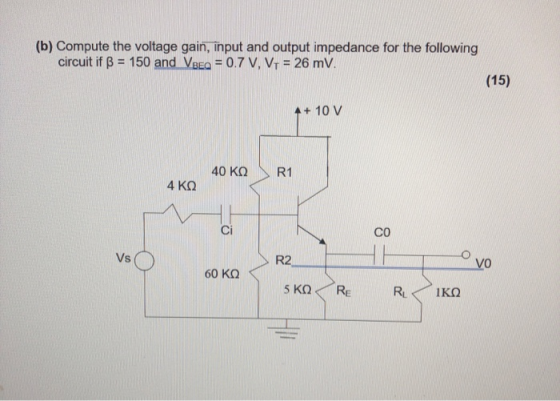

(b) Compute the voltage gain, input and output impedance for the following circuit if ß = 150 and VBEQ = 0.7 V, V1 = 26 mV. A + 10 V 40 ΚΩ R1 4 ΚΩ Ci CO Vs R2 VO 60 ΚΩ 5 ΚΩ RE RL 1ΚΩ
Compute the voltage gain, input and output impedance for the following circuit if ß = 150 and VBEQ = 0.7 V, VI = 26 mV. 4 + 10 V 40 ΚΩ R1 4 ΚΩ Ci CO Vs R2 VO 60 ΚΩ 5 ΚΩ RE R 1ΚΩ
2. For the common-emitter amplifier. B= 50. Vcc=12 a) Draw small signal circuit b) Find vout/vin Find Zin and Zou Vcc R1 27k R2 2.2k Zout Zin Vo 4 C1 16 BIG Q1 NPN V1 C2 V R3 15k RE 1.2k BIG
7.53 For the circuit shown in Fig. P7.53, draw a complete small-signal equivalent circuit utilizing an appropriate T model for the BJT (use a =0.99). Your circuit should show the values of all components, including the model parameters. What is the input resistance R ? Calculate the overall voltage gain (v,/v). (also find A, for this amp) sig +5 V RC 12 kΩ C2 RL 12 ΚΩ Rsig 75 N ) 0.33 mA Vsig Rin Figure P7.53
Rsig Nahyan vgs ( gmugs, r01 RDS Vsig ) Ril Consider the small signal equivalent circuit of an amplifier shown above. The parameters are given to be: R1 = 3000, R2 = 10160, R2=100%, RD=RL=50 Rsig = 202, VGS1=3.5V. Vt = 0.5V and kn = 1mA/V^2. The transistor output resistances are represented by ro1, ra2 with both the transistors in saturation and having |MAL= 40V and same DC current flowing through them Find the small signal parameter of the MOSFET:...
