Question

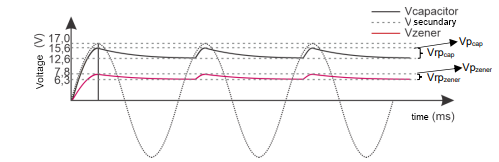

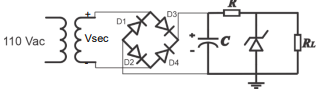

The circuit below was assembled and the obtained waveforms can be seen in the graph (Vsecpico: 17V / 60Hz, C = 653 uF, R = 60Ω, RL = 60Ω, Vz = 5V and
rz = 5Ω). Use the constant voltage drop model for diode VDon = 0.7V

D1, 110 Vac Vsec 这个字: Det

Vcapacitor V secundary Vzener TVграар > Vrpen Vpcap Voltage (V) ONNU Wuco 00 Vpze time (ms)
a) Analyzing the circuit and waveforms, which components are open (burned)? Justify.
When replacing the burnt components with new ones

b) What is the peak voltage (Vp) in the capacitor and in the zener? Justify.
c) What is the amplitude of the ripple voltage (Vrp) in the capacitor and in the zener. Justify.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

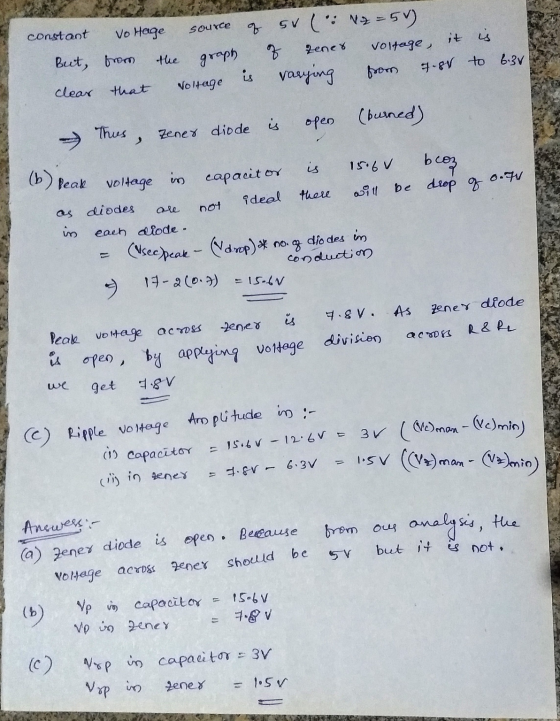

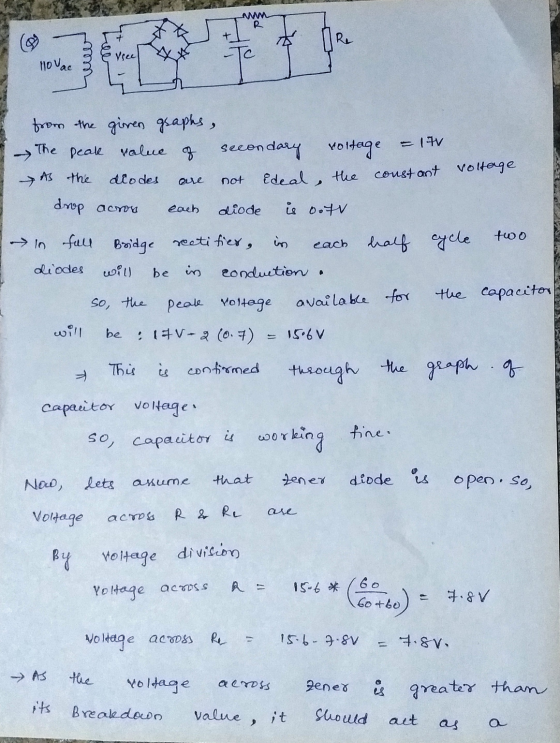

R Re Vsee -Tc Hovac from the given graphs, The peale value of secondary voltage = 14V dlodes ideal, the constant voltage As tSource SV constant vo Hage sv (: N2=50 But, from the graph 3 zenes voltage, it is clear that is varying Voltage porn 7.88 to
