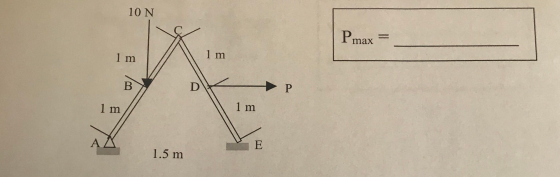

Two parts of a frame are pin connected together at C. A 10 N load acts downward on ABC at point B and an additional force, P, is applied at D on member CDE. If the coefficient of static friction at E is 0.25, what is the largest force P that can be applied? Assume all members have negligible weight
Homework Answers

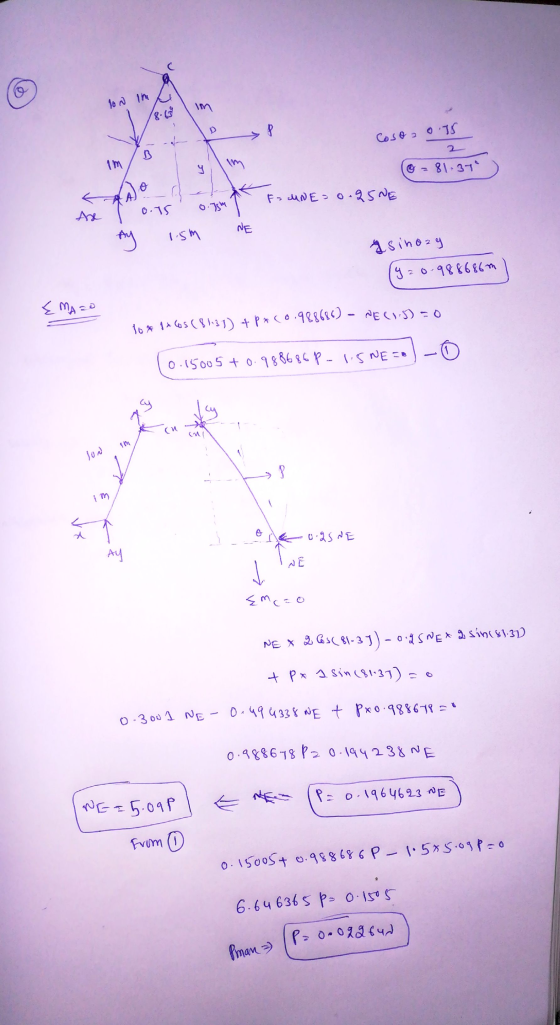

here,
I assumed that both A and E are on the same level.Add Answer to:
Two parts of a frame are pin connected together at C. A 10 Nload acts...
W The figure shows a frame consisting of two members joined together at pin B and...
W The figure shows a frame consisting of two members joined together at pin B and supported at C and D. a) Draw the free body diagram of member ABD. b) Calculate the force applied by pin B on the member. c) Calculate the forces at D. OD (hint: member BC is an axial member) Aa 4m 8m 6 kN
Question 3 (6) The structure below is a frame supported by a pin at Cand a...
Question 3 (6) The structure below is a frame supported by a pin at Cand a roller at E. A tension, T = 20 kN is used to establish static equilibrium. Determine the force the member DB exerts on the ABC at B. Block A of weight 1200N rests on a rough horizontal plane. The coefficient of static friction between the surfaces of the block and the plane is 0.40. Lengths AB BC = 4m; CD=DE = 3m A 30°...
A pin-connected frame is loaded as shown in the figure. a.) determine the reaction at C...
A
pin-connected frame is loaded as shown in the figure.
a.) determine the reaction at C of the pin- connected
frame.
b.) determine the reaction at B of the pin- connected
frame.
c.) determine the shear force acting on section 2 (just to the
right of the 600 N load) of the pin-connected frame.
с 800 N 0.8 m ! 2 D B o 600 N 0.8 m 0.9 m 0.9 m A
AB length is 4000mm AD length is 3000mm A pin jointed frame ABCD is supported by...
AB length is 4000mm
AD length is 3000mm
A pin jointed frame ABCD is supported by a pinned support at A, a roller at B and is subjected to the loading indicated in Figure Q1. All members have circular cross-section and all are made of steel materials with same cross-section. Determine the support reactions at A and B Determine all the member forces Find out the horizontal displacement at point C using a table template as shown in Table Q1....
The pin-connected structure shown in Fig. 5 consists of a rigid bar ABCD and two 1,500-mm-long...
The pin-connected structure shown in Fig. 5 consists of a rigid bar ABCD and two 1,500-mm-long bars. Bar (1) is steel [E=200 GPa] with a cross-sectional area of A1 = 510 mm2. Bar (2) is an aluminium alloy [E-70 GPa] with a cross-sectional area of A2 1,300 mm2. All bars are unstressed before the load P is applied. If a concentrated load of P 200 kN acts on the structure at D determine: (a) the normal stresses in both bars...
1) Rigid bar ABC is supported by pin-connected axial member (1) and by a pin connection...
1) Rigid bar ABC is supported by pin-connected axial member (1) and by a pin connection at C, as shown in the figure. A concentrated load is applied to the rigid bar at A. Assume P = 5,300 b, a = 20 in, b= 30 in., c = 13 in., and d = 28 in. Determine the magnitude of the maximum internal shear force within pin C. A. 3670 lb B. 3720 lb C. 3850 lb D. 3940 lb E....
Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Two slender rods of negligible weight are pin-connected at C and atta...
Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Two slender rods of negligible weight are pin-connected at C and attached to blocks A and B, each of weight W. The value of Pis 1.266W and that the coefficient of static friction between the blocks and the horizontal surface is 0.30. 60° 30° Determine the range of values of 6, between O and 180, for which equilibrium...
Q1. Two rigid members (BCDE and EKN) are connected by a pin at E. The structure is supported by a...
Q1. Two rigid members (BCDE and EKN) are connected by a pin at E. The structure is supported by a pin at B and two rollers at D and N. An inclined distributed load is acting between E and K with the horizontal (12 kN/m) and vertical (16 kN/m) components. Neglect own weights and thicknesses of the members. f w 26.667 kN/m, 1.5m Draw necessary free body diagrams and determine the reaction forces at roller supports (D and N) and...
Question 1 (25 points) Determine the horizontal displacement of point C. Assume the members are pin...
Question 1 (25 points) Determine the horizontal displacement of point C. Assume the members are pin connected at their ends. Take A = 400 mm? and E = 200 GPa for each member. 5 kN C 2 m 1.5 m 10 kN Member Foron N: Member forces due to external force P and external applied forces are shown on the figurt. Castigliano's Second Theorem : Applying Eq. 9-27, we have
W The figure shows a frame consisting of two members joined together at pin B and supported at C and D. a) Draw the free body diagram of member ABD. b) Calculate the force applied by pin B on the member. c) Calculate the forces at D. OD (hint: member BC is an axial member) Aa 4m 8m 6 kN
Question 3 (6) The structure below is a frame supported by a pin at Cand a roller at E. A tension, T = 20 kN is used to establish static equilibrium. Determine the force the member DB exerts on the ABC at B. Block A of weight 1200N rests on a rough horizontal plane. The coefficient of static friction between the surfaces of the block and the plane is 0.40. Lengths AB BC = 4m; CD=DE = 3m A 30°...
A
pin-connected frame is loaded as shown in the figure.
a.) determine the reaction at C of the pin- connected
frame.
b.) determine the reaction at B of the pin- connected
frame.
c.) determine the shear force acting on section 2 (just to the
right of the 600 N load) of the pin-connected frame.
с 800 N 0.8 m ! 2 D B o 600 N 0.8 m 0.9 m 0.9 m A
AB length is 4000mm
AD length is 3000mm
A pin jointed frame ABCD is supported by a pinned support at A, a roller at B and is subjected to the loading indicated in Figure Q1. All members have circular cross-section and all are made of steel materials with same cross-section. Determine the support reactions at A and B Determine all the member forces Find out the horizontal displacement at point C using a table template as shown in Table Q1....
The pin-connected structure shown in Fig. 5 consists of a rigid bar ABCD and two 1,500-mm-long bars. Bar (1) is steel [E=200 GPa] with a cross-sectional area of A1 = 510 mm2. Bar (2) is an aluminium alloy [E-70 GPa] with a cross-sectional area of A2 1,300 mm2. All bars are unstressed before the load P is applied. If a concentrated load of P 200 kN acts on the structure at D determine: (a) the normal stresses in both bars...
1) Rigid bar ABC is supported by pin-connected axial member (1) and by a pin connection at C, as shown in the figure. A concentrated load is applied to the rigid bar at A. Assume P = 5,300 b, a = 20 in, b= 30 in., c = 13 in., and d = 28 in. Determine the magnitude of the maximum internal shear force within pin C. A. 3670 lb B. 3720 lb C. 3850 lb D. 3940 lb E....
Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Two slender rods of negligible weight are pin-connected at C and attached to blocks A and B, each of weight W. The value of Pis 1.266W and that the coefficient of static friction between the blocks and the horizontal surface is 0.30. 60° 30° Determine the range of values of 6, between O and 180, for which equilibrium...
Q1. Two rigid members (BCDE and EKN) are connected by a pin at E. The structure is supported by a pin at B and two rollers at D and N. An inclined distributed load is acting between E and K with the horizontal (12 kN/m) and vertical (16 kN/m) components. Neglect own weights and thicknesses of the members. f w 26.667 kN/m, 1.5m Draw necessary free body diagrams and determine the reaction forces at roller supports (D and N) and...
Question 1 (25 points) Determine the horizontal displacement of point C. Assume the members are pin connected at their ends. Take A = 400 mm? and E = 200 GPa for each member. 5 kN C 2 m 1.5 m 10 kN Member Foron N: Member forces due to external force P and external applied forces are shown on the figurt. Castigliano's Second Theorem : Applying Eq. 9-27, we have
