Incremental Stress-Soil Mechanics. Show working and select the right option

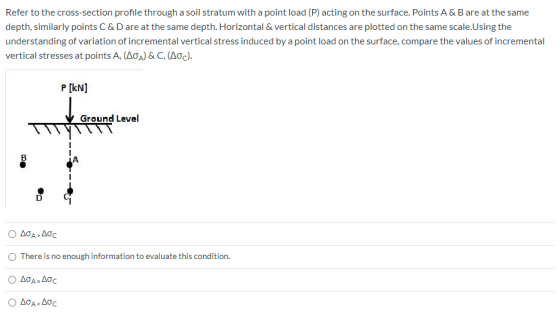

Refer to the cross-section profile through a soil stratum with a point load (P) acting on the surface. Points A & B are at the same depth, similarly points C&D are at the same depth. Horizontal & vertical distances are plotted on the same scale.Using the understanding of variation of incremental vertical stress induced by a point load on the surface, compare the values of incremental vertical stresses at points A, (A0A) & C, (Ac). P [kN] Ground Level mo A0AA0C There is no enough information to evaluate this condition. Ο ΔΟΑ = Δσς Ο ΔΟΑ: Δες

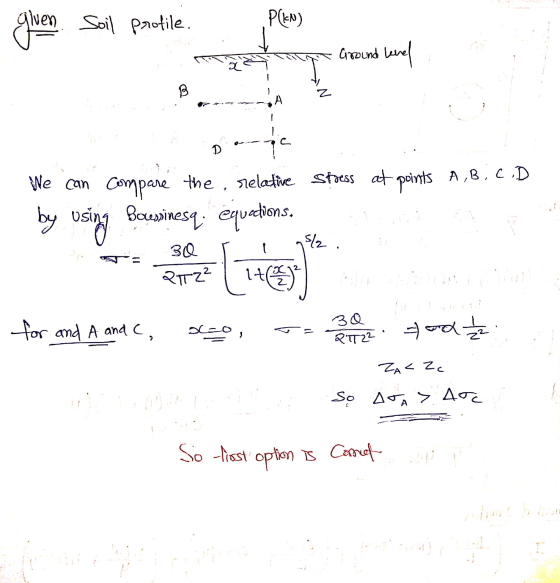

Answer 1
