5- The beam shown below has an internal hinge at point C. Support A is fixed...

Question

Question

5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller. a-Draw the free bod

engineering Civil-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Solution is attached in the image Posted below.

Hope it helps.

If you have any query please comment in the comment box.

A positive response from your side will help me.

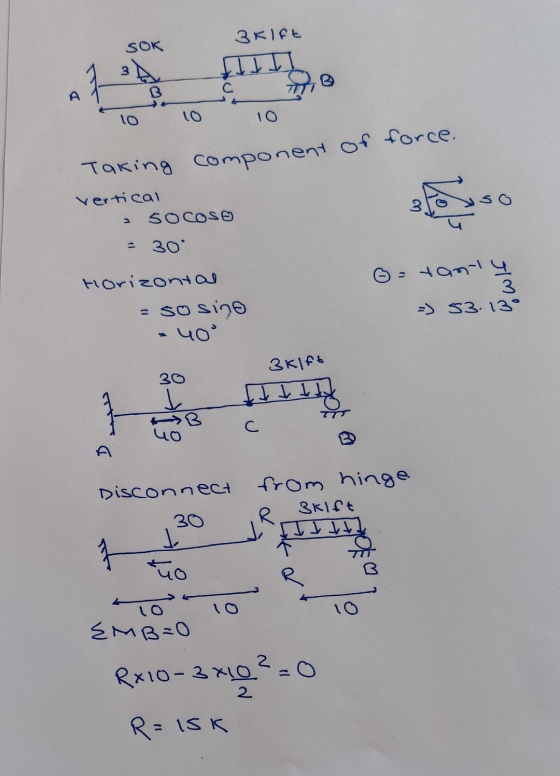

Зк) ее SOK A Taking component of force. vertical 50 COSO 10 10 - 30 Horizontal - so sino you tanty 3 =) 53. 13° 30 3klft tid

3Kft 136 I LIS TTT с n is С 8 ५० LO 10 Ak, Ay, Am, Dy NOW taking CD: Efy=0 1st Dy= 3x10 30-15 2 - ISK Taking span AC Efy=0 A

Add a comment

Answer 2

Similar Homework Help Questions

Please help with this question. 5- The beam shown below has an internal hinge at point...

Please help with this question. 5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller a-Draw the free body diagram for the beam (5 points) b-solve for the reaction forces at support A and D Ax= (5 point) Ay = (5 point) Am = (5 points) Dy = (5 points) 50K 3K/ft OD B C 7777 10 ft 10 ft 10 ft * >
5- The beam shown below has an internal hinge at point C. Support A is fixed...

5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller. a-Draw the free body diagram for the beam (5 points) b-solve for the reaction forces at support A and D Ax (5 point) Ay (5 point) Am (5 points) D- (5 points) SOK 3K/ft # B с 10 10 ft 10 ft B ot - inted CORE IS CF-33 A1 A2
Statics 5- The beam shown below has an internal hinge at point C. Support A is...

Statics 5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller. a-Draw the free body diagram for the beam (5 points) b- solve for the reaction forces at support A and D (5 point) Ay (5 points) A- (5 point) Am (5 points) D- SOK 3K/A B 10.17 10 ft 10 ft *
