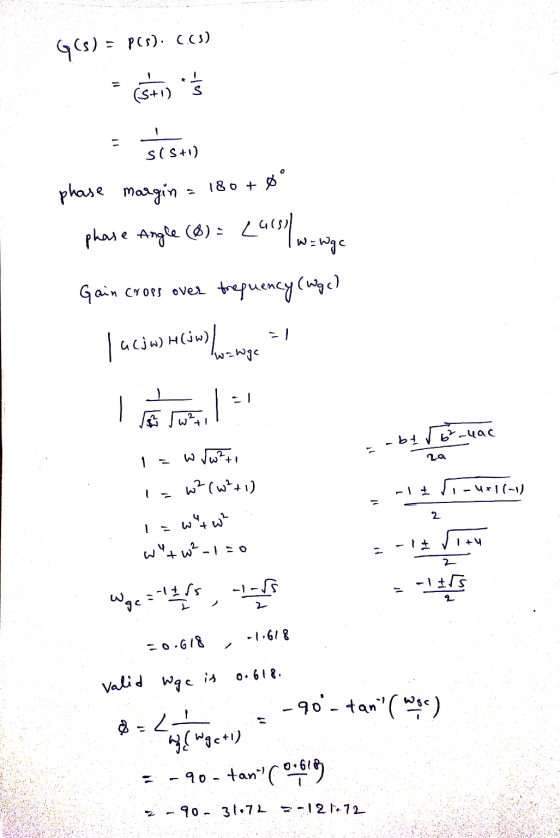

Find the gain and phase margin when the plant and controller are: P(s) = 1/(s+1), C(s) = 1/s


Find the gain and phase margin when the plant and controller are: P(s) = 1/(s+1), C(s)...
Q.3(a) Transfer function model of a plant is, G(s) The controller is Ge(s)-K, where K is a constant. Find the value of K such that steady-state error for unit ramp input is 0.1. Find the gain margin and the phase mar gin (6 marks) (b) What are the effects on gain margin, phase margin and steady-state error, if the gain K is increased? (3 marks (c) Can the closed loop be unstable if the controller of Q.3(a) is implemented digi...
Find the gain margin, phase margin, gain crossover frequency (wc), and phase crossover frequency (wp) analytically (without Bode plot) for the following transfer function: F(s) = [10*(s+2)]/[s*(s+1)*(s^2 + 2s + 12)].
Consider the unity-feedback system shown below: R(s) E(s) input: r(t), output: y(t) C(s) P(s) error: e() r(t) y(t) closed-loop transfer-function: Hyr(sD t the closed-loop transfer-function be Hyr(s) Y (s) R(s) Let the transfer-function of the plant be P(s) 10 s (s 1) (s 5) The open-loop transfer-function is G(s) P(s) C(s) DESIGN OBJECTIVES: Find a controller C(s) such that the following are satisfied i) The closed-loop system is stable. ii) The steady-state error ess due to a unit-ramp input r(t)...
Problem 1: (20 From a given Nyquist plot, find Gain Margin (dB) and Phase Margin () a)-0 i -0.5 300
Problem 1: (20 From a given Nyquist plot, find Gain Margin (dB) and Phase Margin () a)-0 i -0.5 300
6 and controller C(s), as shown in the Consider a unity-feedback control system with plant G(s)- following figure. Reference Error Controller Plant r(t) e(t) u(t) y(t) C(s) G(s) [5] (a) Determine the poles, zeros, order, type, relative degree, and de gain of the plant G(s) and show [5] (b) Can a P controller C(s)Kp stabilize the plant G(s)? If so, find the values of Kp that are [4] (c) Show using the Final Value Theorem that the system with the...
PD Controller Design 1 For the closed loop system shown, and given G(s) 35.20 s2+ 0.99 s+ 11.00 Design a PD Controller i.e. where C(s)-Kp + Kds to satisfy the following specifications t 0.03 s ts,1%-020 s K3 of 4 ( Qref Ω0ut C(s) plant control Part A-P Gain ▼ Find the P gain (i.e. Kp ) Submit Previous Answers Request Answer X Incorrect; Try Again Part B- D Gain Find the D gain (i.e. Kd)
PD Controller Design 1...
R(s) (s+a) Plant (3rd-order system) C(s) Mission Find control system parameters (K, a) Approach Plant modeling Gain and phase margin/ Maximum overshoot/ Bandwidth MATLAB
1472) The plant of a magnetic-gap controller is: Gp(s)=1/((s+f) (S-f)). A controller Gc(s)=K (s+b) (s+c)/s is proposed. Determine the gain K for marginal stability. b=0.20, c=103.00, f=66.50. Determine the gain K for CLGM=10.9 dB. Gp & Gs are in the forward path of unity feedback sys. ans:2 Illat
The Bode plots for a plant, G(s), used in a unity feedback
system are shown in Figure P10.7. Do the following:
Find the gain margin, phase margin, zero dB frequency, 180°
frequency, and the closed-loop bandwidth.
Use your results in Part a to estimate the damping ratio,
percent overshoot, settling time, and peak time.
ANSWERS GIVEN BY PROFESSOR
1. Gain margin = 20dB, Phase margin = 55 deg, Zero dB frequency
= 1rad/s, 180deg frequency = 4.5rad/s, bandwidth (-7dB) closed-loop...
Assignment 3: Frequency Domain Controller Design using Bode-plots 2 Augment the open loop plant G(s) = RS), with sim- ple feedback an a dynamic compensator to meet the following specifications: (a) a cross over frequency of we 3 [rad/sec] (b) a phase margin better than 45. (c) a steady state error when tracking a step input < 5%. in H(s) G(sRecall that Bode plots are applied to the loop gain. out
